SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA3077D010GYZ
Topic ID: id_2002986 Version: 3.4
Date: Jul 7, 2021 3:59:54 PM

Removing the magnet right-hand center cover

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
2	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The right hand top cover is removed.
The right hand bottom cover is removed.

Procedure

Remove three screws securing the right-hand center cover to the magnet.

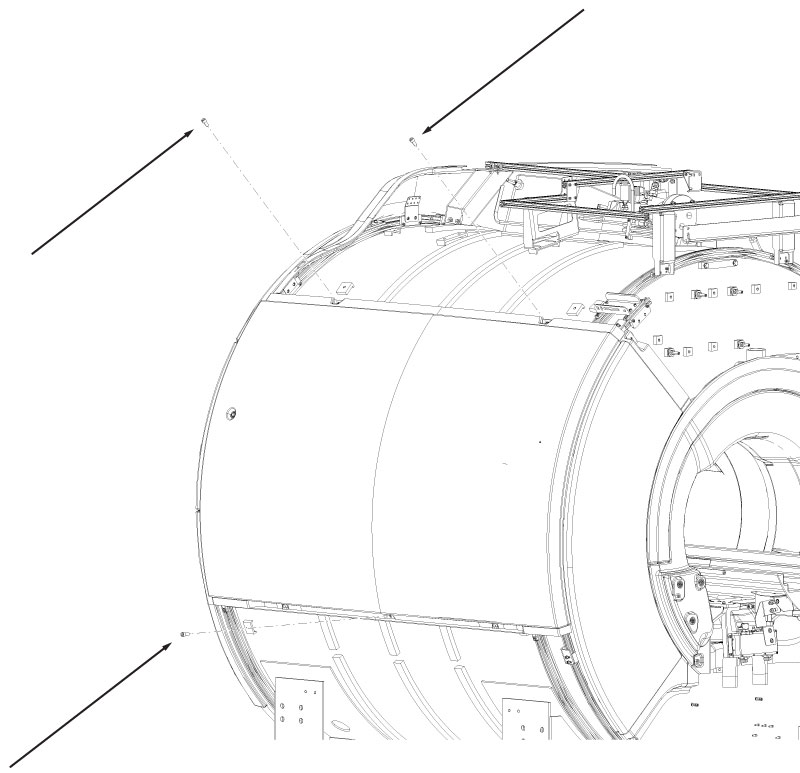

Figure 1. Right-hand center cover screws
Lift the cover up and separate the cover slightly from the magnet.
Disconnect the M3350 cable connector from the enclosure ambient temperature sensor.
Disconnect the M3379 cable connector from the enclosure LED switch J60.
Remove the cover from the magnet.
