Installs the rear bridge inner cover onto the magnet enclosure.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 10 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- Install the rear bridge inner cover onto the magnet enclosure.

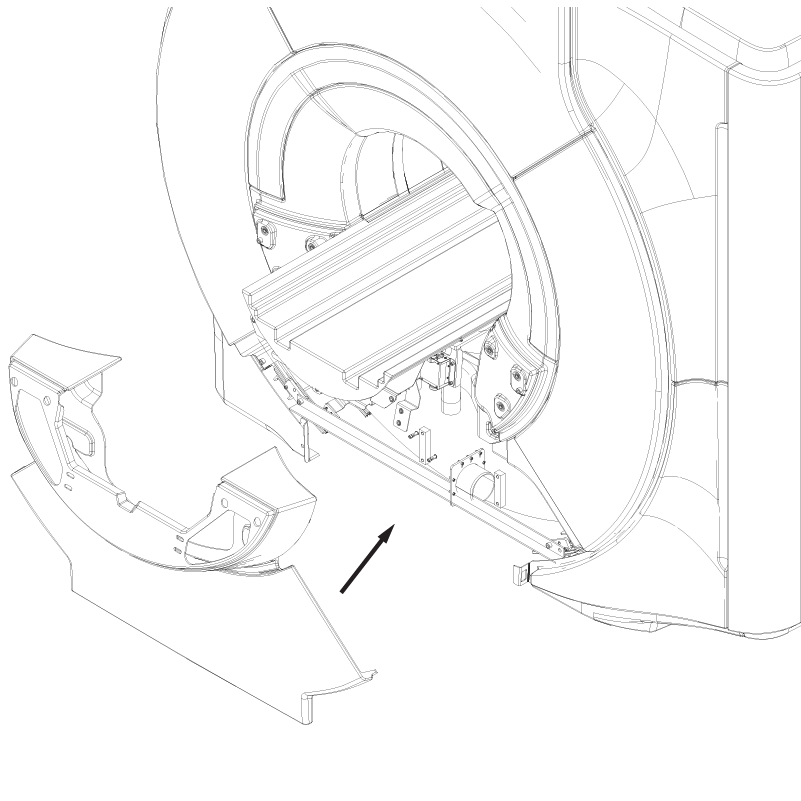

Figure 1. Rear bridge inner cover
- Install six M10 x 25 Socket Head Cap Screws securing the rear bridge inner cover to the magnet enclosure.

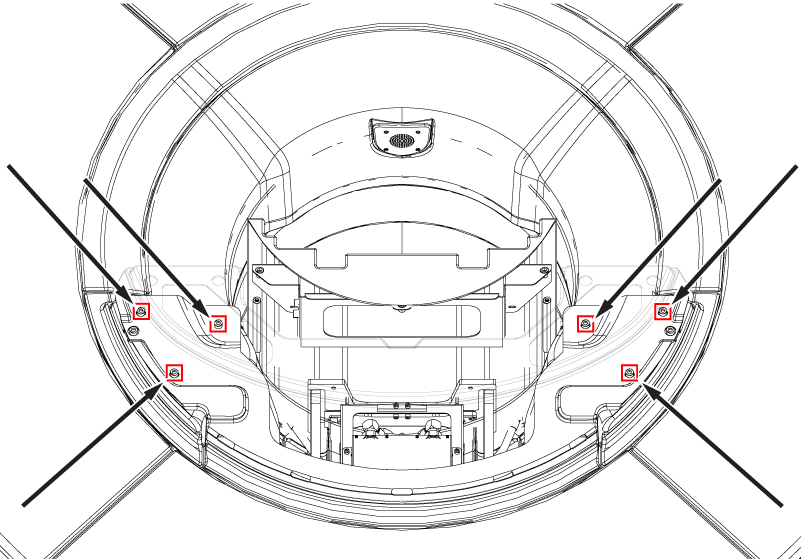

Figure 2. Rear bridge inner cover screws
