Rear cover removal and installation

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Cut-Resistant Gloves	1 Pair	-	-	-
Nonmagnetic Titanium Service Tool Kit, Large Set	1	-	5112581	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Rear Covers	2	-	See FRU Manual	-

Table 4. Safety

Warning

Strong magnetic field

Ferrous materials can become dangerous projectiles in the presence of the magnetic field that the magnet produces.

Do not bring any ferrous tools or equipment into the magnet room.

About this task

This document contains the procedures for Rear Cover removal and Installation. The Rear Covers consist of two halves. The Right Rear Cover must be removed to access the Body Hybrid Module.

Note: Removal of the Rear Covers is not required to replace the Gradient Coil or Rear End Bell.

Procedure

Remove the Rear Pedestal Covers (five screws, two at the top of each cover and one holding both covers at the lower back).
Remove the two Rear Cable Cover screws and slide the cable cover straight up to disengage from the upper hooks.

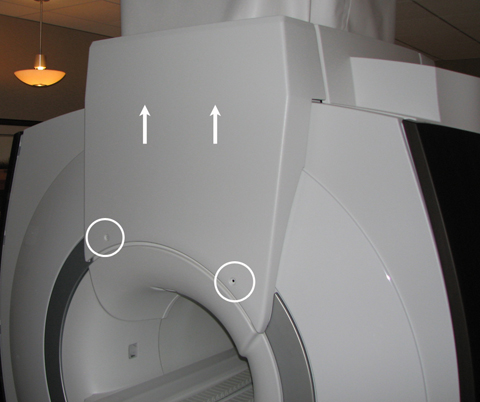

Figure 1. Rear cable cover screw locations
Remove the appropriate Side Covers for the Left or Right Rear Cover (see Side and Top Cover Removal and Installation).
Remove Rear Trim Rings.
Remove the appropriate Rear Cover by removing the screws shown below.

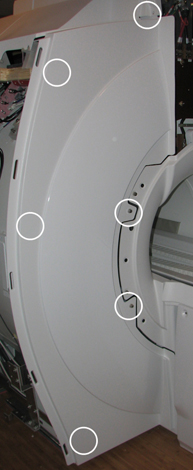

Figure 2. Rear cover screw locations
Reverse the removal procedure to install the Rear Cover. Ensure proper fit.

Finalization

No finalization steps.
