Gradient and RF Body Coil Air Flow Sensor Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable120 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Non-Magnetic Service Tool Kit1-

5112581

-
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Air Flow Sensor1-

FRU number depends on system type. See Field Replaceable Units (FRUs).

-

About this task

This procedure describes the replacement of the gradient and RF body coil air flow sensor.

Procedure

  1. Perform LOTO on the RF amplifier and PEN cabinet. See the MR Service Safety Manual, PN 5452735.
  2. Remove the left side cover to access the SRI. See Side and Top Cover Removal and Installation.
  3. There are two methods to access the RF body coil air flow sensor:
    1. Front cover removal (recommended):
      1. Remove the right side middle and front covers. See Side and Top Cover Removal and Installation.

      2. Remove the right front cover. See Front Cover Removal and Installation.

    2. Front end bell removal:

      1. Remove the split bridge. See Bridge and Longitudinal Drive Belt Replacement.

      2. Remove the front end bell. See Front End Bell Removal and Installation.

  4. Disconnect the RF body coil air flow sensor housing from the scan room interface (SRI).
    Figure 1. Air Flow Sensor Housing with Connector

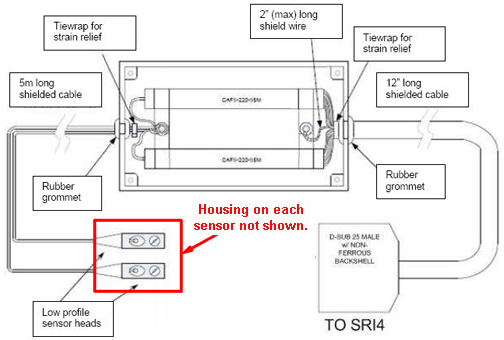

    Figure 2. Air Flow Sensor Assembly Drawing
  5. Locate the RF coil air flow sensor head bracket at approximately the 1 o'clock position on the magnet enclosure.

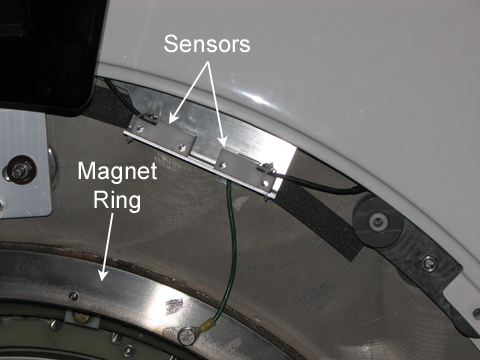

    Figure 3. RF Coil Air Flow Sensor Head Bracket (Front End Bell Removed)
  6. Loosen the two screws securing the sensor head bracket to the display plate.
    Figure 4. Screws Securing Bracket to Display Plate
  7. Remove the sensor head bracket from the display plate, and free the cable from the magnet enclosure.
  8. Carefully disassemble the sensors from the plastic blocks, discard the failed sensor assembly, and reassemble the new sensors into the plastic blocks. The old plastic blocks must be reused, because the sensor FRU does not contain plastic blocks.
    Note: Be careful not to touch the exposed sensor elements.
  9. Route the new cable through the magnet enclosure, reattach the sensor head bracket under the two loosened screws, and retighten them.
    Note:

    Ensure the air flow sensor is perpendicular (90 degrees) to air flow, not in line (zero degrees) to air flow.

  10. Reconnect the RF body coil air flow sensor housing to the SRI.
  11. Replace the covers or end bell in reverse order as listed in Step 2 and Step 3
  12. Remove LOTO. See the MR Service Safety Manual, PN 5452735.

Finalization

  1. Ensure that sensors are operating correctly. See Body Air Flow Functional Check.
