Bore Light Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	10 mins. for rear bore lights, 90 mins. for front bore lights (450w); 10 mins. for rear or front (450w GEM or 750w GEM)	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non-Magnetic Service Tool Kit	1	-	5112581	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Bore Light Assembly	4	-	See FRU Manual	-

Overview

Use this procedure to replace the front and rear bore lights.

Remove the two screws holding the bore light cover to the assembly and end bell.

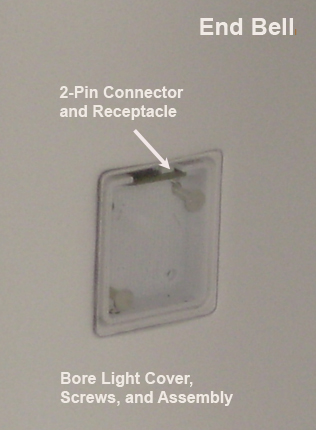

Figure 1. Bore Light Receptacle

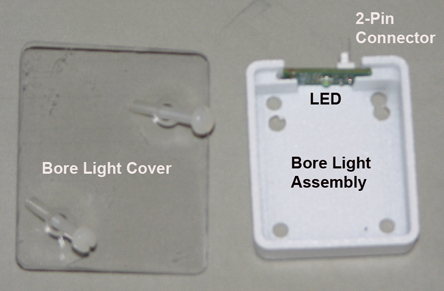

Figure 2. Bore Light Cover and Assembly
(For the front bore light) Carefully pull out the bottom of the bore light assembly and slide the assembly down to disconnect the 2 pin connector from the receptacle.
(For the rear bore light) Carefully pull out the top of the bore light assembly and slide the assembly up to disconnect the 2 pin connector from the receptacle.
Insert the new bore light assembly into the end bell and 2 pin receptacle.
Reattach the bore light cover to the bore light assembly and end bell using the two screws.

Remove LOTO from the PDU. See the MR Service Safety Manual, PN 5452735.
Press the bore light button on the operator control panel to test the bore lights.
