GEM coils introduction

This document describes the 1.5T GEM (Geometry Embracing Method) high-density coils made by General Electric Healthcare, which are receive-only coils. The 1.5T GEM catalog number is M7000LK. The coils included for this catalog number are:

  • 1.5T GEM Head Neck Unit (HNU)

  • 1.5T GEM Anterior Array (AA)

  • 1.5T GEM Posterior Array (PA)

The Peripheral Vascular (PV) coil is optional for the GEM system, and the catalog number is M7000AS.

The performance of any modifications and/or repairs that have not been evaluated and approved by GEHC Coils Engineering may cause the device to be adulterated within the meaning of section 501(h) of the Food, Drug and Cosmetic Act, 21 U.S.C. § 351(h) and is strictly prohibited.

Available GEM Coils

GEM HNU Coil

The GEM HNU coil consists of four parts: Anterior (Face Bill), Posterior, Adaptor Block and Adaptor Block (AB) Bridge. To identify the HNU coil parts, see the illustrations below.

Figure 1. Labels for 1.5T HNU Components

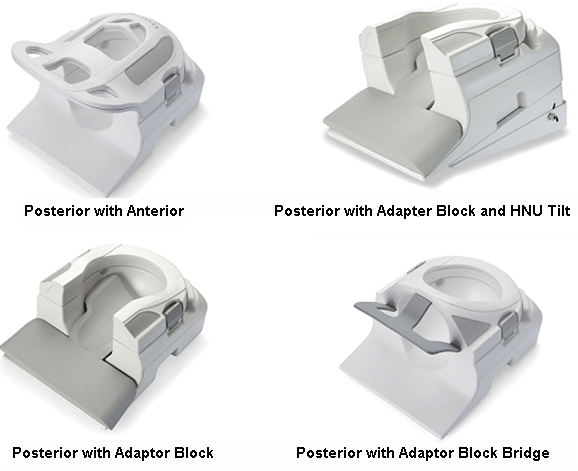

Figure 2. HNU Coil Components
Table 1. Shipping Contents for GEM HNU
Description Part Number Quantity

1.5T GEM HNU Coil (includes mirror assembly)

5372735

1

GEM HNU Phantom Positioner

5405750

1

GEM HNU Tilt

5408135

1

GEM HNU Pad Kit

5417964

1

GEM AA Coil

To identify the GEM AA coil, see the illustrations below. The AA coil should be stored on top of the coil positioner to maintain the curved shape of the AA coil.

Figure 3. Label for 1.5T GEM AA Coil

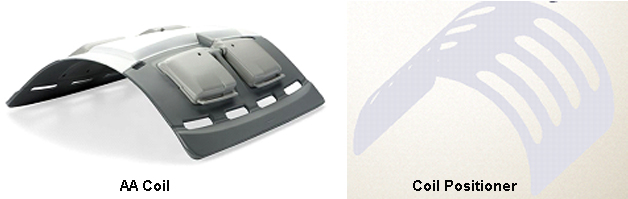

Figure 4. AA Coil Components
Table 2. Shipping Contents and Packing List for GEM AA
Description Part Number Quantity

1.5T GEM AA Coil (includes patient straps)

5391442

1

GEM AA Coil Positioner

5401856

1

GEM AA System Cable Guide

5392791

2

GEM AA Asset Imaging Pad

5408165

1

GEM PA Coil

To identify the GEM PA coil, see the illustrations below. The PA coil is installed in the patient table cradle. (See the installation document or FRU replacement section.)

Figure 5. Label for 1.5T GEM PA Coil

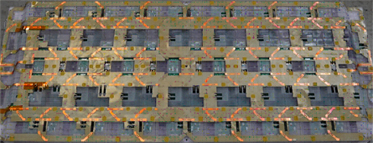

Figure 6. PA Coil
Table 3. Shipping Contents for GEM PA
Description Part Number Quantity
Box 1

1.5T GEM PA Coil

5372733

1

Box 2

GEM PA Phantom Positioner

5405748

1

GEM PV Array Coil (Optional)

To identify the GEM PV coil, see the illustrations below.

Figure 7. Label for 1.5T GEM PV Coil, M7000AS

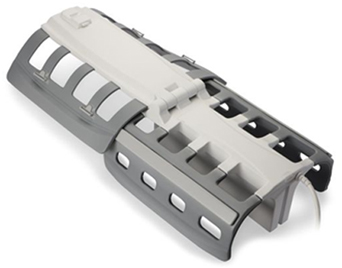

Figure 8. GEM PV Coil
Table 4. Shipping Contents for PV Coil
Description Part Number Quantity

1.5T GEM PV Coil (including patient straps)

5372731

1

GEM PV Phantom Positioner

5405749

1

GEM PV Ramp Pad

5404981

2

Related Documentation

Operator Manual, GE P/N 5375781-2.

Environmental Requirements

Storage Requirements: All coils should be stored in the scan room.

For HNU Coil

  • Dimensions: L 495 mm (19.5 in) x W 388 mm (15.3 in) x H 354 mm (13.9 in)

  • Weight: 8.8 kg (19.4 lb)

For AA Coil

  • Dimensions as stored on the patient positioner: L 556 mm (21.9 in) x W 673 mm (26.5 in) x H 280 mm (11 in)

  • Weight: 6.3 kg (7.9 lb)

For PA Coil and PA Filler

  • Dimensions: L 1288 mm (50.7 in) x W 414 mm (16.3 in) x H 100 mm (3.9 in)

    Note:

    Length includes the system cable.

  • Weight: 6.8 kg (14.9 lb)

For PV Coil

  • Dimensions in folded position for storage: L 697 mm (27.4 in) x W 642 mm (25.3 in) x H 248 mm (9.8 in)

  • Weight: 9.2 kg (20.2 lb)
