SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30E58070GYZ
Topic ID: id_2032569 Version: 1.2
Date: Jun 14, 2021 3:26:02 PM

Replacing the 1-piece bridge trim

Procedure

Remove the bridge trim piece(s) that will be replaced.

Note: the FRU part is one piece of trim. If both pieces of trim need to be replaced, order two pieces.

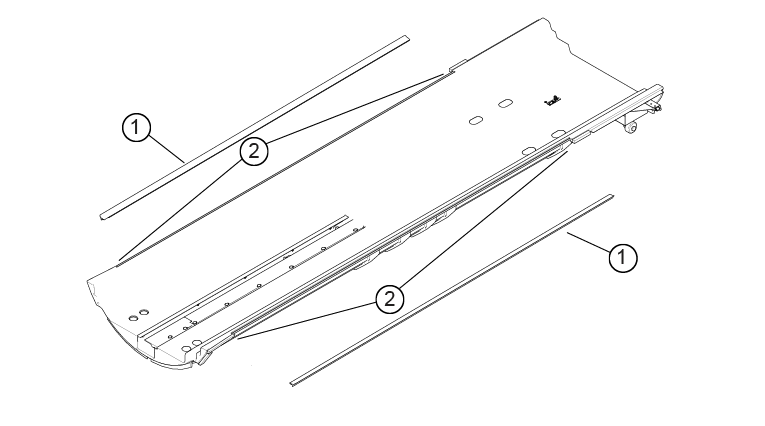

Figure 1. Trim replacement
1 Trim pieces
2 Slot ends
Insert the bridge trim into the slot on the side of the bridge. Align the trim end with the end of the slot.

1	Trim pieces
2	Slot ends
