SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WHA30CB62GYZ
Topic ID: id_2001434 Version: 5.5
Date: Nov 30, 2021 9:01:35 PM

Calibrating transmit/receive dynamic disable

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	3 minutes	30 minutes

About this task

Calibration Wizard is a restricted service tool. Make sure your C-class or M-class service key is installed.

Procedure

(For proprietary mode)
1. On the Common Service Desktop, select Calibration > Install and Calibration Wizard.
2. Click Click here to start this tool.
3. After the calibration wizard starts, select TR Dynamic Disable Calibration from the menu.
4. Review the pre- and post-dependencies, and then click Click here to start this tool.
(For non-proprietary mode)
1. On the Common Service Desktop, select Calibration > TR Dynamic Disable Calibration.
Result

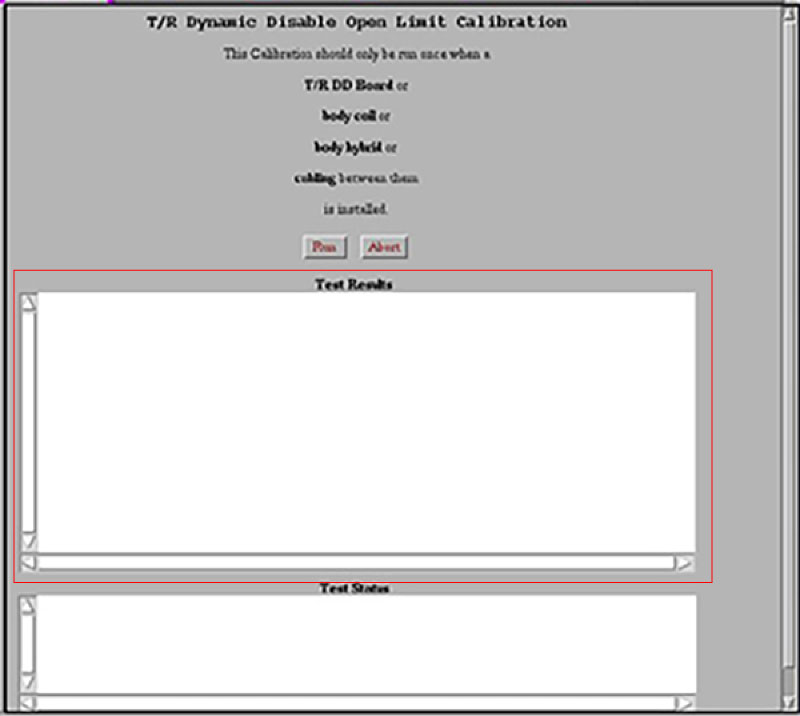

When the calibration is complete, the results will show in the test results text area (see figure below).
Figure 1. Test results window
Do a check scan. See Doing a check scan.
