Dummy Load

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non Magnetic Tool Set	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Dummy Load (Refer to Illustrated Parts)	1	-	-	-

Table 4. Safety

DANGER

STRONG MAGNETIC FIELD!

FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Warning

ELECTROCUTION HAZARD!

DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.

LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to Lockout / Tagout for HDsv 1.5T System Cabinet PDU Main Breaker.	-	-


Last Update	06/14/2012

Remove Rear Pedestal right cover.
Remove one BNC cable.
Remove 2 screws and remove dummy load with bracket.

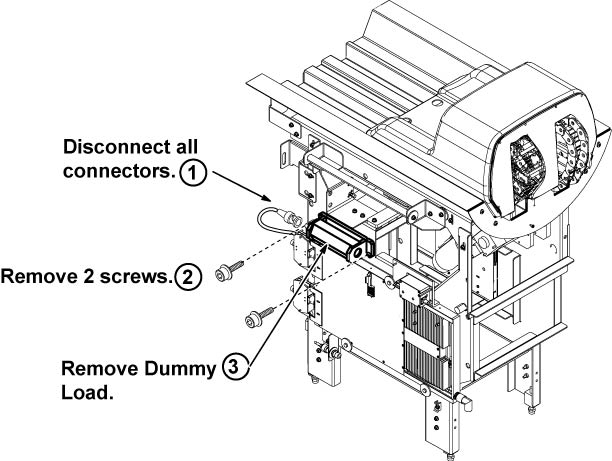

Figure 1. Dummy Load Removal 1
Remove 2 screws and remove one side of fixture plate.
Remove dummy load.

Figure 2. Dummy Load Removal 2
Restore it by the reverse order of the removal.
