1.5T Body T/R SW & Hybrid

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non Magnetic Tool Set	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
1.5T Body T/R SW & Hybrid (Refer to Illustrated Parts)	1	-	-	-

Table 4. Safety

DANGER

STRONG MAGNETIC FIELD!

FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Warning

ELECTROCUTION HAZARD!

DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.

LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to Lockout / Tagout for 1.5T System Cabinet PDU Main Breaker.	-	-

Remove Rear Pedestal right cover.
Remove all cables from 1.5T Body T/R SW & Hybrid.
Loosen 2 screws at the lower fixture. Do not remove the screws.
Remove one screw, spacer and 3 fixtures at the top side.
Tilt and remove 1.5T Body T/R SW & Hybrid.

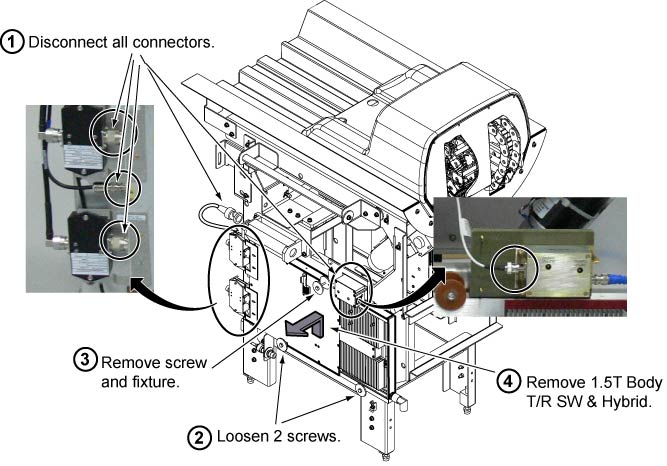

Figure 1. 1.5T Body T/R SW & Hybrid
Remove Isolation Boxes from defective Body T/R SW & Hybrid and install them to new Body T/R SW & Hybrid.

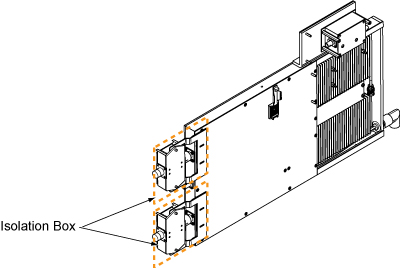

Figure 2. Isolation Box
Restore it by the reverse order of the removal.
