Running mgd_term

Prerequisites

Table 1 Personnel requirements
Required persons Preliminary requirements Procedure Finalization
1 - 2 minutes -

Overview

Start the Cabinet Communication Link (Run mgd_term?) in order to proceed with other tasks. This procedure is simply a prerequisite for other operations.

Procedure

  1. note:

    If the Service Browser or the Utilities button is not available, use the following method:

    Click on the C-shell button.
  2. In the C-shell window, type mgd_term and press Enter

    The prompt should respond with “connected.” Two windows open as shown in Figure 1. Arrange the two C-Shell windows so that they can all be seen at once.

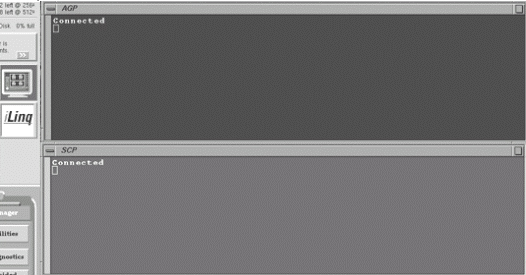

    Figure 1. Making All C-Shell Windows Visible

Finalization

  1. There should now be two windows open.
