1-Wire Network Troubleshooting for Discovery & Optima

Theory of Operation

The 1-wire network provides a secondary means for the system to receive hardware and status information from 1-wire capable components. Some components can be “reset” over the 1-wire network. Table 1 below provides a listing of all 1-wire capable components.

Table 1 1–Wire Capable Components
Component Component Location Connection at PHPS2 1-Wire Reset? (Y/N)
Cronus - GMC Board PGR Cabinet, Cronus J10 Y
NB DTX1 Exciter Pen Cabinet J10 Y
BB (MNS) DTX2 Exciter Pen Cabinet J10 Y
CFB Pen Cabinet J10 Y
PHPS2 Pen Cabinet J12 N
SRPS Pen Cabinet J8 Y
eSRPS Pen Cabinet J8 Y
In-Room Display Controller Module GOC J12 N
PAC Magnet J41 N
SRI Magnet J40 Y
In-Room Display Monitor Magnet J42 N
TDM Magnet J8 N
PEM Module PGR Cabinet J10 Y
iButton GOC J12 N
iButton PGR or Pen Cabinet J12 N
RRx1 (supported by TDM) Magnet J8 N
RRx2 (supported by TDM) Magnet J8 N
1-Wire lines present but not used at Dock Magnet, Dock Thru sub-D filter at J35 N
Rx Distribution Module Magnet J8 N

The PHPS2 module is the central hub of 1-wire communication. All 1-Wire communication paths ultimately connect at the PHPS2. The PHPS2 must be connected and powered on to permit any communication on the 1-Wire network. The PHPS2 is responsible for receiving 1-wire data from all the 1-wire devices and then converting this data to RS422 serial. This serial data is then forwarded from the PHPS2 to the Host PC through the Serial-to-USB converter box located in the rear of the GOC. The direction of information travel is reversed for any data the Host PC forwards to any 1-wire device on the network; that is, the Host PC forwards information to PHPS2, then PHPS2 forwards to 1-wire device.

Troubleshooting

In order to troubleshoot a problem on the 1-Wire Network, the PHPS must be powered on and connected to the Host PC through the USB-to-Serial Converter and Host PC applications software must be running.

  1. Use the 1-Wire Network Diagnostic shown below to test the components on the network.

  2. Select optional ‘Force 1-Wire Reset’ only when it is desired to force a component to reset due to unresponsiveness, etc.

    • Selecting ‘Force 1-Wire Reset’ adds 3 minutes to the test execution time and resets the following devices on the 1-Wire Network: DTX1 Exciter, DTX2 Exciter, CFB, SRI, GMC Board, SRPS, and PEM.

    • Select this only if necessary.

  3. Select optional ‘Display Extended 1-Wire Information’ only if components are reporting failures and it is desired to see details not normally displayed.

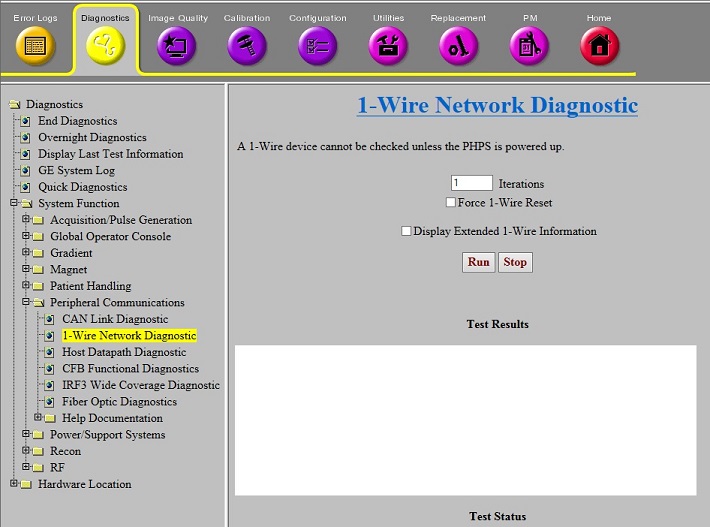

Figure 1. 1–Wire Network Diagnostic

The four possible normal output listings are provided in latter sections of this document. See Table 2 below to determine correct output listing for existing hardware and selected diagnostic options. Any components not communicating are displayed in red font.

Table 2 Output Listing for Existing Hardware and Selected Diagnostic Options
Hardware: “Display Extended 1-Wire Information” selected? See Output listing in:
SRPS and XGA N Table 4
SRPS and XGA Y Table 5
eSRPS and XG2 N Table 6
eSRPS and XG2 Y Table 7

Use the Troubleshooting Matrix in Table 3 to diagnose a failing 1-Wire component.

note:

Remove PHPS2 and SRPS power before removing or connecting any cable.

After a power cycle, it is not necessary to perform a TPS Reset before executing 1-Wire Diagnostic. After the power cycle, some item sub-functions may report failure until next successful TPS Reset. The item can be detected and diagnosed with these sub-functions failing.

Table 3 Troubleshooting Matrix
Symptom Action
Single item not reported, remaining items reported. See Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6.

  1. If reported item is IRD Controller inside GOC (“DIFOCHDv”) then remove jumper cable and connect cables J4 and J5 to IRDC J4, J5.

  2. Locate input and output 1-Wire connections to item and reseat.

  3. If reported item is SRPS then reseat or replace SRPS Control Board.

  4. If reported item is eSRPS then replace.

  5. If reported item is Cronus then reseat or replace GMC Board.

  6. Replace any other single reported item.

Some items reported but multiple items not reported. See Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6. The network is a serial configuration.

  1. Locate connection between PHPS and first reported item and reseat. Remove PHPS2 and SRPS power before reconnecting any cable.

  2. If system is 32ch, can swap entire cable between RRx1 J7 and RRx2 J7 and TDM J1 and J2. Remove PHPS2 and SRPS power before reconnecting any cable.

  3. Can bypass or remove DTX1, DTX2, Cronus, and PEM. Cannot bypass CFB.

  4. Replace item “Not Detected” that is ‘nearest’ to PHPS on 1-Wire network and cable connecting item to network.
All items not reported. See Figure 2 and Figure 3.

  1. Remove power from PHPS. At front of PHPS, remove cables at connections J8 and J10. At magnet room side of Pen Panel, remove cables at connections J35, J41, and J42.

  2. Restore PHPS power. Repeat 1-Wire test (TPS Reset not necessary) and confirm “PHPS BOARD ID Detected”. If OK skip to Step 9.

  3. If not detected, then remove PHPS power. Perform system shutdown. After shutdown, install Emergency Stop bypass jumper to J103 connector at top of PGR Cabinet. Remove cable at J40 on magnet room side of Pen Panel. Restart system and start applications boot.

  4. Repeat 1-Wire test and confirm “PHPS BOARD ID Detected”. If detected, then skip to Step 11.

  5. Remove PHPS2 power. Remove cables at rear of PHPS from J40, J41, J42, J43, and J35. Temporarily remove filter module at PHPS J35.

  6. Restore PHPS2 power and repeat 1-Wire test and confirm “PHPS BOARD ID Detected”.

  7. If detected then remove power from PHPS2. Install cables one at a time until bad cable identified and replaced. Remove PHPS2 power before reconnecting any cable. Proceed to Step 14.

  8. If not detected:

    1. Confirm DIP switches on USB-to-Serial converter in rear of GOC set SW1-ON, SW2-ON, SW3-OFF, SW4-OFF.

    2. Reseat USB connectors at PC and converter, sub-D connector at converter and FJ7, sub-D connector at J12 PHPS2.

    3. If necessary replace converter and PHPS2.

    4. Proceed to Step 14.

  9. Remove PHPS2 power and reconnect cable at PHPS J8. Restore PHPS2 power and perform 1-Wire test. If not detected, skip to Step 12.

  10. Remove PHPS2 power and reconnect cable at PHPS J10. Restore PHPS2 power and perform 1-Wire test. If not detected, skip to Step 13.

  11. Remove PHPS2 power. At magnet room side of Pen Panel, reconnect cables one at a time to J35, J40 (if removed), J41, and J42 until problem returns. See Illustration 3, 4 or 5. Remove PHPS2 power before reconnecting any cable. Open connection at the other end of the cable with problem. If the problem does not change, replace cable. If problem goes away, replace component that connects to cable. Proceed to Step 14.

  12. If problem returns when J8 is connected, remove PHPS2 power and disconnect other end at SRPS/eSRPS J6. Restore PHPS2 power. If problem remains unchanged, replace cable. If problem returns, remove SRPS power. Refer to Illustrations 3, 4 or 5 and continue removing cables, one at a time, at Pen Cabinet Panel Filter, ePDB or TDM. Repeat 1-Wire test until bad item identified. Remove SRPS power before connecting or disconnecting any component or cable. Proceed to Step 14.

  13. If problem returns when J10 is connected, disconnect other end at CFB J18. If problem remains unchanged, replace cable. If problem is gone, refer to Illustrations 1 – 2 and keep disconnecting items (CFB, DTX1, DTX2, Cronus, PEM) and cables and repeating 1-Wire test until problem returns. Proceed to Step 14.

  14. When finished, shutdown system, remove PHPS power, and remove E-Stop jumper from PGR J103. Rreconnect any loose cables. Restore power, boot software, and perform a Goodbye scan.

Figure 2. SRPS, Equipment Room

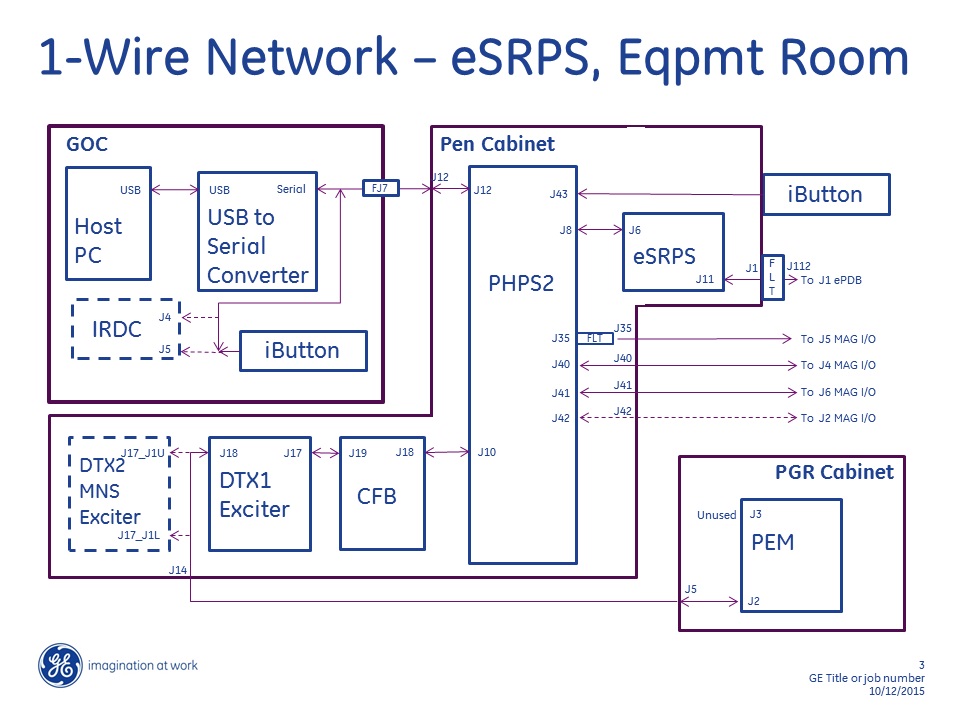

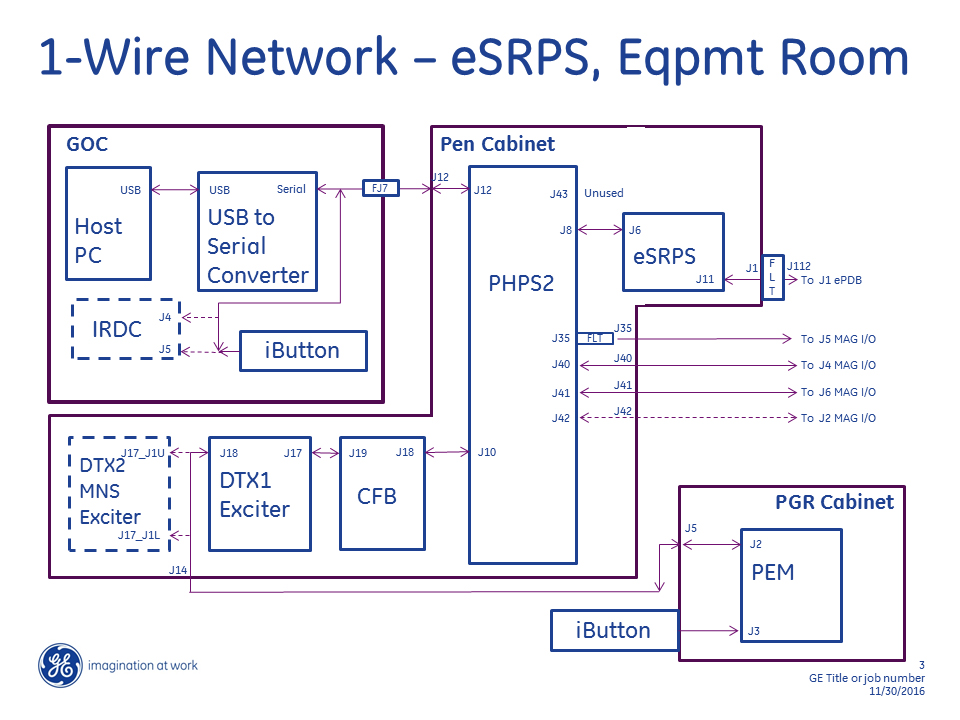

Figure 3. eSRPS, Equipment Room

note:

Remove SRPS power before disconnecting or connecting J51 or J9 cable.

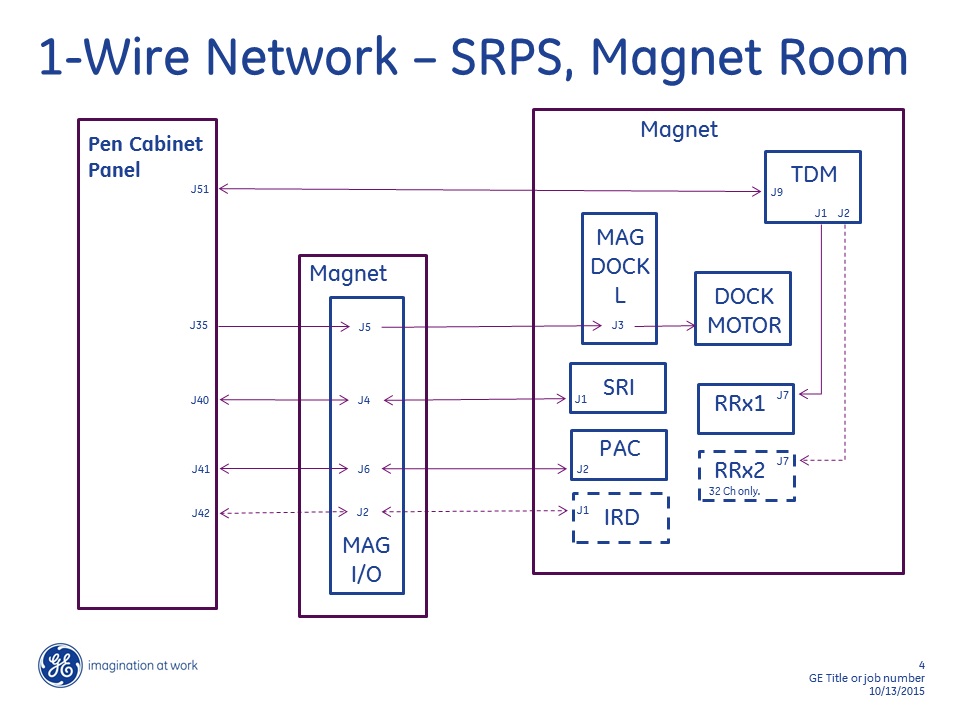

Figure 4. SRPS, Magnet Room

note:

Remove eSRPS power before disconnecting or connecting any cables.

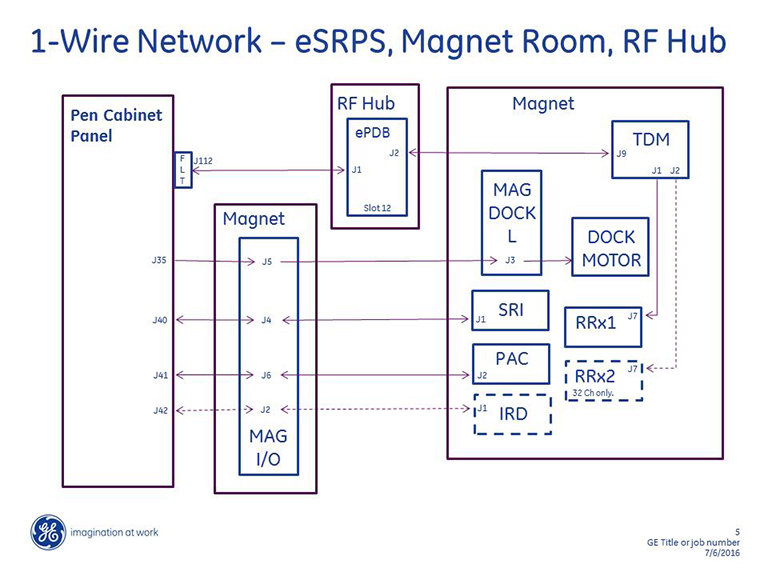

Figure 5. eSRPS, Magnet Room, RF Hub

note:

Remove eSRPS power before disconnecting or connecting any cables.

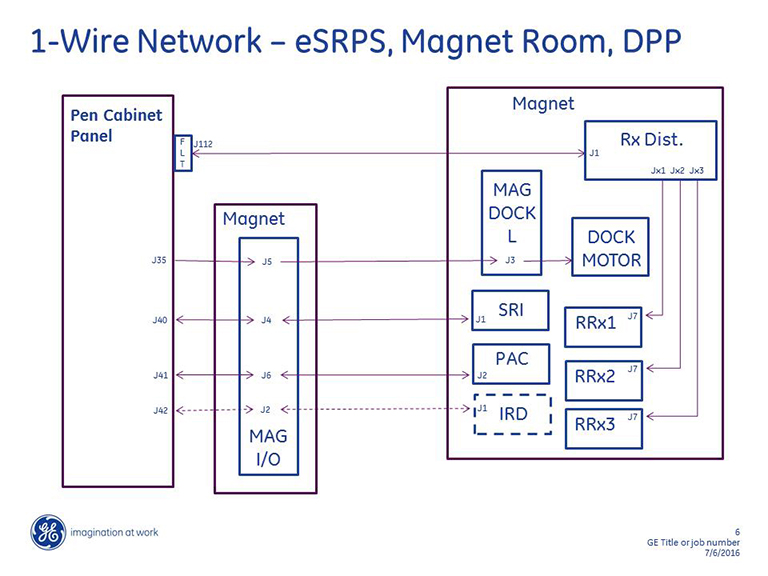

Figure 6. eSRPS, Magnet Room, DPP

Table 4 Normal Output from System with SRPS and XGA hardware
Device Detected/Not Detected Notes
PHPS Board ID          Detected
CFB Cable Present
Table Power Supply OK
          CFB Board ID          Detected
CFB Digital Power OK
CFB CAN Power OK
               CFB I/O          Detected
CFB CAN Node:  3
       NB Exc Board ID          Detected
Exciter Digital Power OK
Exciter Fiber Optic Signal Presence
            NB Exc I/O          Detected
Exciter 80MHz Clock OK
Exciter Fiber Optic Link Up
      Clk Ref Board ID          Detected
Exciter Clock Ref 12V Present
Exciter Clock Ref 80MHz Detected
      XGD GMC Board ID          Detected
XGD GMC Power OK
XGD GMC Ethernet and DVMR Link OK If DVMR Link or Ethernet “Not Ok”, successful TPS Reset required to recover
     XGD GMC Board I/O          Detected
          SRI Board ID          Detected
SRI Digital Power OK
SRI Digital Power Enabled
               SRI I/O          Detected
SRI CAN Fiber Optic Loopback Disabled
          RIB Board ID          Detected
          IRD Board ID          Detected In Room Display Monitor
IRD Power OK In Room Display Monitor
               IRD I/O          Detected In Room Display Monitor
IRD Power OK In Room Display Monitor
IRD USB1 Detected In Room Display Monitor
IRD USB2 Detected In Room Display Monitor
IRD FPGA Initialized In Room Display Monitor
IRD Sync Detected In Room Display Monitor
     SRPS PDB Board ID          Detected
SRPS HS OT Not Faulted
SRPS Fan Run Not Faulted
     SRPS Exc Board ID          Detected
          SRPS Exc I/O          Detected
SRPS Main AC Input Voltage OK
SRPS +5.3V Under Voltage Sense OK
SRPS +5.3V Over Voltage Sense OK
SRPS Exciter Over Voltage Not Faulted
SRPS Exciter Over Current Not Faulted
          SRPS HUB I/O          Detected
SRPS Cable Detected +8.5V
SRPS Hub +8.5V Under Voltage Sense OK
SRPS Hub +8.5V Over Voltage Sense OK
SRPS Hub Over Voltage Not Faulted
SRPS Hub Over Current Not Faulted
          SRPS TCB I/O          Detected
SRPS +3.16V Under Voltage Sense OK
SRPS +3.16V Over Voltage Sense OK
SRPS +5.05V Under Voltage Sense OK
SRPS +5.05V Over Voltage Sense OK
SRPS TDM Over Voltage Not Faulted
SRPS TDM Over Current Not Faulted
 SRPS Cable Detect I/O          Detected
SRPS Exciter Cable Detected
SRPS RF Hub Cables Detected
SRPS TDM Cables Detected
SRPS Severe Fault Not Detected
          SRPS TDM I/O          Detected
          TDM Board ID          Detected
               TDM I/O          Detected
SRPS TDM Input Power OK
SRPS TDM Internal 3.3V Power OK
SRPS TDM Clock Input Present
SRPS TDM Clock Output Present
SRPS TDM Loop Antenna Present
           TDM RRx I/O          Detected
RRx 1 Present
RRx 2 Present 32ch system only
Display I/F Box Board ID          Detected In Room Display Module inside GOC
   Display I/F Box I/O          Detected In Room Display Module inside GOC
Display Interface Power OK In Room Display Module inside GOC
Display Interface DVI Connected In Room Display Module inside GOC
Display Interface Video Timing OK In Room Display Module inside GOC
Display Interface FPGA Done In Room Display Module inside GOC
Display Interface USB Power OK In Room Display Module inside GOC; “Not Ok”, if monitor power off
Display Interface USB Link OK In Room Display Module inside GOC; “Not Ok”, if monitor power off
Display Interface Fiber OK In Room Display Module inside GOC
              GOC Temp      Detected Located at rear of GOC
       Equip Room Temp      Detected Located at top of PGR or Pen Cabinet
Table 5 Normal Extended Output from System with SRPS and XGA
Device Detected/Not Detected Notes
PHPS Board ID          Detected
CFB Cable Present
Table Power Supply OK
Serial Number:  EE0000090B231B1C Characters vary by component.
Board Identifier:  1PHPS2HDV045167111
Acronym:  PHPS2HDV045167111 Characters vary by component.
ID:  045167111 Characters vary by component.
Part Number:  5167111 Characters vary by component.
Barcode:  HL6HP0 Characters vary by component.
Assembly Version:  105 Characters vary by component.
Fab Revision:  5 Characters vary by component.
Lot Code:  26534 Characters vary by component.
Assembly Date:  14SEP2011 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          CFB Board ID          Detected
CFB Digital Power OK
CFB CAN Power OK
Serial Number:  6D000009A9341F1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  CFBHDv Characters vary by component.
ID:  01 Characters vary by component.
Part Number:  5250048 Characters vary by component.
Barcode:  AJEDNT Characters vary by component.
Assembly Version:  H Characters vary by component.
Fab Revision:  4 Characters vary by component.
Lot Code:  NONE Characters vary by component.
Assembly Date:  04NOV2011  NOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
               CFB I/O          Detected
CFB CAN Node:  3
CFB 1-Wire Remote Reset:  1
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
       NB Exc Board ID          Detected
Exciter Digital Power OK
Exciter Fiber Optic Signal Presence
Serial Number:  E800000422AB7F1C Characters vary by component.
Board Identifier:  1NBEXCHDv035250090 Characters vary by component.
Acronym:  NBEXCHDv035250090 Characters vary by component.
ID:  035250090 Characters vary by component.
Part Number:  5250090 Characters vary by component.
Barcode:  AL58DN Characters vary by component.
Assembly Version:  E Characters vary by component.
Fab Revision:  5 Characters vary by component.
Lot Code:  WO#126767313NOV2009 Characters vary by component.
Assembly Date:  13NOV2009
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
            NB Exc I/O          Detected
Exciter 80MHz Clock OK
Exciter Fiber Optic Link Up
Exciter Board 1-Wire Reset:  1
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
      Clk Ref Board ID          Detected
Exciter Clock Ref 12V Present
Exciter Clock Ref 80MHz Detected
Serial Number:  F200000422E27F1C Characters vary by component.
Board Identifier:  1CLKREF
Acronym:  CLKREF
ID:  115250092 Characters vary by component.
Part Number:  5250092 Characters vary by component.
Barcode:  AL574N Characters vary by component.
Assembly Version:  C Characters vary by component.
Fab Revision:  3 Characters vary by component.
Lot Code:  WO#126767410NOV2009 Characters vary by component.
Assembly Date:  10NOV2009 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
      XGD GMC Board ID          Detected
XGD GMC Power OK
XGD GMC Ethernet and DVMR Link OK If DVMR Link or Ethernet “Not Ok”, successful TPS Reset required to recover.
Serial Number:  EB0000098F267F1C Characters vary by component.
Board Identifier:  1XGD_GMC
Acronym:  XGD_GMC
ID:  085250128 Characters vary by component.
Part Number:  5250128 Characters vary by component.
Barcode:  AJENTF Characters vary by component.
Assembly Version:  E Characters vary by component.
Fab Revision:  03 Characters vary by component.
Lot Code:  NOT_APPL
Assembly Date:  19DEC2011 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
     XGD GMC Board I/O          Detected
XGD GMC Board 1-Wire Reset:  1
Spare[2] = 1
Spare[3] = 1
Spare[4] = 1
Spare[5] = 1
Spare[6] = 1
Spare[7] = 1
          SRI Board ID          Detected
SRI Digital Power OK
SRI Digital Power Enabled
Serial Number:  A400000389821B1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  SRI4HDv
ID:  04 Characters vary by component.
Part Number:  5250108 Characters vary by component.
Barcode:  AJ7M9L Characters vary by component.
Assembly Version:  F Characters vary by component.
Fab Revision:  3 Characters vary by component.
Lot Code:  NONE
Assembly Date:  12FEB2009   NOT_APPL Characters vary by component.
Firmware 1 Revision:   NOT_APPL
Firmware 2 Revision:   NOT_APPL
Hardware 1 Revision:   NOT_APPL
Hardware 2 Revision:   NOT_APPL
Additional Information:  NONE
               SRI I/O          Detected
SRI CAN Fiber Optic Loopback Disabled
SRI 1-Wire Reset:  1
Spare[2] = 0
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
          RIB Board ID          Detected
Spare[0] = 0
Spare[1] = 0
Serial Number:  920000037AFC0B1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  RIB3_HDv
ID:  07 Characters vary by component.
Part Number:  6250014 Characters vary by component.
Barcode:  AJ7NB7 Characters vary by component.
Assembly Version:  B Characters vary by component.
Fab Revision:  2 Characters vary by component.
Lot Code:  NONE
Assembly Date:  12FEB2009 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          IRD Board ID          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
IRD Board ID Input 1 is Valid In Room Display Monitor.
Serial Number:  F3000000EC8C031C In Room Display Monitor; vary by component.
Board Identifier:  1 In Room Display Monitor; vary by component.
Acronym:  IRMHDv In Room Display Monitor.
ID:  06 In Room Display Monitor; vary by component.
Part Number:  5133768 In Room Display Monitor; vary by component.
Barcode:  K189012429901 In Room Display Monitor; vary by component.
Assembly Version:  01 In Room Display Monitor; vary by component.
Fab Revision:  In Room Display Monitor; vary by component.
Lot Code: In Room Display Monitor; vary by component.
Assembly Date:  12Mar2008 In Room Display Monitor; vary by component.
Firmware 1 Revision:  NOT_APPL In Room Display Monitor.
Firmware 2 Revision:  NOT_APPL In Room Display Monitor.
Hardware 1 Revision:  NOT_APPL In Room Display Monitor.
Hardware 2 Revision:  NOT_APPL In Room Display Monitor.
Additional Information:  NONE In Room Display Monitor.
               IRD I/O          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
IRD USB1 Detected In Room Display Monitor.
IRD USB2 Detected In Room Display Monitor.
IRD FPGA Initialized In Room Display Monitor.
IRD Sync Detected In Room Display Monitor.
Spare[5] = 1 In Room Display Monitor.
Spare[6] = 1 In Room Display Monitor.
Spare[7] = 1 In Room Display Monitor.
     SRPS PDB Board ID          Detected
SRPS HS OT Not Faulted
SRPS Fan Run Not Faulted
Serial Number:  CA000009A1BF171C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  SRPS_PDB
ID:  12 Characters vary by component.
Part Number:  5231801
Barcode:  AJE5LJ Characters vary by component.
Characters vary by component.
Fab Revision:  NOT_ Characters vary by component.
Lot Code: Characters vary by component.
Assembly Date: Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
     SRPS Exc Board ID          Detected
SRPS Exciter Board ID Input 0 is Valid
SRPS Exciter Board ID Input 1 is Valid
Serial Number:  14000009AB5B1B1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  SRPS_FRU
ID:  13 Characters vary by component.
Part Number:  5300128 Characters vary by component.
Barcode:  AJE8N3 Characters vary by component.
Assembly Version:  F Characters vary by component.
Fab Revision:  4 Characters vary by component.
Lot Code: Characters vary by component.
Assembly Date: Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          SRPS Exc I/O          Detected
SRPS Exciter ID:  0
SRPS Main AC Input Voltage OK
SRPS +5.3V Under Voltage Sense OK
SRPS +5.3V Over Voltage Sense OK
SRPS Exciter Over Voltage Not Faulted
SRPS Exciter Over Current Not Faulted
          SRPS HUB I/O          Detected
SRPS Hub ID:  1
SRPS Cable Detected +8.5V
SRPS Voltage Sense 1-Wire Reset:  1
SRPS Hub +8.5V Under Voltage Sense OK
SRPS Hub +8.5V Over Voltage Sense OK
SRPS Hub Over Voltage Not Faulted
SRPS Hub Over Current Not Faulted
          SRPS TCB I/O          Detected
SRPS TCB ID:  2
SRPS +3.16V Under Voltage Sense OK
SRPS +3.16V Over Voltage Sense OK
SRPS +5.05V Under Voltage Sense OK
SRPS +5.05V Over Voltage Sense OK
SRPS TDM Over Voltage Not Faulted
SRPS TDM Over Current Not Faulted
 SRPS Cable Detect I/O          Detected
SRPS Cable Detect ID:  3
SRPS Fault 1-Wire Reset:  1
SRPS Exciter Cable Detected
SRPS RF Hub Cables Detected
SRPS TDM Cables Detected
SRPS Severe Fault Not Detected
          SRPS TDM I/O          Detected
SRPS TDM Input 0 is Valid
SRPS TDM Input 1 is Valid
SRPS TDM Input 2 is Valid
SRPS TDM Input 3 is Valid
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
          TDM Board ID          Detected
Spare[0] = 0
Spare[1] = 0
Serial Number:  BF000003EE2A7F1C Characters vary by component.
Board Identifier:  1TDM_HDV
Acronym:  TDM_HDV
ID:  155250164 Characters vary by component.
Part Number:  5250164 Characters vary by component.
Barcode:  AL3Z80 Characters vary by component.
Assembly Version:  G Characters vary by component.
Fab Revision:  4 Characters vary by component.
Lot Code:  WO#966633 Characters vary by component.
Assembly Date:  16FEB2009 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
               TDM I/O          Detected
SRPS TDM Input Power OK
SRPS TDM Internal 3.3V Power OK
SRPS TDM Clock Input Present
SRPS TDM Clock Output Present
SRPS TDM Loop Antenna Present
TDM Revision = 0
           TDM RRx I/O          Detected
RRx 1 Present
RRx 2 Present
Display I/F Box Board ID          Detected In Room Display Module inside GOC.
Display I/F Box Board ID Input 0 is Valid In Room Display Module inside GOC.
Display I/F Box Board ID Input 1 is Valid In Room Display Module inside GOC.
Serial Number:  E60000015BAB031C In Room Display Module inside GOC vary by component.
Board Identifier:  1 In Room Display Module inside GOC vary by component.
Acronym:  DIFOCHDv 14 5133768 In Room Display Module inside GOC.
ID:  14 5133768 In Room Display Module inside GOC vary by component.
Part Number:  5133768 In Room Display Module inside GOC.
Barcode: In Room Display Module inside GOC vary by component.
Assembly Version: In Room Display Module inside GOC vary by component.
Fab Revision: In Room Display Module inside GOC vary by component.
Lot Code: In Room Display Module inside GOC vary by component.
Assembly Date: In Room Display Module inside GOC vary by component.
Firmware 1 Revision:  NOT_APPL In Room Display Module inside GOC.
Firmware 2 Revision:  NOT_APPL In Room Display Module inside GOC.
Hardware 1 Revision:  NOT_APPL In Room Display Module inside GOC.
Hardware 2 Revision:  NOT_APPL In Room Display Module inside GOC.
Additional Information:  NONE In Room Display Module inside GOC.
   Display I/F Box I/O          Detected In Room Display Module inside GOC.
Display Interface Power OK In Room Display Module inside GOC.
Display Interface DVI Connected In Room Display Module inside GOC.
Display Interface Video Timing OK In Room Display Module inside GOC.
Display Interface FPGA Done In Room Display Module inside GOC.
Unused[4] = 1 In Room Display Module inside GOC.
Display Interface USB Power OK In Room Display Module inside GOC; “Not Ok”, if monitor power off.
Display Interface USB Link OK In Room Display Module inside GOC; “Not Ok”, if monitor power off.
Display Interface Fiber OK Note: In Room Display Module inside GOC.
              GOC Temp      Detected Located at rear of GOC
       Equip Room Temp      Detected Located at top of PGR or Pen Cabinet
Table 6 Normal Output from System with eSRPS, XG2, and MNS
Device Detected/Not Detected Notes
PHPS Board ID          Detected
CFB Cable Present
Table Power Supply OK
          CFB Board ID          Detected
CFB Digital Power OK
CFB CAN Power OK
               CFB I/O          Detected
CFB CAN Node:  3
       NB Exc Board ID          Detected
Exciter Digital Power OK
Exciter Fiber Optic Signal Presence
            NB Exc I/O          Detected
Exciter 80MHz Clock OK
Exciter Fiber Optic Link Up
      Clk Ref Board ID          Detected
Exciter Clock Ref 12V Present
Exciter Clock Ref 80MHz Detected
          SRI Board ID          Detected
SRI Digital Power OK
SRI Digital Power Enabled
               SRI I/O          Detected
SRI CAN Fiber Optic Loopback Disabled
          RIB Board ID          Detected
          TDM Board ID          Detected
               TDM I/O          Detected
SRPS TDM Input Power OK
SRPS TDM Internal 3.3V Power OK
SRPS TDM Clock Input Present
SRPS TDM Clock Output Present
SRPS TDM Loop Antenna Present
           TDM RRx I/O          Detected
RRx 1 Present
RRx 2 Present
Display I/F Box Board ID          Detected In Room Display Module inside GOC.
   Display I/F Box I/O          Detected In Room Display Module inside GOC.
Display Interface Power OK In Room Display Module inside GOC.
Display Interface DVI Connected In Room Display Module inside GOC.
Display Interface Video Timing OK In Room Display Module inside GOC.
Display Interface FPGA Done In Room Display Module inside GOC.
Display Interface USB Power OK In Room Display Module inside GOC.
Display Interface USB Link OK In Room Display Module inside GOC; “Not Ok”, if monitor power off
Display Interface Fiber OK In Room Display Module inside GOC; “Not Ok”, if monitor power off
              GOC Temp      Detected Located at rear of GOC.
       Equip Room Temp      Detected Located at top of Pen Cabinet.
       BB Exc Board ID          Detected
MNS Exciter Digital Power OK
MNS Exciter Fiber Optic Signal Presence
            BB Exc I/O          Detected
MNS Exciter 80MHz Clock OK
MNS Exciter Fiber Optic Link Up
          PEM Board ID          Detected
PEM Power OK
PEM FPGA OK
         PEM Board I/O          Detected
PEM Software OK
PEM 48V OK
          PAC Board ID          Detected
      PAC PM Fault I/O          Detected
PAC Power Monitor 1.8V Power OK
PAC Power Monitor 3.3V Power OK
PAC Power Monitor -5V Power OK
PAC Power Monitor 5V Power OK
PAC Power Monitor 12V Power OK
PAC Power Monitor -12V Power OK
          PAC FPGA I/O          Detected
PAC FPGA Config Done
PAC FPGA Init Done
PAC Power Monitor 1.2V Power OK
PAC Power Monitor 2.5V Power OK
   eSRPS Ctrl Board ID          Detected
         eSRPS Exc I/O          Detected
eSRPS Exciter Over Voltage OK
eSRPS Exciter Under Voltage OK
eSRPS Exciter Over Current OK
eSRPS MNS Exciter Over Voltage OK
eSRPS MNS Exciter Under Voltage OK
eSRPS MNS Exciter Over Current OK
  eSRPS Ctrl Board I/O          Detected
RF Hub/TDM Power is On
eSRPS AC Input Status OK
eSRPS 12V Voltage OK
eSRPS Control Board Over Temperature OK
eSRPS Control Board Fan OK
eSRPS Power Supply I/O          Detected
eSRPS Exciter 22V Over Voltage OK
eSRPS Exciter 22V Under Voltage OK
eSRPS Exciter 22V Power Supply OK
eSRPS RF Hub 22V Over Voltage OK
eSRPS RF Hub 22V Under Voltage OK
eSRPS RF Hub 22V Power Supply OK
eSRPS Cable Detect I/O          Detected
eSRPS TDM Cable1 Detected
eSRPS TDM Cable2 Detected
eSRPS Exciter Cables Detected
eSRPS MNS Exciter Cable Detected
eSRPS ePDB Cable Detected
          IRD Board ID          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
               IRD I/O          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
IRD USB1 Detected In Room Display Monitor.
IRD USB2 Detected In Room Display Monitor.
IRD FPGA Initialized In Room Display Monitor.
IRD Sync Detected In Room Display Monitor.
Table 7 Normal Extended Information Output from System with eSRPS, XG2, and MNS
Device Detected/Not Detected Notes
 PHPS Board ID          Detected
CFB Cable Present
Table Power Supply OK
Serial Number:  B900000C11F71B1C Characters vary by component.
Board Identifier:  1PHPS2HDV045167111 Characters vary by component.
Acronym:  PHPS2HDV045167111 Characters vary by component.
ID:  045167111 Characters vary by component.
Part Number:  5167111
Barcode:  HL01B8VH Characters vary by component.
Assembly Version:  1 Characters vary by component.
Fab Revision:  5 Characters vary by component.
Lot Code:  5221454 Characters vary by component.
Assembly Date:  1FEB2015 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          CFB Board ID          Detected
CFB Digital Power OK
CFB CAN Power OK
Serial Number:  01000009F871071C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  CFBHDv
ID:  01 Characters vary by component.
Part Number:  5250048 Characters vary by component.
Barcode:  AVW70K Characters vary by component.
Assembly Version:  A Characters vary by component.
Fab Revision:  4 Characters vary by component.
Lot Code:  NONE Characters vary by component.
Assembly Date: Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
               CFB I/O          Detected
CFB CAN Node:  3
CFB 1-Wire Remote Reset:  1
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
       NB Exc Board ID          Detected
Exciter Digital Power OK
Exciter Fiber Optic Signal Presence
Serial Number:  7200000D131D7F1C Characters vary by component.
Board Identifier:  1NBEXCHDv036300668-2 Characters vary by component.
Acronym:  NBEXCHDv036300668-2 Characters vary by component.
ID:  036300668-2 Characters vary by component.
Part Number:  6300668-2 Characters vary by component.
Barcode:  ALJVS6 Characters vary by component.
Assembly Version:  A Characters vary by component.
Fab Revision:  1 Characters vary by component.
Lot Code:  WO#44682585MAY2015 Characters vary by component.
Assembly Date:  5MAY2015 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
            NB Exc I/O          Detected
Exciter 80MHz Clock OK
Exciter Fiber Optic Link Up
Exciter Board 1-Wire Reset:  1
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
      Clk Ref Board ID          Detected
Exciter Clock Ref 12V Present
Exciter Clock Ref 80MHz Detected
Serial Number:  1900000CFF297F1C Characters vary by component.
Board Identifier:  1CLKREF
Acronym:  CLKREF
ID:  116300646-2 Characters vary by component.
Part Number:  6300646-2 Characters vary by component.
Barcode:  ALJXAB Characters vary by component.
Assembly Version:  B Characters vary by component.
Fab Revision:  2 Characters vary by component.
Lot Code:  WO#441991721APR2015 Characters vary by component.
Assembly Date:  21APR2015 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          SRI Board ID          Detected
SRI Digital Power OK
SRI Digital Power Enabled
Serial Number:  E000000BF0AC0F1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  SRI4HDv
ID:  04
Part Number:  6250308 Characters vary by component.
Barcode:  ALFEXS Characters vary by component.
Assembly Version:  C Characters vary by component.
Fab Revision:  3 Characters vary by component.
Lot Code:  WO#3719027 Characters vary by component.
Assembly Date:  15MAY2014ONOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
               SRI I/O          Detected
SRI CAN Fiber Optic Loopback Disabled
SRI 1-Wire Reset:  1
Spare[2] = 0
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
          RIB Board ID          Detected
Spare[0] = 0
Spare[1] = 0
Serial Number:  1A00000BF6A5071C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  RIB3_HDv
ID:  07 Characters vary by component.
Part Number:  6250014-51 Characters vary by component.
Barcode:  ALFH6N Characters vary by component.
Assembly Version:  B Characters vary by component.
Fab Revision:  2 Characters vary by component.
Lot Code:  WO#3719023 Characters vary by component.
Assembly Date:  15MAY2014NOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
          TDM Board ID          Detected
Spare[0] = 0
Spare[1] = 0
Serial Number:  5100000D19947F1C Characters vary by component.
Board Identifier:  1TDM_HDV
Acronym:  TDM_HDV
ID:  156250164-2 Characters vary by component.
Part Number:  6250164-2 Characters vary by component.
Barcode:  ALJ53S Characters vary by component.
Assembly Version:  B Characters vary by component.
Fab Revision:  2 Characters vary by component.
Lot Code:  WO#41468147JAN2015 Characters vary by component.
Assembly Date:  7JAN2015 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
               TDM I/O          Detected
SRPS TDM Input Power OK
SRPS TDM Internal 3.3V Power OK
SRPS TDM Clock Input Present
SRPS TDM Clock Output Present
SRPS TDM Loop Antenna Present
TDM Revision = 1
           TDM RRx I/O          Detected
RRx 1 Present
RRx 2 Present
Display I/F Box Board ID          Detected
Display I/F Box Board ID Input 0 is Valid
Display I/F Box Board ID Input 1 is Valid
Serial Number:  DF000009210D031C Characters vary by component.
Board Identifier:  1DIFOCHDv145133768-2 Characters vary by component.
Acronym:  DIFOCHDv145133768-2 Characters vary by component.
ID:  145133768-2 Characters vary by component.
Part Number:  5133768-2 Characters vary by component.
Barcode:  K189023066200 Characters vary by component.
Assembly Version:  00 Characters vary by component.
Fab Revision: Characters vary by component.
Lot Code: Characters vary by component.
Assembly Date:  16FEB2011NOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
   Display I/F Box I/O          Detected In Room Display Module inside GOC.
Display Interface Power OK In Room Display Module inside GOC.
Display Interface DVI Connected In Room Display Module inside GOC.
Display Interface Video Timing OK In Room Display Module inside GOC.
Display Interface FPGA Done In Room Display Module inside GOC.
Unused[4] = 1 In Room Display Module inside GOC.
Display Interface USB Power OK In Room Display Module inside GOC; “Not Ok”, if monitor power off.
Display Interface USB Link OK In Room Display Module inside GOC; “Not Ok”, if monitor power off.
Display Interface Fiber OK In Room Display Module inside GOC.
              GOC Temp      Detected Located at rear of GOC.
       Equip Room Temp      Detected Located at top of Pen Cabinet.
       BB Exc Board ID          Detected
MNS Exciter Digital Power OK
MNS Exciter Fiber Optic Signal Presence
Serial Number:  97000009B12A7F1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  BBEXCHDv Characters vary by component.
ID:  05 Characters vary by component.
Part Number:  5300118 Characters vary by component.
Barcode:  AL8YGC Characters vary by component.
Assembly Version:  F Characters vary by component.
Fab Revision:  2 Characters vary by component.
Lot Code:  WO#2214514 Characters vary by component.
Assembly Date:  07OCT2011O\NOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
            BB Exc I/O          Detected
MNS Exciter 80MHz Clock OK
MNS Exciter Fiber Optic Link Up
MNS Exciter Board 1-Wire Reset:  1
Spare[3] = 0
Spare[4] = 0
Spare[5] = 0
Spare[6] = 0
Spare[7] = 0
          PEM Board ID          Detected
PEM Power OK
PEM FPGA OK
Serial Number:  3C00000A70B97F1C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  PEM
ID:  01
Part Number:  6250040 Characters vary by component.
Barcode:  HM3C7N Characters vary by component.
Assembly Version: Characters vary by component.
Fab Revision:  J Characters vary by component.
Lot Code:  ASL-NA---- Characters vary by component.
Assembly Date: Characters vary by component.
Firmware 1 Revision:   NOT_APPL
Firmware 2 Revision:   NOT_APPL
Hardware 1 Revision:   NOT_APPL
Hardware 2 Revision:   NOT_APPLNONE
Additional Information:  NONE
         PEM Board I/O          Detected
PEM Software OK
PEM 48V OK
PEM Board 1-Wire Reset:  1
Spare[4] = 1
Spare[5] = 1
Spare[6] = 1
Spare[7] = 1
          PAC Board ID          Detected
PAC Board ID Input 0 is Correct
PAC Board ID Input 1 is Correct
Serial Number:  6700000C0B9A001C Characters vary by component.
Board Identifier:  1PACHDv
Acronym:  PACHDv
ID:  106300224 Characters vary by component.
Part Number:  6300224 Characters vary by component.
Barcode:  HL017TM8 Characters vary by component.
Assembly Version:  F Characters vary by component.
Fab Revision:  6 Characters vary by component.
Lot Code:  12345678 Characters vary by component.
Assembly Date:  02DEC2014ONOT_APPL Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
      PAC PM Fault I/O          Detected
PAC Power Monitor ID 0 is Valid
PAC Power Monitor ID 1 is Valid
PAC Power Monitor 1.8V Power OK
PAC Power Monitor 3.3V Power OK
PAC Power Monitor -5V Power OK
PAC Power Monitor 5V Power OK
PAC Power Monitor 12V Power OK
PAC Power Monitor -12V Power OK
          PAC FPGA I/O          Detected
PAC FPGA ID 0 is Correct
PAC FPGA ID 1 is Correct
PAC FPGA Config Done
PAC FPGA Init Done
PAC 1-Wire Loopback Enable is Disabled
PAC 1-Wire Reset is Disabled
PAC Power Monitor 1.2V Power OK
PAC Power Monitor 2.5V Power OK
   eSRPS Ctrl Board ID          Detected
eSRPS Control Board ID Input 0 is Valid
eSRPS Control Board ID Input 1 is Valid
Serial Number:  9400000D0FAF531C Characters vary by component.
Board Identifier:  1 Characters vary by component.
Acronym:  eSRPS
ID:  12 Characters vary by component.
Part Number:  5402528 Characters vary by component.
Barcode:  ALJHBE Characters vary by component.
Assembly Version:  3 Characters vary by component.
Fab Revision:  NOT_wo#3751360 Characters vary by component.
Lot Code:  wo#3751360 Characters vary by component.
Assembly Date:  15APR2015 Characters vary by component.
Firmware 1 Revision:  NOT_APPL
Firmware 2 Revision:  NOT_APPL
Hardware 1 Revision:  NOT_APPL
Hardware 2 Revision:  NOT_APPL
Additional Information:  NONE
         eSRPS Exc I/O          Detected
eSRPS Exciter ID:  0
eSRPS Exciter Over Voltage OK
eSRPS Exciter Under Voltage OK
eSRPS Exciter Over Current OK
eSRPS MNS Exciter Over Voltage OK
eSRPS MNS Exciter Under Voltage OK
eSRPS MNS Exciter Over Current OK
  eSRPS Ctrl Board I/O          Detected
eSRPS Hub ID:  1
RF Hub/TDM Power is On
eSRPS AC Input Status OK
eSRPS 12V Voltage OK
eSRPS Control Board Over Temperature OK
eSRPS Control Board Fan OK
eSRPS Power Supply I/O          Detected
eSRPS Power Supply ID:  2
eSRPS Exciter 22V Over Voltage OK
eSRPS Exciter 22V Under Voltage OK
eSRPS Exciter 22V Power Supply OK
eSRPS RF Hub 22V Over Voltage OK
eSRPS RF Hub 22V Under Voltage OK
eSRPS RF Hub 22V Power Supply OK
eSRPS Cable Detect I/O          Detected
eSRPS Cable Detect ID:  3
eSRPS TDM Cable1 Detected
eSRPS TDM Cable2 Detected
eSRPS Exciter Cables Detected
eSRPS MNS Exciter Cable Detected
eSRPS ePDB Cable Detected
          IRD Board ID          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
IRD Board ID Input 1 is Valid In Room Display Monitor.
Serial Number:  3B0000091503031C In Room Display Monitor; vary by component.
Board Identifier:  1IRM_DVG In Room Display Monitor.
Acronym:  IRM_DVG In Room Display Monitor.
ID:  065406791 In Room Display Monitor; vary by component.
Part Number:  5406791 In Room Display Monitor; vary by component.
Barcode:  K189023291301 In Room Display Monitor; vary by component.
Assembly Version:  01 In Room Display Monitor; vary by component.
Fab Revision: In Room Display Monitor; vary by component.
Lot Code: In Room Display Monitor; vary by component.
Assembly Date:  16MAR2011CNOT_APPL In Room Display Monitor; vary by component.
Firmware 1 Revision:  NOT_APPL In Room Display Monitor.
Firmware 2 Revision:  NOT_APPL In Room Display Monitor.
Hardware 1 Revision:  NOT_APPL In Room Display Monitor.
Hardware 2 Revision:  NOT_APPL In Room Display Monitor.
Additional Information:  NONE In Room Display Monitor.
               IRD I/O          Detected In Room Display Monitor.
IRD Power OK In Room Display Monitor.
IRD USB1 Detected In Room Display Monitor.
IRD USB2 Detected In Room Display Monitor.
IRD FPGA Initialized In Room Display Monitor.
IRD Sync Detected In Room Display Monitor.
Spare[5] = 1 In Room Display Monitor.
Spare[6] = 1 In Room Display Monitor.
Spare[7] = 1 In Room Display Monitor.
