Optima MR450w BASE 1.5T System Service Methods
5690012-2EN Revision 3
Object ID: 00000018WIA3073CB30GYZ
Topic ID: id_2012604 Version: 5.0
Date: Feb 25, 2021 2:44:35 AM

Replacing the ICN power supply

Procedure

Disconnect the power cable from the ICN power supply.
Toggle the orange locking lever to the center of the supply and then pull the power supply out of the ICN chassis.

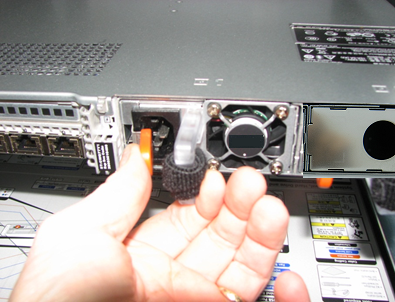

Figure 1. Remove ICN Power Supply
Install the new power supply. Insert until the orange tab clicks into place.
Connect the power cable back to the ICN.
