CAM chassis replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	30 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
ESD Grounding Wrist Strap	1	-	-	-
Phillips Screwdriver	1	-	-	-
Anti-Static Bags	As needed	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
CAM DC Blower	1	-	See applicable FRU manual.	-
AGP2 Board	1	-	See applicable FRU manual.	-
IRF3 Board	1	-	See applicable FRU manual.	-
IXG Board	1	-	See applicable FRU manual.	-
SCP3 Board	1	-	See applicable FRU manual.	-
SRF/TRF Board	1	-	See applicable FRU manual.	-
STIF Board	1	-	See applicable FRU manual.	-
PSE Board	1	-	See applicable FRU manual.	-
Main Power Supply	1	-	See applicable FRU manual.	-
UPM RF Detector Board	2	-	See applicable FRU manual.	-
UPM Processor Board	2	-	See applicable FRU manual.	-
NB Amp IF Board	1	-	See applicable FRU manual.	-

Table 4. Safety

Warning

Electrocution Hazard!

Dangerous voltages exist inside the pgr cabinet when energized.

Perform LOTO for Reconstruction Equipment. See the MR Service Safety Manual, PN 5452735.

Notice

Electrostatic discharge (ESD) can cause permanent damage to electronic components.

Observe the following ESD precautions:

Wear a static wrist strap to ensure that any accumulated electrostatic charge is discharged from your body to the ground.

Create a common ground for the equipment being worked on by connecting the static-free mat, static wrist strap, and peripheral units to that piece of equipment.

Notice

Before powering down the entire CAM chassis, safely power down the ICNs from the VRE power control to prevent corruption of the ICN(s).

About this task

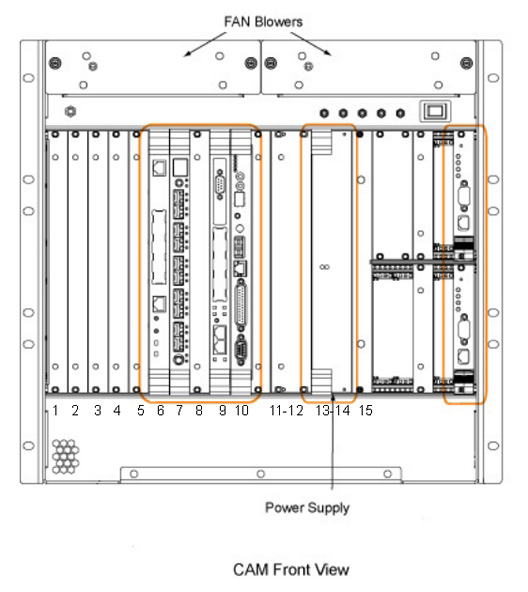

Figure 1. CAM chassis layout (front view)

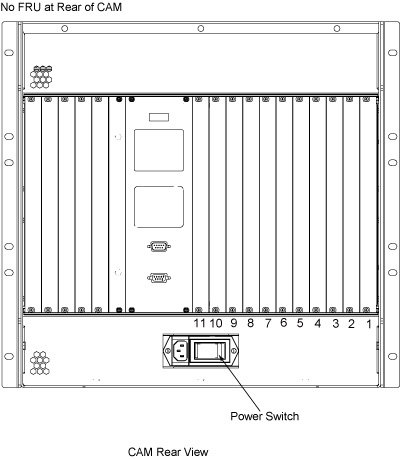

The Combined ASC/MGD (CAM) chassis includes the Multi-Generational Data (MGD) acquisition components and the Amplifier Support Chassis (ASC) components.

The MGD portion of the chassis contains the circuit boards for the pulse generation, system control, and DVMR fiber-optic link communication subsystems. These boards can be easily accessed from the front and rear of the chassis.

The ASC portion of the chassis contains the circuit boards for the amplifier and Universal Power Monitor (UPM) subsystems. These boards can be easily accessed from the front of the chassis.

The power supply modules located in the front of the chassis supply both the MGD and ASC components.

The following removal and insertion procedures are applicable for all the types of circuit boards located within the card rack. The following topics are found in this document:

MGD Circuit Board Removal/Replacement MGD circuit board removal/replacement
ASC Board/UPM Chassis Circuit Board Removal/Replacement ASC board/UPM chassis circuit board removal/replacement
Power Supply Module Removal/Replacement Power supply module removal/replacement
Fan Blower Removal/Replacement Fan blower removal/replacement
CAM Chassis Removal/Replacement CAM chassis removal/replacement

MGD circuit board removal/replacement

Power down CAM chassis

About this task

Before powering down the entire CAM chassis, power down the ICNs from the VRE power control. The VRE system can become corrupted if it loses power when the application software is active.

Procedure

At the host computer, open the Service Browser and select Utilities > Tool Box > VRE > Power Control.
Select Power Off VRE.
Perform LOTO for reconstruction equipment, as described in the MR Service Safety Manual, PN 5452735.

Board positions and identification

Procedure

MGD chassis front board slot assignments are identified below.

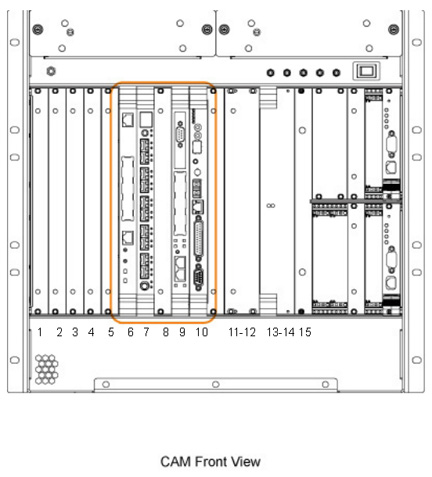

Figure 3. MGD components in CAM chassis - front view

Slot Number(s)	Board Name
Configuration 1	Configuration 2
1-5	Empty slot	Empty slot
6	AGP2 processor board	AGP2 processor board
7	IRF3 board	IXG board
8	Empty slot	ERF (MNS only)
9	SCP3 board	SCP3 board
10 - 11	SRF/TRF	PSE board
11 - 13	Power supply module or empty slot	Empty slot
14 - 15	Power supply module	Power supply module

MGD chassis rear board slot assignments are identified below.

Figure 4. MGD components in CAM chassis - rear view

Slot Number(s)	Board Name
Configuration 1	Configuration 2
1 - 6	Empty slot	Empty slot
7	IRF I/O	Empty slot
8 - 9	Empty slot	Empty slot
10 - 11	STIF board	Empty slot or PSE I/O (optional)
12	Empty slot	Empty slot

Circuit board removal procedure

Procedure

Attach an ESD grounding wrist strap.
Remove the cables (PCI card, 10/100 BaseT, Com1, etc.) from the face of the board.
Loosen the faceplate holding screws. These screws are captive to the faceplate and do not need to be completely removed.

Note: If the board is double wide, there are four faceplate holding screws to remove (SRF/TRF board and power supply boards).
Using your thumb, push in the grey release tabs, and gently pull the extractor tabs located on the top and bottom of the circuit board. The lever action of the ejector disengages the circuit board connections from the chassis.

Note: The AGP and SCP boards do not have release tabs.

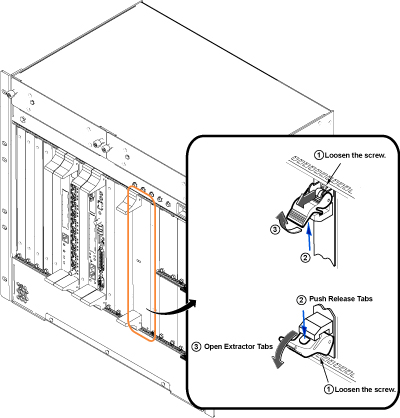

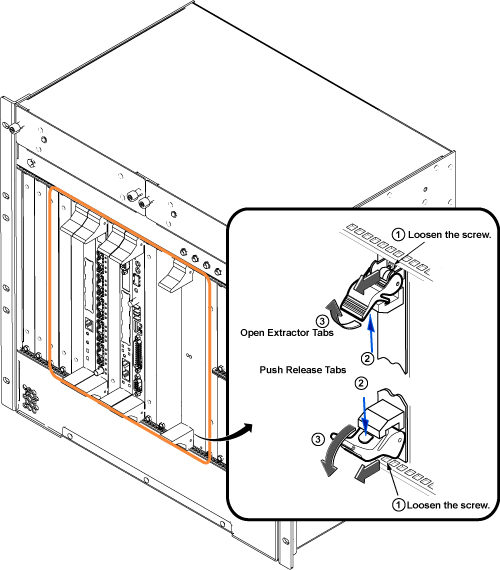

Figure 5. Faceplate release tabs

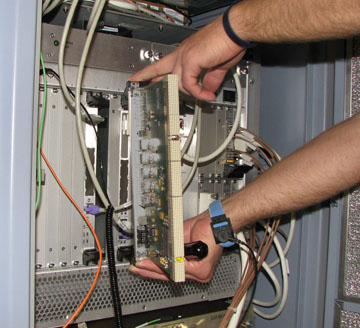

Being careful not to bend or bind the card in any way, slide the circuit board all the way out of the card cage.

Note: Handle the circuit boards only by the faceplate, ejector, and board edges.
Place the card in an appropriate shipping package, or discard if applicable.

Circuit board replacement

Procedure

Remove the packing material from the replacement board, and gently slide the circuit board along the slot guides into the chassis.

DANGER

Possible equipment damage!

Exercise extreme caution when removing and replacing circuit boards.

All boards that have female connectors (shown in Figure 6) must be carefully disengaged, and re-engaged to the male pins located on the backplane chassis. If any of the pins are damaged, the entire chassis needs to be replaced.

Gently engage the circuit board connectors with the backplane.

If the circuit board is not properly engaging the backplane, remove the board and check the connectors for bent or broken pins.
After the board ejectors contact the CAM chassis faceplate, gently push the ejectors into the center of the board. This causes the ejectors to insert the board into the chassis. (Do not use anything other than the ejectors to insert or remove the board from the chassis.)

Tighten, but do not overtighten, the faceplate holding screws to secure the circuit board to the card rack.
Where applicable, reattach the cables to the face of the board.

Restoring system for clinical applications

Procedure

Restore power to the CAM chassis.
Refer to Finalization for checkout and proper operation.

ASC board/UPM chassis circuit board removal/replacement

Power down CAM chassis

About this task

Before powering down the entire CAM chassis, power down the ICNs from the VRE power control. The VRE system can become corrupted if it loses power when the applications software is active.

Procedure

At the host computer, open the Service Browser and select Utilities > Tool Box > VRE > Power Control.
Select Power Off VRE.
Perform LOTO for reconstruction equipment. See the MR Service Safety Manual, PN 5452735.

ASC board positions and identification

Procedure

ASC front board slot assignments are identified below.

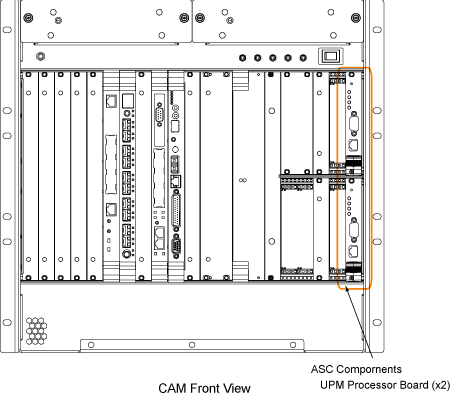

Figure 7. ASC chassis - front view

Circuit board parts are identified below.


Upper slots (nU)		Lower Slots (nL)
Slot number	Board name	Slot number	Board Name
17U - 18U	Optional MNS amplifier board slots	17L - 18L	Narrow band (NB) amplifier interface board slot
19U	Optional MNS detector board slot	19L	Optional MNS detector board slot
20U	Narrow band (NB) detector board slot	20L	Narrow band (NB) detector board slot
21U	UPM processor board slot	21L	UPM processor board slot

Circuit board removal

Procedure

Attach an ESD grounding wrist strap.
Where applicable, remove the cables (sub D, SMB, etc.) from the face of the board.
Loosen the faceplate holding screws. These screws are captive to the faceplate, and do not need to be completely removed.
Using your thumb, push in the gray release tab, and gently pull the extractor tab located on the bottom of the circuit board. The lever action of the ejector disengages the circuit board connections from the chassis.
Notice

When replacing the detector board, the 50 ohm terminators must be taken from the old board and placed on the new board.
Being careful not to bend or bind the card in any way, slide the circuit board all the way out of the card cage.

Note: Handle the circuit boards only by the faceplate, ejectors, and board edges.
Place the card in an appropriate shipping package, or discard if applicable.

Circuit board replacement

Procedure

Remove the packing material from the replacement board, and gently slide the circuit board along the slot guides into the chassis.
Gently engage the circuit board connectors with the backplane.
1. If the circuit board is not properly engaging the backplane, remove the board and check the connectors for bent or broken pins.
2. After the board ejectors contact the CAM chassis faceplate, gently push the ejector into the center of the board. This causes the ejector to insert the board into the chassis. (Do not use anything other than the ejector to insert or remove the board from the chassis.)
Tighten, but do not overtighten, the faceplate holding screws to secure the circuit board to the card rack.
Where applicable, reattach the cables and terminators to the face of the board.

Restoring system for clinical applications

Procedure

Restore power to the CAM chassis.
Refer to Finalization for checkout and proper operation.

Power supply module removal/replacement

Power down CAM chassis

About this task

Before powering down the entire CAM chassis, power down the ICNs from the VRE power control. The VRE system can become corrupted if it loses power when the applications software is active.

Procedure

Note: Beginning in August 2009, the CAM chassis has a one power supply configuration in slots 14/15. Functionality is maintained, and the empty slot is covered with a front panel airflow blocker. If a new CAM chassis FRU is ordered, one power supply (slots 14/15) and an additional front panel and airflow blocker (slots 12/13) are installed in the new CAM unit.
At the host computer, open the Service Browser and select Utilities > Tool Box > VRE > Power Control.
Select Power Off VRE.
Perform LOTO for reconstruction equipment. See the MR Service Safety Manual, PN 5452735.

Power supply module removal

Procedure

Attach an ESD grounding wrist strap.
Loosen the two faceplate holding screws at the top and bottom of the faceplate. These screws are captive to the faceplate, and do not need to be completely removed.
Using your thumb, push in and gently pull the extractor tab located on the circuit board. The lever action of the ejector disengages the supply module connections from the chassis.

Figure 8. Power supply faceplate holding screws
Slide the power supply module all the way out of the card cage.

Note: Handle the modules only by the faceplate, ejectors, and board edges.
Place the module in an appropriate shipping package.

Power supply module replacement

Procedure

Remove the packing material from the replacement module, and gently slide the module into the chassis.
Use the ejectors to insert the module into the chassis.
Tighten, but do not overtighten, the faceplate holding screws to secure the power supply module to the card rack.

Restoring system for clinical applications

Procedure

Restore power to the CAM chassis.
Refer to Finalization for checkout and proper operation.

Fan blower removal/replacement

About this task

Before powering down the entire CAM chassis, power down the ICNs from the VRE power control. The VRE system can become corrupted if it loses power when the applications software is active.

Procedure

At the host computer, open the Service Browser and select Utilities > Tool Box > VRE > Power Control.
Select Power Off VRE.
Perform LOTO for reconstruction equipment. See the MR Service Safety Manual, PN 5452735.
On the front of the CAM chassis are two fan blower assemblies (each is held in place with two thumb screws). Loosen the two thumb screws securing the fan assembly that needs to be replaced.

Figure 9. CAM Chassis Fan Covers
Pull out the defective fan(s).

Note: The fan is 'plug and play' with no cables for ease of removal or insertion.
Slide the new fan into the same slot from which the defective fan was removed, and push it back into the slot until snug.

Note: The connector of the fan automatically aligns itself to the plug of the chassis.
Tighten the two thumb screws to secure the fan assembly.
Restore power to the CAM chassis.
Refer to Finalization for checkout and proper operation.

CAM chassis removal/replacement

Power down CAM chassis

About this task

Before powering down the entire CAM chassis, power down the ICNs from the VRE power control. The VRE system can become corrupted if it loses power when the applications software is active.

Procedure

At the host computer, open the service browser and select Utilities > Tool Box > VRE > Power Control.
Select Power Off VRE.
Perform LOTO for reconstruction equipment. See the MR Service Safety Manual, PN 5452735.

CAM chassis removal

Procedure

Attach an ESD grounding wrist strap.
Remove all the circuit boards and store them in a static-safe location. (Refer to Circuit board removal procedure and Circuit board removal for removal instructions.)
Remove the power supply modules. (Refer to Power supply module removal for removal instructions.)
Remove the six screws that hold the CAM chassis to the cabinet frame.

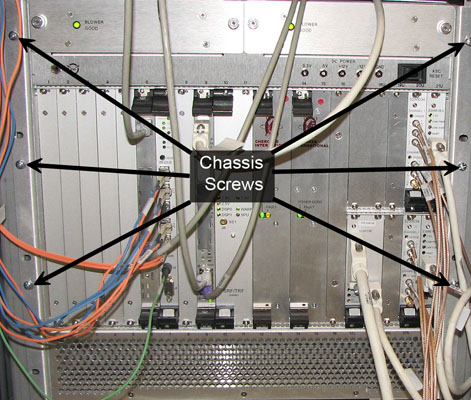

Figure 10. CAM chassis screws
Disconnect all cables.
Slide the CAM chassis out of the PGR cabinet.
Remove the top tray on the CAM chassis by loosening the four screws.

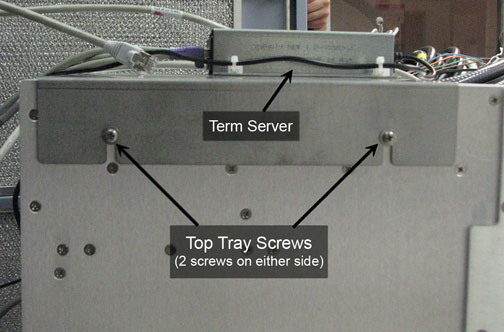

Figure 11. Top tray screws and term server
Disengage the slide rails, and safely place the CAM chassis on a flat surface.
Remove the slide rails and the four screws to remove the bottom tray.
Install the slide rails and bottom tray on the new chassis.

Note: Ensure that the switch on the back of the CAM chassis is ON.

CAM chassis installation

Procedure

Attach an ESD grounding wrist strap.
Slide the CAM chassis into the PGR cabinet.
Install the top tray with the term server, and reconnect the cables.
Replace the six screws that hold the CAM chassis to the cabinet frame.
Install all boards. See Circuit board replacement and Circuit board replacement.
Replace the power supply modules. See Power supply module replacement.
Reattach all cables.

Restoring system for clinical applications

Procedure

Restore power to the CAM chassis.
Refer to Finalization for checkout and proper operation.

Finalization

Procedure

If one of the narrow and (NB) or broad band (BB) interface/detector boards or the UPM processor board has been replaced or swapped, run UPM Calibration and UPM Functional Check – Body Mode and UPM Calibration and UPM Functional Check – Head Mode.
Run a single iteration of Quick Diagnostics (15 minutes) to verify operations.
Run a goodbye scan. See Doing a check scan.
