Optima MR450w BASE 1.5T System Service Methods
5690012-2EN Revision 3
Object ID: 00000018WIA30BDE030GYZ
Topic ID: id_12374026 Version: 1.19
Date: Apr 23, 2020 6:58:18 PM

KASC Boards Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	30 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Standard Tool	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
KASC Boards	1	-	Refer to FRU Manual	-

Table 4. Safety

Warning

Electrocution hazard

Dangerous and or fatal voltages are present in the energized cabinet.

Follow loto steps as given in first section of this document to disable and verify safe voltage levels.

Notice

Attach a grounding wrist strap.

Procedure

Notice

Never turn an ICN ON/OFF from the power button on the front. The ICNs have software running on disk drives that can be corrupted if not shut down properly. Follow the procedure referenced below for removing power to the ICN chassis. Failure to properly power down an ICN can result in premature ICN failure.

From the Common Service Desktop, turn off the ICN(s) (see ICN On/Off Procedure).

Perform LOTO on the reconstruction equipment. See the MR Service Safety Manual, PN 5452735.
In the PEN cabinet, turn off the circuit breaker to the driver module.

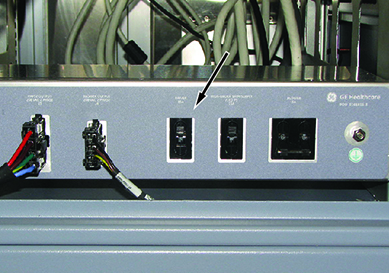

Figure 1. Driver Module Circuit Breaker (in PEN Cabinet)
Open the PGR/ISC covers.
Disconnect connectors from the front panel of the defective board.
Perform the following steps.
1. Loosen 2 screws.
2. Push the release tab.
3. Open the extractor tab.
4. Remove the board.
Note:
The circuit board should be handled using only the faceplate, ejectors, and the edges of the board.

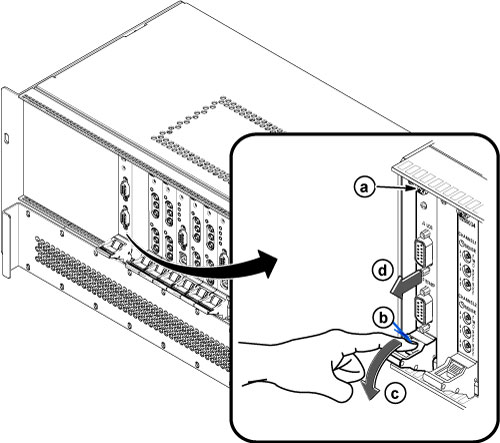

Figure 2. Board Removal
Place the card in an appropriate shipping package, or discard, if applicable.
Remove the terminators (if any) from the defective board and install them to the same connectors on the replacement board.

Note:
New boards do not come with terminators, so you must reuse them from the old board.
Install the new board by reverse order of removal, and restore the PGR/ISC covers.

Finalization

In the PEN cabinet, turn on the circuit breaker to the driver module.
Remove LOTO from the reconstruction equipment. See the MR Service Safety Manual, PN 5452735.
Turn the ICNs on per the ICN On/Off Procedure.
Note:
For the first 3 or 4 minutes, LEDs come on only at the rear of the ICN, next to the power cables. After 3 to 4 minutes, you will hear the ICN fans come on and then the LED at the front of the ICN starts to flash.
Perform a TPS Reset, and then do a check scan to make sure the system operates correctly.
