Remove the table interface (TIF) assembly from the magnet outer electronics.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 5 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- If the table dock is installed, disconnect J1, J2, J3, and J6.
Note: Nothing is connected to J4 for the SIGNA Hero dockable table.
- Disconnect cable M3351 from TIF J5.
Note: M3351 is routed over the top of the TIF.

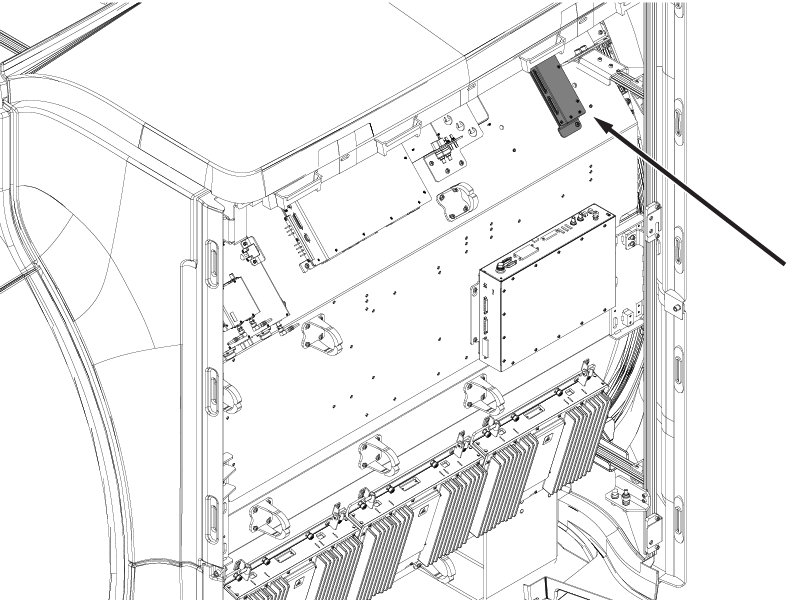

Figure 1. (For AR magnets) M3351 route

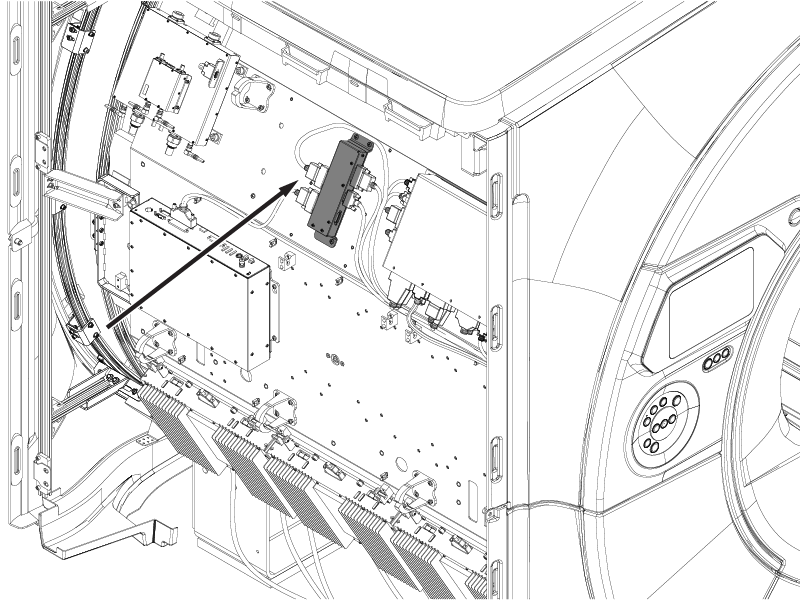

Figure 2. (For UA magnets) M3351 route
- Remove the three M6 x 12 Phillips Head Screws securing the TIF to the side electronics plate.

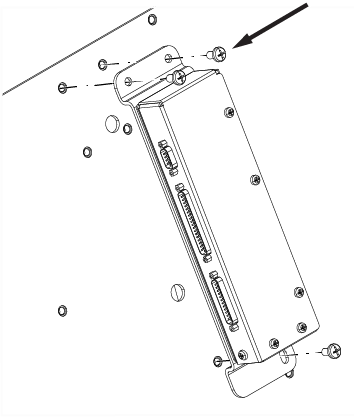

Figure 3. Table interface screws
- Lift the TIF assembly away from the magnet side electronics plate.
