SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30B80810GYZ
Topic ID: id_2005722 Version: 1.5
Date: Jul 4, 2019 8:42:32 PM

Removing the heat exchanger temperature sensor

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Disconnect the cable connector from the heat exchanger temperature sensor.

Notice

Component damage

The heat exchanger temperature sensor cable is highly susceptible to damage.

Use caution when connecting, disconnecting, or working around the heat exchanger temperature sensor cable.

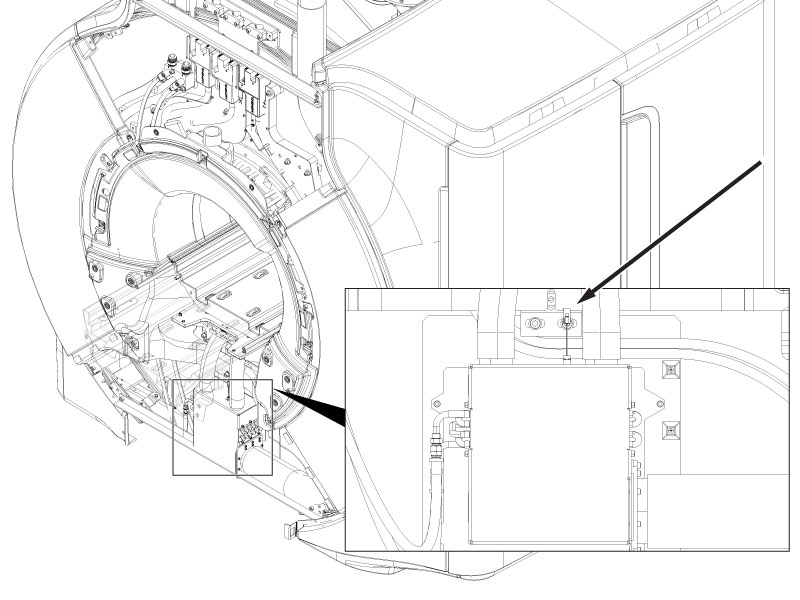

Figure 1. Temperature sensor connector

Remove the heat exchanger temperature sensor as follows:
1. Remove the plastic clip securing the temperature sensor to the heat exchanger.
2. Remove the temperature sensor from the heat exchanger.

  Note: Make sure that the o-ring is with the temperature sensor. Retain the o-ring for installation of the new FRU.

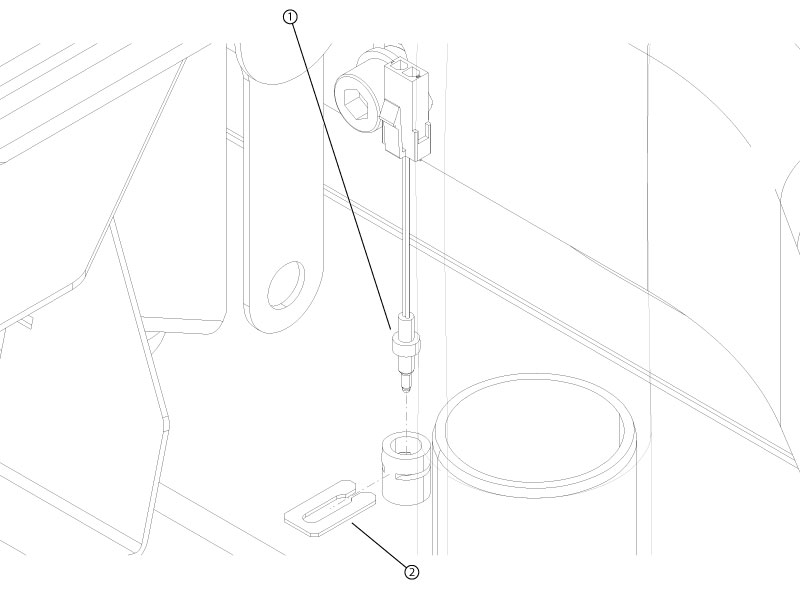

Figure 2. Temperature sensor and clip
1 Heat exchanger temperature sensor
2 Temperature sensor retaining clip
