SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30C80810GYZ
Topic ID: id_2005723 Version: 1.5
Date: Oct 12, 2021 3:27:05 PM

Installing the heat exchanger temperature sensor

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Install the o-ring onto the new temperature sensor.

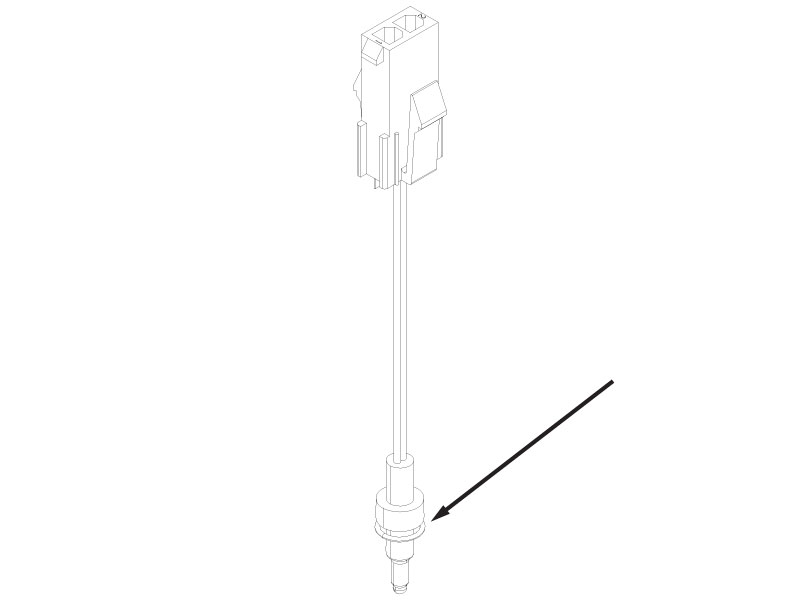

Figure 1. Heat exchanger temperature sensor o-ring
Install the temperature sensor as follows:
1. Install the temperature sensor into the heat exchanger.
2. Install the temperature sensor retaining clip.
Figure 2. Temperature sensor and clip
1 Heat exchanger temperature sensor
2 Temperature sensor retaining clip

Connect the cable connector to the heat exchanger temperature sensor.

Notice

Component damage

The heat exchanger temperature sensor cable is highly susceptible to damage.

Use caution when connecting, disconnecting, or working around the heat exchanger temperature sensor cable.

Figure 3. Temperature sensor connector

Finalization

After LOTO is removed, make sure the sensor is working by examining the temperature logs.
