• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA30D3B230GYZ
  • Topic ID: id_15667044 Version: 1.8
  • Date: Jul 13, 2021 4:27:37 PM

Connector on ICC PW Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable60 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Non Magnetic Tool Set1---
Standard Tool1---
Table 3. Consumables
ItemQuantityEffectivityPart numberManufacturer
-----
Table 4. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Connector on ICC Pen Wall 1-

Refer to FRU Manual

-
Table 5. Safety
Table 6. Required conditions
ConditionReferenceEffectivity

ISC Power must be turned OFF. Refer to Lockout / Tagout for ISC.

--

Procedure

  1. Loosen 10 screws around ICC PW and open it.
  2. Disconnect all cables from both side.

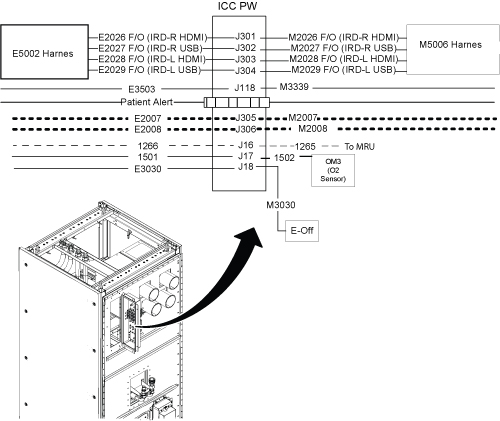

    Figure 1. Cables at ICC PW
  3. Replace the defective connector.

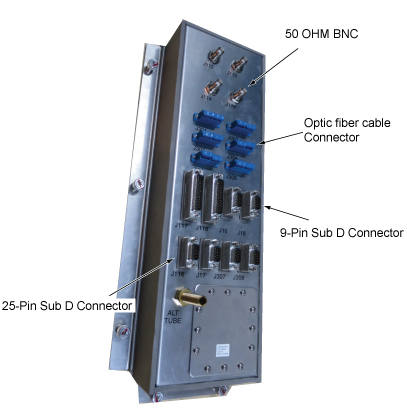

    Figure 2. Connectors on ICC PW
  4. Restore ICC PW and cables by reverse order of removal.

Finalization

  1. Turn on the ISC power. Refer to Removing LOTO - ISC.
  2. Perform check scan.
