Installs the ICE DCPS into the Power Gradient RF (PGR) cabinet.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 5 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- Install the ICE DCPS onto the ICE DCPS tray.

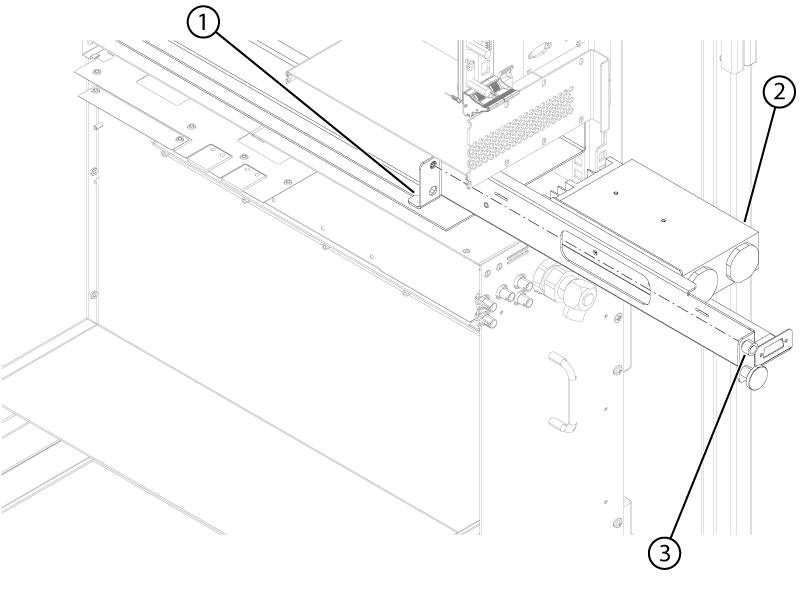

Figure 1. 48V ICE DCPS
| 1 | 48V ICE DCPS tray |
| 2 | 48V ICE DCPS |
| 3 | Captive fastener |
- Tighten the captive fastener securing the DCPS to the tray.
- Connect P3 of the AC power cable from the PDM or power strip to the DCPS.
- Connect P2 of the ICE DC cable to the DCPS.
