Removing the DS Digitized Per Pin Remote Receiver (DPP RRx)
Remove the DS Digitized Per Pin Remote Receiver (DPP RRx) from the magnet outer electronics.
Prerequisites
Personnel requirements
Required persons
Preliminary requirements
Procedure
Finalization
1
-
15 minutes
-
Tools and test equipment
Item
Quantity
Part number
Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set
1 Kit
5113258
-
Nonmagnetic Titanium Service Tool Kit, Large Set
5112581
-
Procedure
Disconnect all connectors from the DS DPP RRx.
Disconnect the cables on the top.

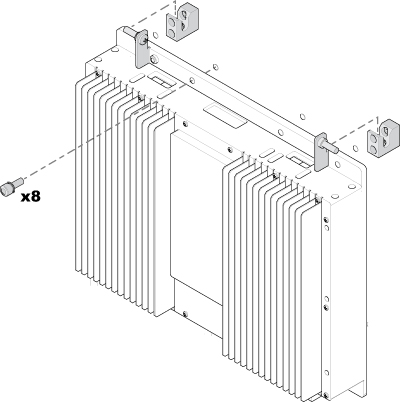

Loosen eight captive screws.
Flip the DS DPP RRx to access the bottom cables.
Disconnect the cables from the bottom.
Note: Handle the fiber optic cables with care. They are very fragile.

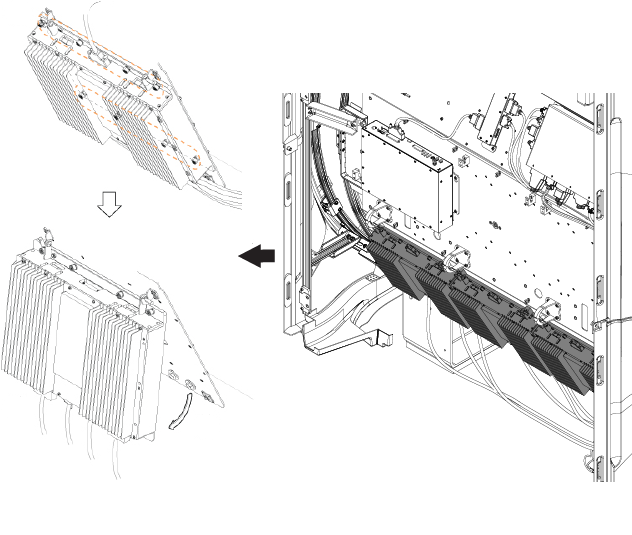

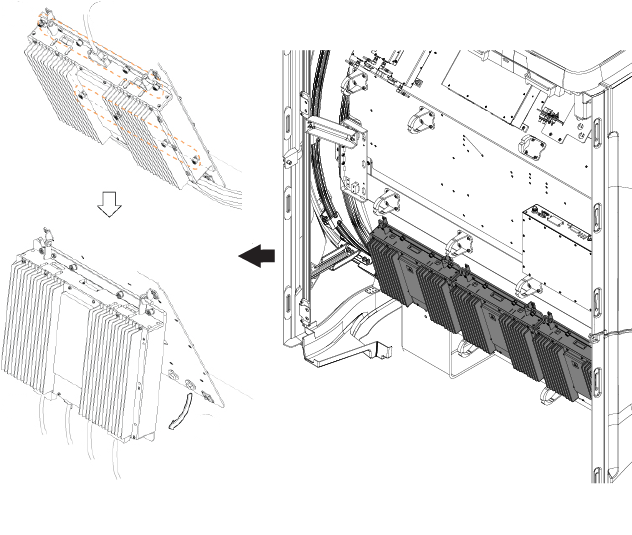

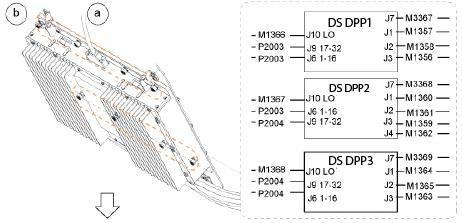

Figure 1. (For AR magnets) Removing the DS DPP RRxFigure 2. (For UA magnets) Removing the DS DPP RRxFigure 3. (For AR and UA magnets) DS DPP Rx cable connections
Note: M1368, M1367, M1366 are not available for DS DPP.
CAUTION
Strong magnetic field
The DS Digitized Per Pin Remote Receiver (DPP RRx) has no ferrous material and will not be attracted to the magnet, but the eddy currents can cause resistance when you pull the DS DPP RRx away from the magnet.
When removing and replacing the DS DPP RRx, keep the receiver as far away from the magnet as possible while moving it.
Note: M1368, M1367, M1366 are not available for DS DPP.
Strong magnetic fieldThe DS Digitized Per Pin Remote Receiver (DPP RRx) has no ferrous material and will not be attracted to the magnet, but the eddy currents can cause resistance when you pull the DS DPP RRx away from the magnet.When removing and replacing the DS DPP RRx, keep the receiver as far away from the magnet as possible while moving it.
