Removing the DS Digitized Per Pin (DPP) Receiver Distributor (Rx Dist)
Remove the DS Digitized Per Pin (DPP) Receiver Distributor (Rx Dist) from the magnet outer electronics.
Prerequisites
Personnel requirements
Required persons
Preliminary requirements
Procedure
Finalization
1
-
15 minutes
-
Tools and test equipment
Item
Quantity
Part number
Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set
1 Kit
5113258
-
Nonmagnetic Titanium Service Tool Kit, Large Set
5112581
-
Procedure
Disconnect all connectors from the DS DPP Rx Dist.
Note: Handle the fiber optic cables with care. They are very fragile.

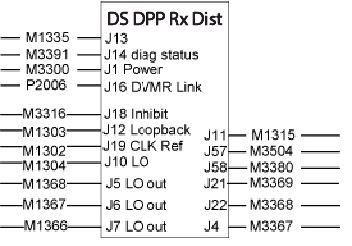

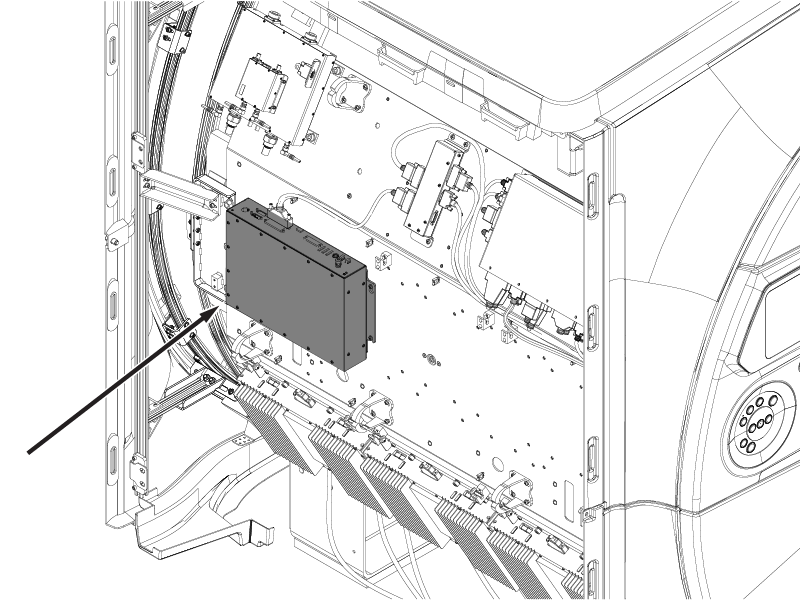

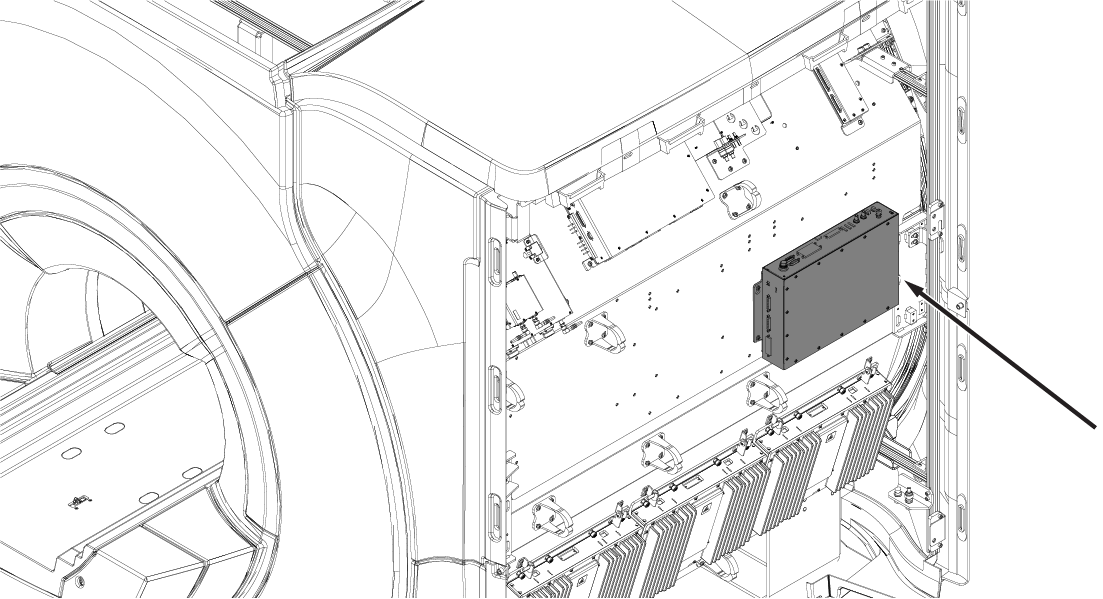

Figure 1. (For AR magnets) DS DPP Rx DistFigure 2. (For UA magnets) DS DPP Rx DistFigure 3. (For AR and UA magnets) DS DPP Rx Dist cable connections
Note: M1366, M1367, M1368, M1304 are not available with DS DPP.
CAUTION
Strong magnetic field
The DS Digitized Per Pin (DPP) Receiver Distributor (Rx Dist) has no ferrous material and will not be attracted to the magnet, but the eddy currents can cause resistance when you pull the DS DPP Rx Dist away from the magnet.
When removing and replacing the DS DPP Rx Dist, keep the receiver as far away from the magnet as possible while moving it.

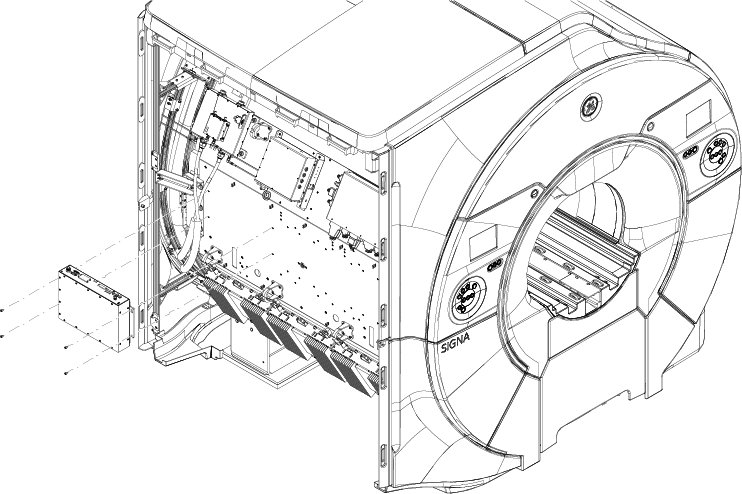

Loosen four screws and remove the DS DPP Rx Dist.
Note: The screw holes for attaching the DS DPP Rx Dist are a keyhole shape or slotted so it is not necessary to remove the four screws. Just loosen them.
Note: M1366, M1367, M1368, M1304 are not available with DS DPP.
