Installing the rear bridge cover

Procedure

Install the rear bridge cover.

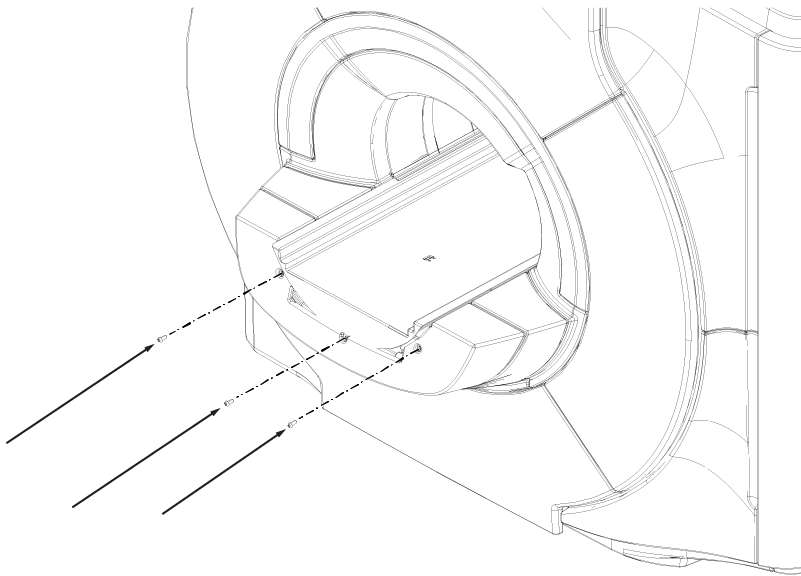

Figure 1. Rear bridge cover
Install the three M10x20 screws to secure the rear bridge cover to the rear bridge.
