Table Top Height Adjustment

Prerequisites

Personnel requirements
Required persons Preliminary requirements Procedure Finalization
1 - 10 minutes -
Tools and test equipment
Item Quantity Part number Manufacturer
Non-ferrous standard head screwdriver 1 - -

Overview

This procedure provides instructions on how to adjust the height of the table top.

Procedure

  1. Dock the patient table.
  2. Use the UP foot pedal to raise the patient table to full up position, and move the cradle completely into the magnet bore to expose the table top height adjustment screw.

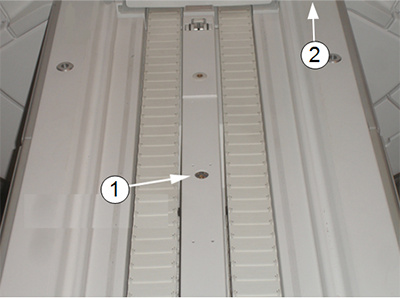

    Figure 1. Table top height adjustment screw location

    1 Table top height adjustment screw
    2 Front of table
  3. Use a standard head screw driver to remove the cover plug.
  4. Adjust the screw to set the table top height equal to the bridge height.

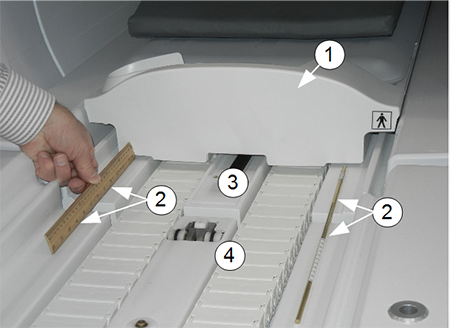

    Figure 2. Rolling surface on bridge and table

    Item Description
    1 Cradle
    2 Rolling surface (path) on left and right sides of bridge and table top. Straight edges are used to show the paths.
    3 Bridge
    4 Table
  5. Replace the cover plug.

Finalization

  1. Dock the table.
  2. Confirm that the cradle release functions properly.
  3. Confirm that the LPCA connects to the cradle and that the cradle can move in and out of the bore.
