SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA309F0520GYZ
Topic ID: id_2007291 Version: 1.9
Date: May 28, 2020 4:49:12 PM

Removing the laser bracket assembly

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Replacement parts
Item	Quantity	Part number	Manufacturer
Laser Bracket Assembly	1	5720128	-

Procedure

Disconnect the cable connector from the laser bracket assembly connector.

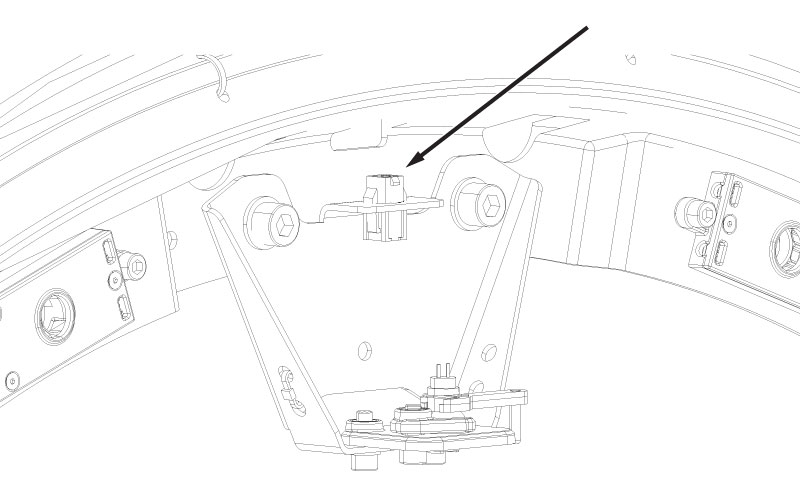

Figure 1. Laser bracket assembly connector
Remove two M10 Flat Washers (2000-M10-17) and two M10 x 25 Socket Head Cap Screws (1000-M10C025-33) securing the laser light bracket to the front cover.

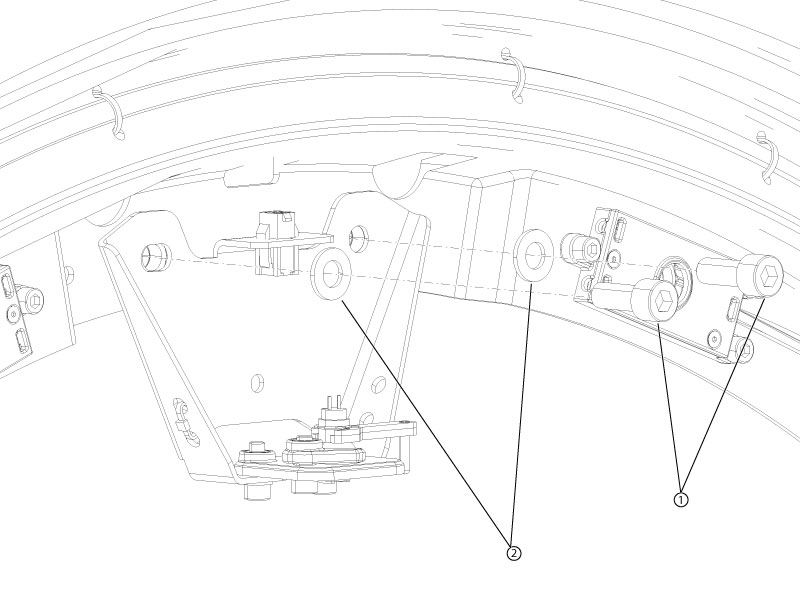

Figure 2. Laser bracket assembly hardware
1 Screws
2 Washers
Remove the laser bracket assembly.

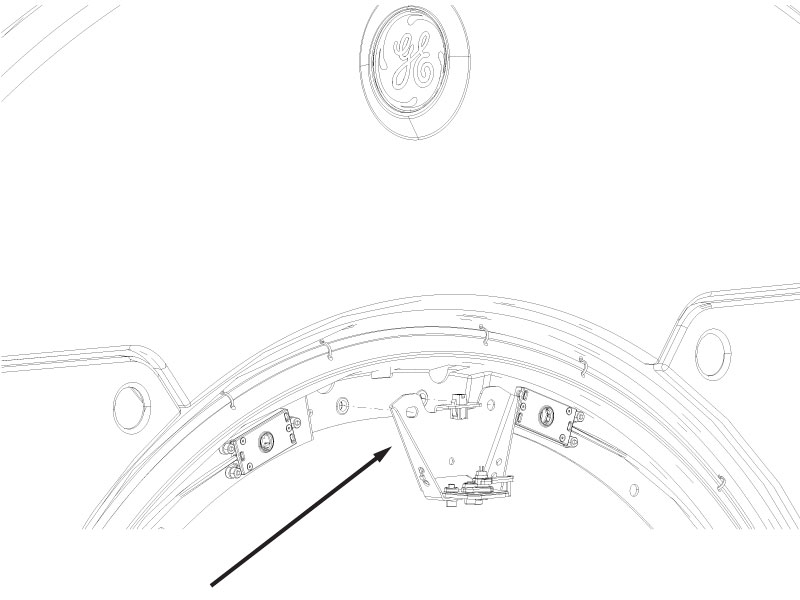

Figure 3. Laser bracket assembly

1	Screws
2	Washers
