Installing the host computer - Dell T5820

Install the host computer.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-30 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Screwdriver1--
ESD Strap1--
Consumables
ItemQuantityPart numberManufacturer
GE Equipment Maintenance Sticker
Note: Not needed for hard drive or DVD replacement procedures.
15661793-
Replacement parts
ItemQuantityPart numberManufacturer
Dell T5820 MR Global Host W-2123 64GB Nvidia SSD18780011-02-
GOC Dust Filter for T582025793940-
Adhesive-Backed Velcro, 2 x 4 inches146-317475P2-

Procedure

  1. Carefully put the computer back inside the GOC brackets. Secure the brackets as needed.
  2. Attach and tighten the strap(s) to secure the computer.
  3. Connect the computer cables and make sure all connections to the GOC and host computer are secure.

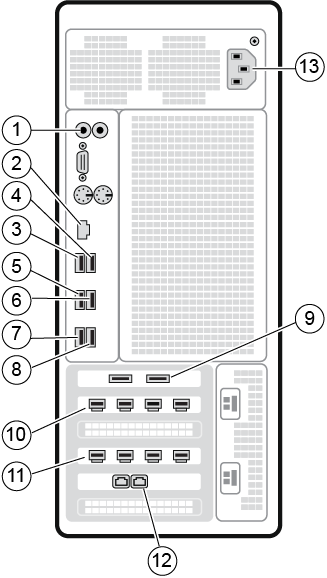

    Figure 1. Dell T5820 cable configuration
    Table 1. Dell T5820 cable configuration
    ItemRun #Description
    1NALine In/Out cable to GOCAA J12/14
    2NASite network Ethernet cable (see note below)
    3NAMouse USB cable
    4E3048Keyboard USB extender cable to keyboard USB cable
    5E3037ICE USB extender cable to ISC top I/O USB ICE cable
    6NAUSB-RS422 Converter USB cable to USB-RS422 Converter
    7P5006 (P2027)USB cable to IRD-R
    8P5006 (P2029)USB cable to IRD-L
    9E3049USB cable to PDU J2 and Cabinet Monitor
    10P5006 (P2026 & P2028)Mini DP to DP Dongle for port 1 to IRD DP AOC cables P2026

    and

    Mini DP to DP Dongle for port 2 to IRD DP AOC cables P2028
    11E3046Mini DP cable to Host LCD Monitor
    12E3011ETH1 (right port) cable to ISC top I/O panel
    13NAPower cable
  4. Remove the dust filter and Velcro strips from the old computer and examine them for reusability.

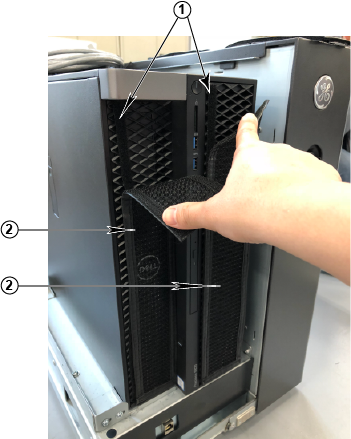

    Figure 2. Dust filter attachment
    1Velcro strips
    2Dust filter
  5. Install the Velcro strips on the computer.
    • If you can reuse the Velcro strips, install them.
    • If you cannot reuse the Velcro strips, install a new set.
  6. Install the dust filter.
    • If you can reuse the dust filter from the old computer, then clean and install it.
    • If you cannot reuse the dust filter, then install a new one.
  7. Connect the short ground lead that connects the left side panel to the GOC main chassis at the center of the lead.
  8. Secure the left side panel to the GOC.
  9. Get a GE equipment maintenance sticker, and write today's date on the sticker. Put the sticker on the GOC where it is easily visible.
    Note: When replacing the hard drive or DVD drive, a maintenance sticker is not required.
