Installing BrainWave On Console hardware
Interconnect diagrams
note: If necessary, BrainWave components can obtain power from the outlets inside the GOC. To get access to the outlets, you must remove the right side of the GOC cover.
note: Tape up the BNC connector from the Y-cable and leave it unplugged.
note: The cable between Cedrus Lumina Response Controller and the PEN panel may be short. If it is too short, use the provided cable (5778183) as needed.

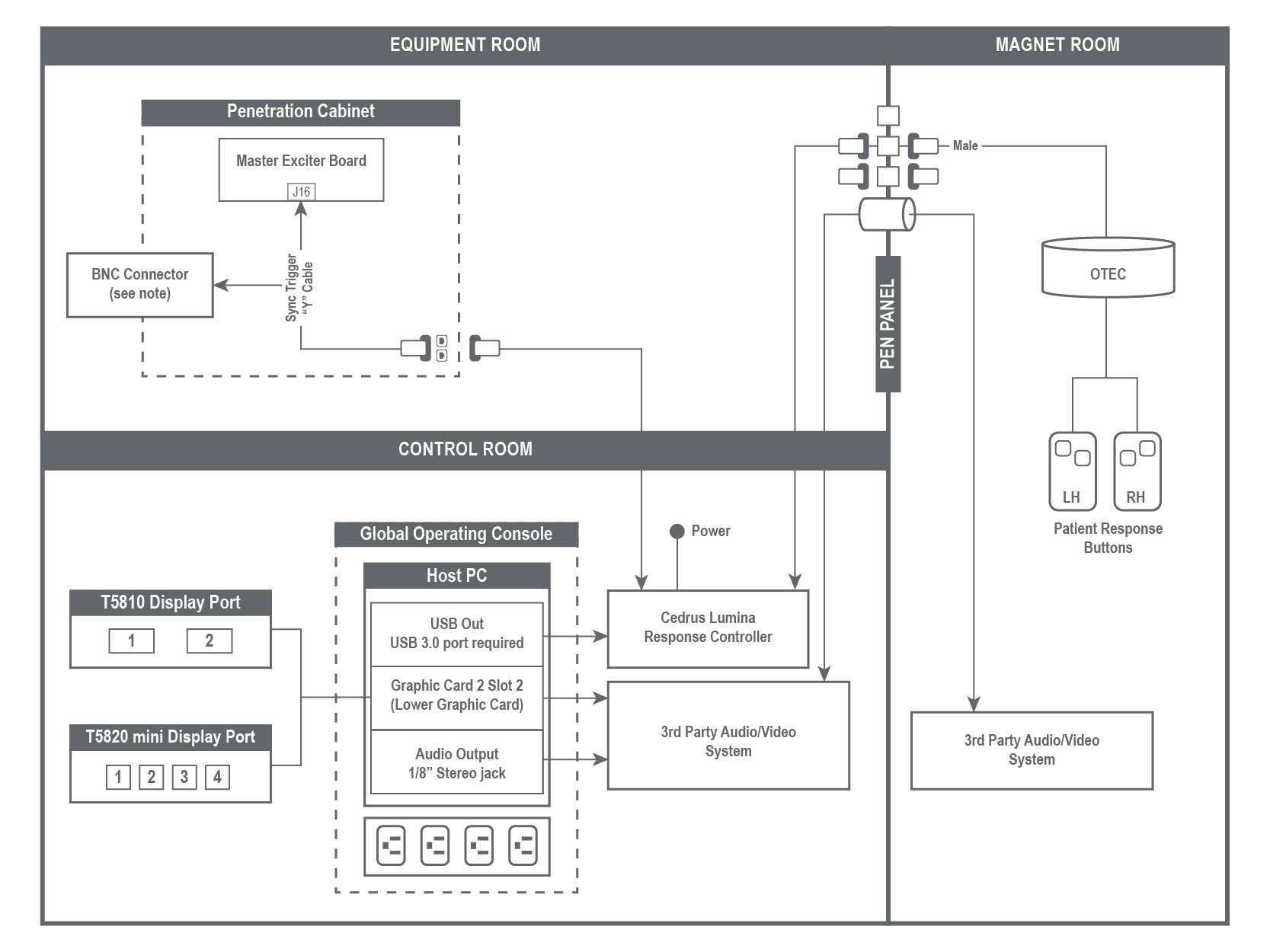

Figure 1. Interconnect diagram
