Removes the right-hand cover from the dockable table base.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 5 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
| Required conditions |
|---|
| The bellows cover is raised. |
Procedure
- Undock the table and move it away from the magnet.
- Loosen the screw securing the front of the base side cover.

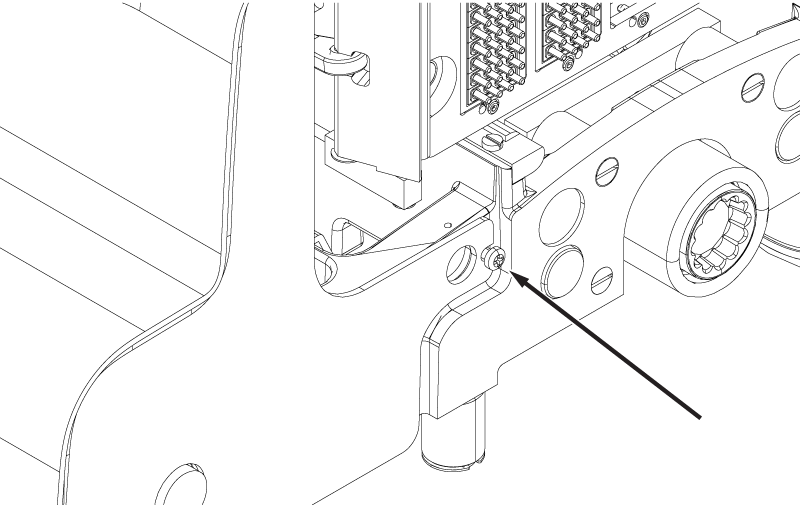

Figure 1. Base side cover front screw
- Remove the four screws securing the base cover to the table base.

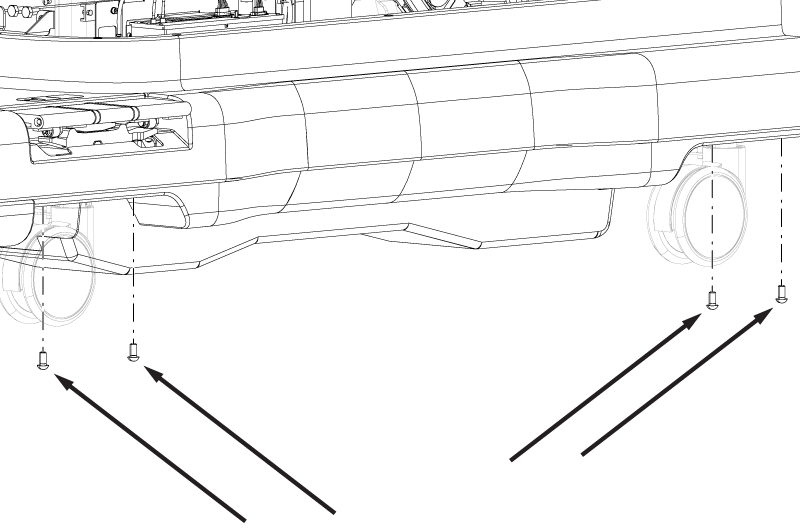

Figure 2. Base side cover bottom screws
- Make sure the right-hand brake pedals are in the disengaged position.

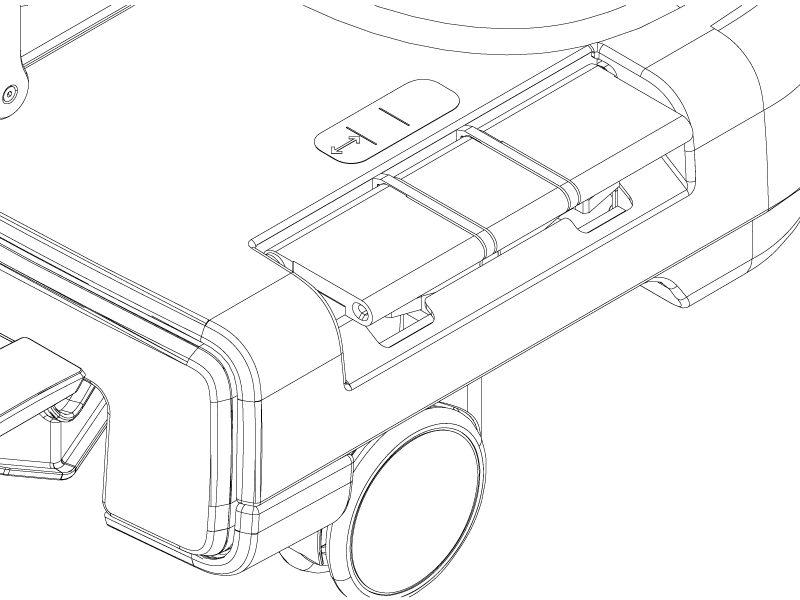

Figure 3. Brake pedals disengaged
- Remove the base side cover from the base of the table, front end first.
Figure 4. Right-hand base side cover
