Connector Cover and Handle Hinge Replacements

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	60 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non-Magnetic Tool Kit	1	-	5112581	-

Table 3. Consumables
Item	Quantity	Effectivity	Part number	Manufacturer
Loctite 242	As needed.	-	Refer to FRU Manual.	-

Table 4. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
Connector Cover Hinge (non-GEM)	1	-	Refer to FRU Manual	-
LH Handle Hinge	1	-	Refer to FRU Manual	-

Overview

This procedure describes how to replace the Flat Table P-Port Connector for non-GEM tables and Handle Hinge replacement for all tables.

This procedure applies only to non-GEM tables.

Undock the table and remove it from the magnet room.

Figure 1. Table Covers

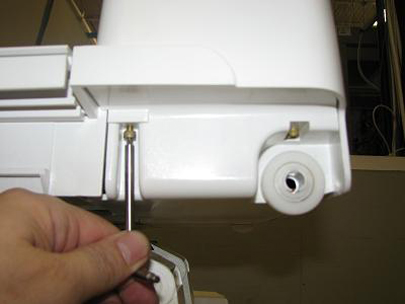

Extend the table slide to access the rear connector section. Remove the End Cover by removing the two screws on each side. See illustration below.

Figure 2. End Cover Removal

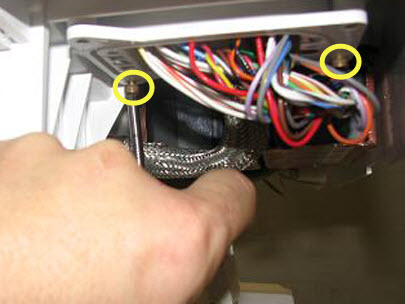

Remove the two screws from the backside of the connector. See illustration below.

Figure 3. Connector Screws

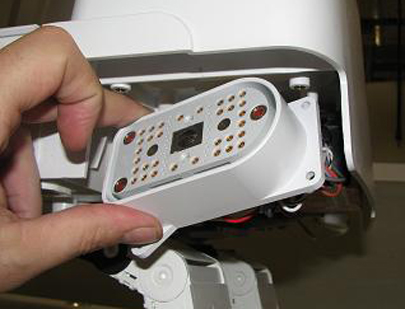

Remove the connector from its mounting to allow for removal of the cover. See illustration below.

Figure 4. Connector Removal

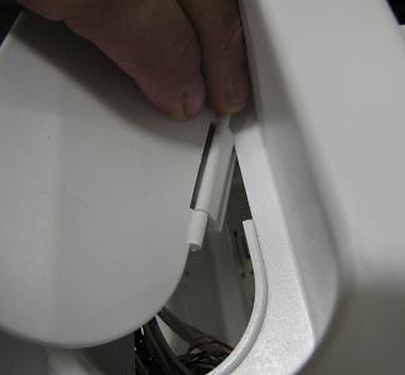

Remove Cover Hinge by pulling it off of the table body. See Illustration below.

Figure 5. Connector Cover Hinge Removal
Install the new Cover Hinge.
Assemble the table by reversing Step 1 through Step 5.
Dock the table to the scanner and ensure proper operation.

Undock the table and remove it from the magnet room. See Figure 1.

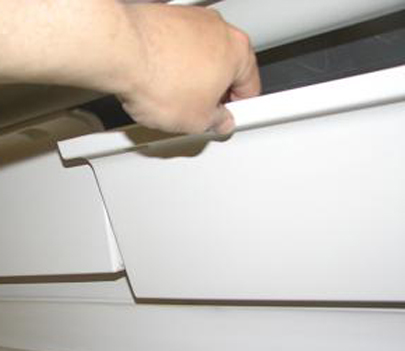

Remove the upper-left cover by removing the bellows screws and the cover screws that fasten the cover to the table assembly. Carefully pull down the cover and slide it around the table handle (you may need to remove the two upper middle cover screws adjacent to the upper left cover to remove the upper left corner cover). See the illustration below.

Figure 6. Upper-Left Cover Removal

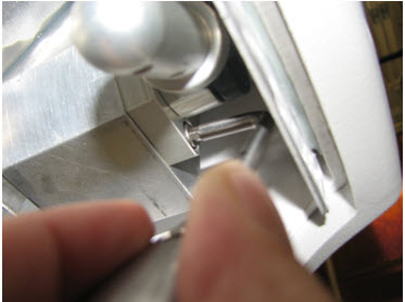

Unscrew the Handle from the Handle Hinge. See illustration below.

Figure 7. Handle Removal

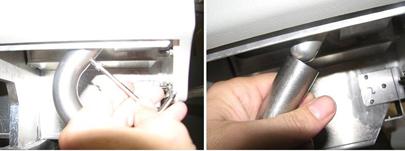

Remove and replace Handle Hinge. Apply Loctite to the screws when reinstalling. See illustration below.

Figure 8. Handle Hinge Removal
Assemble the Handle and table by reversing Step 1 through Step 4.
Dock the table with the scanner and ensure proper operation.
