Setting up the BIOS

Prerequisites

Required conditions
  1. Disconnect the cable connecting to port 1 slot 2 of T5820.

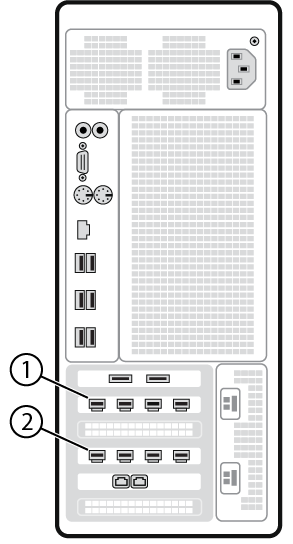

    Figure 1. Dell T5820 cable connections
    1Port 1 slot 2
    2Port 1 slot 4
  2. Disconnect the cable connecting to port 1 slot 4 of , and then connect it to port 1 slot 2 of .
  3. Power on , and then start to setup the BIOS.

Procedure

  1. When the Dell circle appears on the screen, press F2.
  2. If a message appears indicating the time of day is not set, press F2.
    1. Select General > Date/Time and set the correct time.
    2. Use the Tab key to move the cursor, and then use the left and right arrow keys to change the values.

      Result

      After you set the time and date, the BIOS settings opens.
  3. Restore the customized BIOS settings. Change only the values specified below.
    Table 1. (For Dell T5820) Customized BIOS settings
    SectionSub-sectionSetting
    GeneralBoot SequencePXE IP4 Intel® Gigabit 2P I350-t Adapter - disabled
    PXE IP6 Intel® Gigabit 2P I350-t Adapter - disabled
    PXE IP4 Intel® Gigabit 2P I350-t Adapter - disabled
    PXE IP6 Intel® Gigabit 2P I350-t Adapter - disabled
    Advanced Boot OptionsEnabled Legacy Option ROMs – enabled
    System ConfigurationIntegrated NICEnabled – Integrated NIC is enabled
    SATA OperationAHCI - enabled
    SATA DrivesSATA-4 - disabled
    SATA-5 - disabled
    ODD-1 - disabled
    PCIE DrivesMiniSAS PCIe SSD-0 - disabled
    MiniSAS PCIe SSD-1 - disabled
    Miscellaneous DevicesEnable PCI slot - disabled
    Enable Secure Digital (SD) Card – disabled
    Intel VMD TechnologyPCIE0 – not selected
    PCIE1 – not selected
    Disabled
    VideoPrimary Video SlotSLOT4: NVIDIA HD Graphics - enabled
    SecurityChassis IntrusionOn-Silent
    PerformanceIntel SpeedStepEnable Intel SpeedStep - disabled
    C-States ControlC states - disabled
    Dell Reliable Memory Technology (RMT)Enable Dell RMT - disabled
    RAS SupportEnable on Memory modules - enabled
    Enable on PCIE modules - enabled
    Enable on CPU modules - enabled
    Power ManagementAC RecoveryPower On - enabled
    USB Wake SupportEnable USB Wake Support - enabled
    ManageabilityMEBx HotkeyEnable MEBx Hotkey - disabled
    Virtualization SupportVirtualizationEnable Intel Virtualization Technology - disabled
    VT for Direct I/OEnable VT for Direct I/O - disabled
    MaintenanceSERR MessagesEnable SERR Messages - disabled
    BIOS RecoveryBIOS Recovery from Hard Drive – disabled
    Advanced ConfigurationsASPMDisabled
  4. Click Apply.
  5. Click Exit.

    Result

    The system reboots. The BIOS configuration is complete.

Finalization

  1. Power off the .
  2. Disconnect the cable connecting to port 1 slot 2 of , and then connect it to port 1 slot 4 of .
  3. Power on and make sure LCD is on.
