Replacing the gradient filter

About this task

Procedure

Remove the gradient filter covers from the Gen2 gradient filter.

Note: Save the screws and washers when replacing 5808046-2 with 5808046-2. Discard the screws and washers when replacing 5726228 or 5726228-2 with 5808046-2.

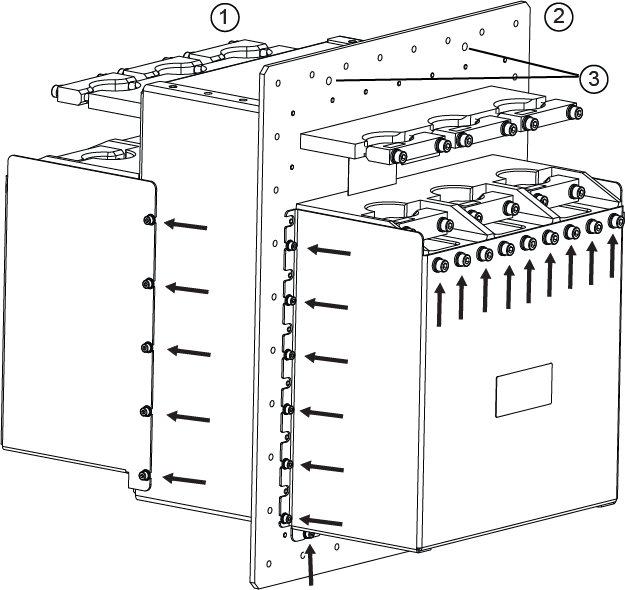

Figure 1. Remove the covers
1 Scan room side
2 Equipment room side
3 Guide peg holes

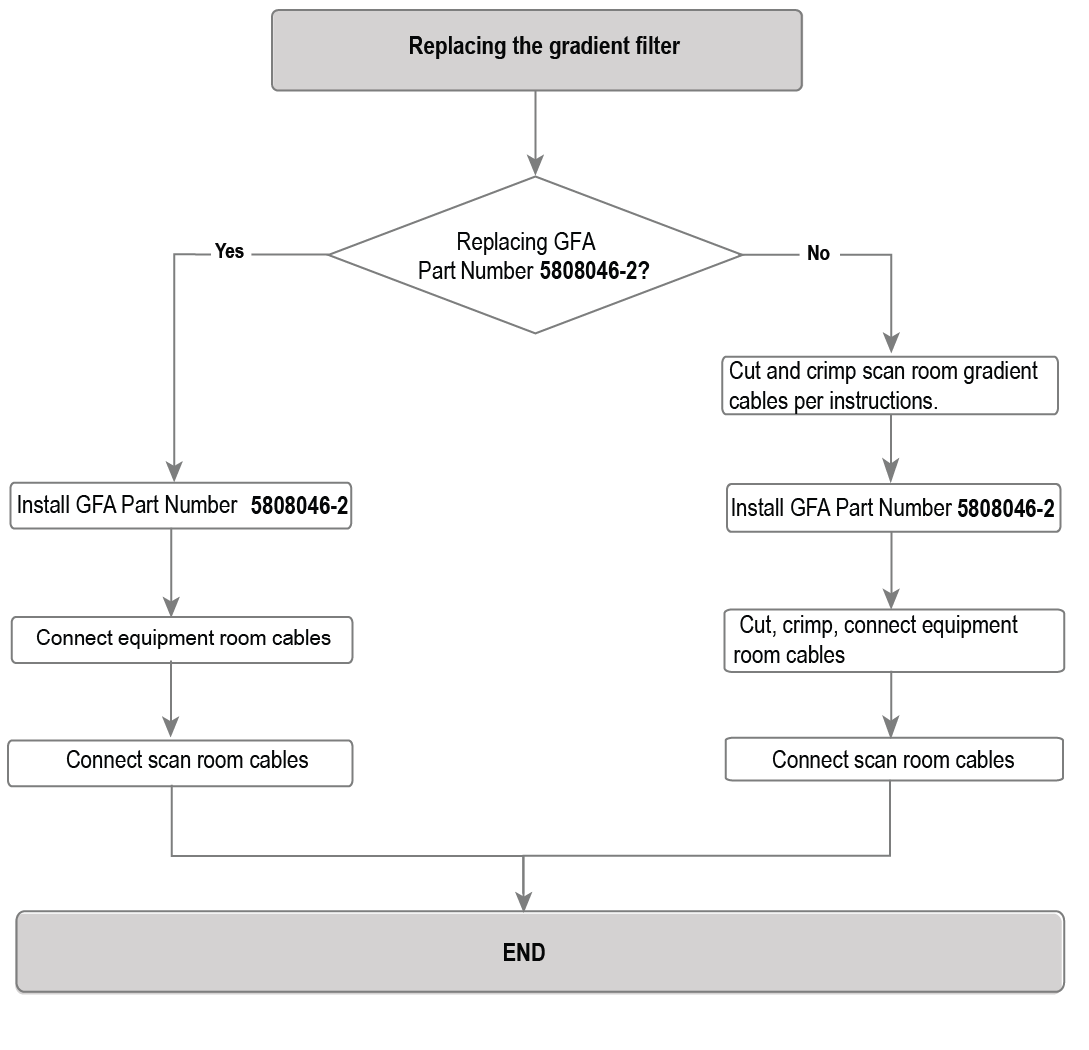

If you are replacing gradient filter:
- 5726228 or 5726228-2 with 5808046-2, reconfiguration of the gradient cable will be required, perform this procedure in order.
- 5808046-2 with 5808046-2, go to Installing the Gen2 gradient filter in the Penetration Panel (PP). No gradient cable reconfiguration should be required.
