Discovery MR750w and SIGNA™ Architect T 3.0T System Service Methods
5690002-2EN Revision 4
Object ID: 00000018WIA3020B350GYZ
Topic ID: id_2020834 Version: 2.1
Date: Apr 23, 2020 8:53:09 PM

Installing the hydraulic rotary pump drip pan

Procedure

Slide the pan into position under the table.

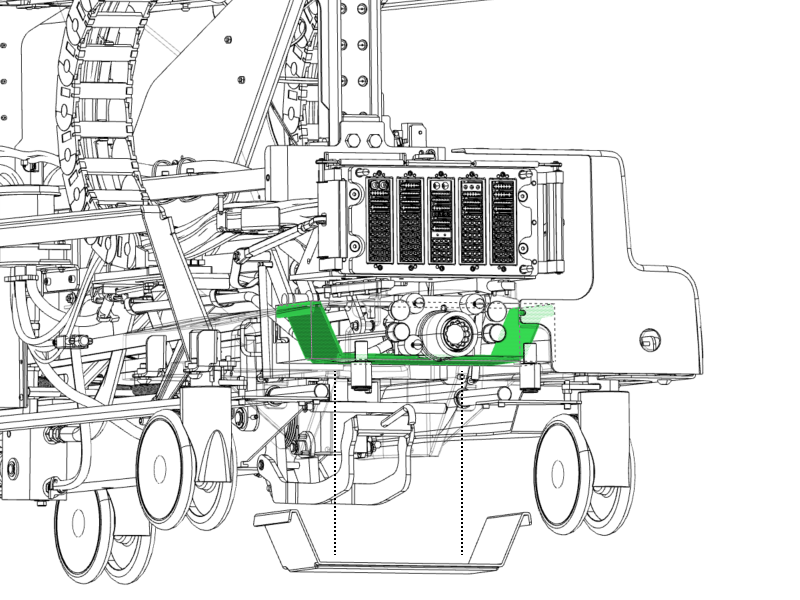

Figure 1. Hydraulic rotary pump oil drip pan
Push the sides of the pan inward while sliding the pan up through the rails.
Position the sides of the pan to hang over the rails, securing the pan under the rotary pump.
