Removing the left-hand base side cover

Removes the left-hand cover from the dockable table base.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-
Required conditions
The right-hand base cover is removed.

Procedure

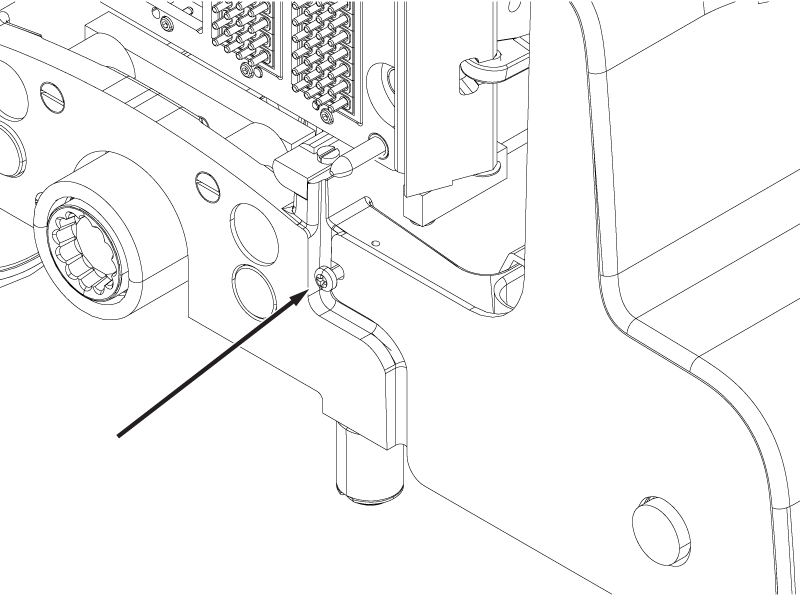

  1. Loosen the screw securing the front of the base side cover.
    Figure 1. Base side cover front screw

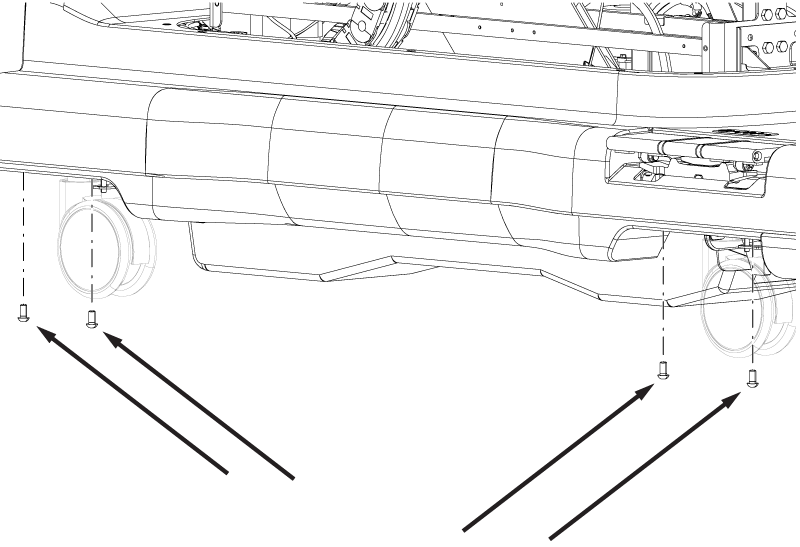

  2. Remove the four screws securing the base cover to the table base.
    Figure 2. Base side cover bottom screws

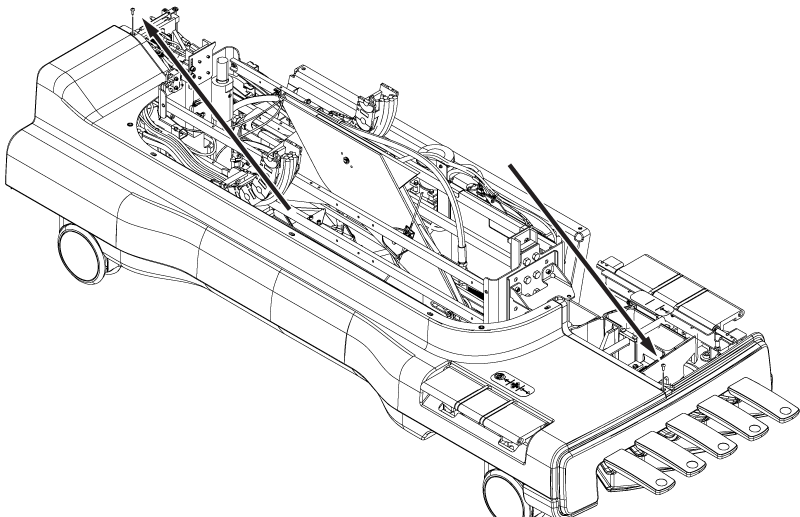

  3. Remove the two screws securing the base side cover to the table base.
    Figure 3. Base side cover top screws

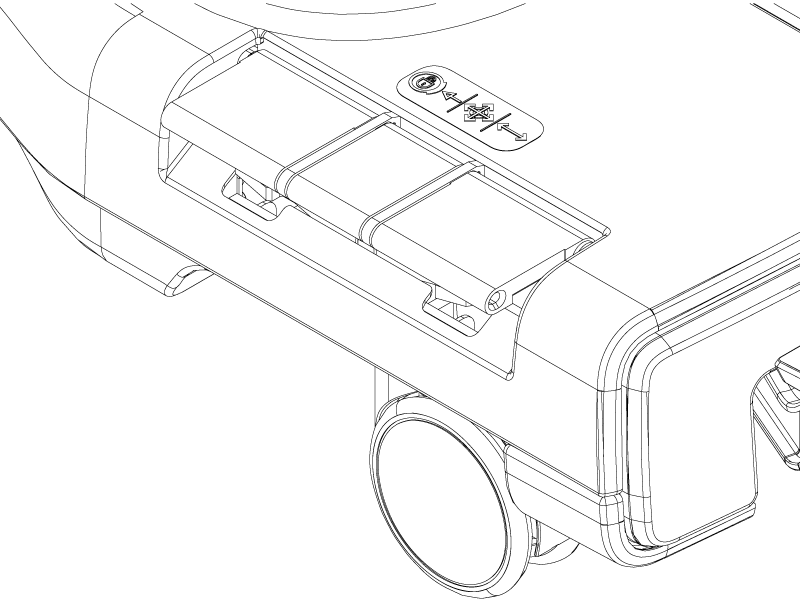

  4. Make sure the left-hand brake pedals are in the disengaged position.
    Figure 4. Brake pedals disengaged

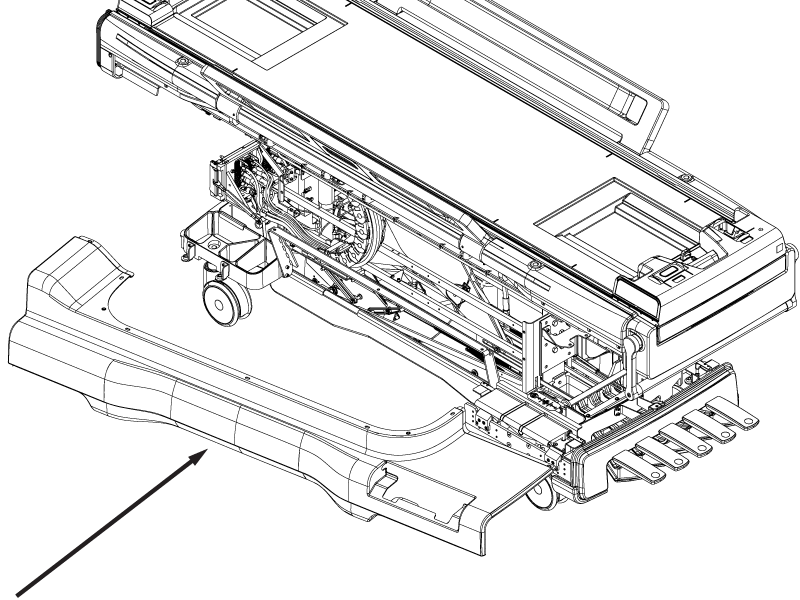

  5. Remove the base side cover from the base of the table, front end first.
    Figure 5. Left-hand base side cover
