Patient Table Components

There are three main table types: non-electrical, 32-channel curved, and 32-channel flat (GEM). The following illustration depicts the major replaceable components for the curved patient table.

Note:

Refer to vendor documentation for descriptions of tables sold as options (Surgical Suite, Sentinelle, Oncology, etc.).

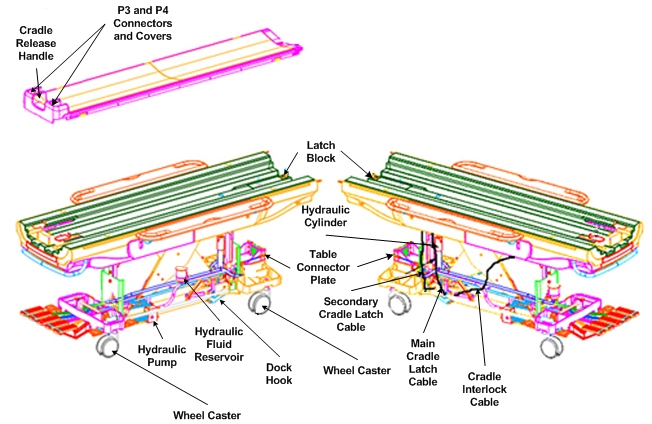

Figure 1. Main Components of 32-Channel Curved Table

Non-electrical table: Has no P-ports.

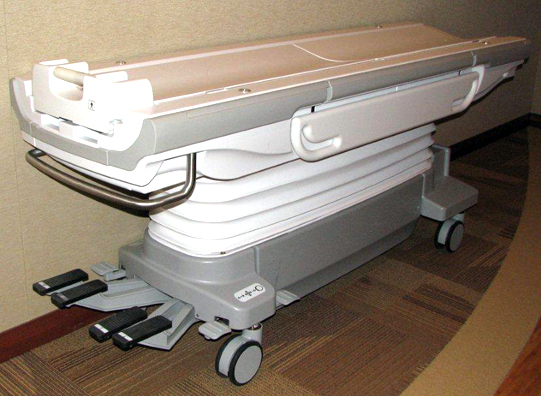

Figure 2. Non-Electrical Table

32-channel curved table: Has P3 and P4 ports at the rear of the table.

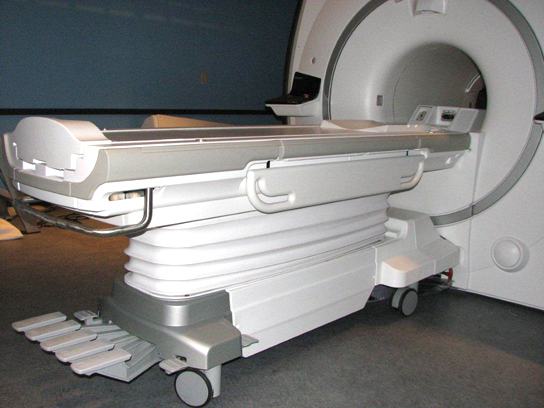

Figure 3. 32-Channel Curved Table

32-channel flat (GEM) table: Has P2 and P4 ports.

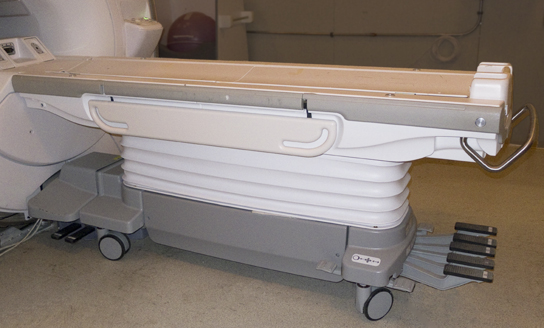

Figure 4. 32-Channel Flat (GEM) Table
Note:

Tables containing P-ports have coil IDs that make the table unique to the system. See system block diagrams for wiring schematic of tables with coil ID and P-connectors.

Table Description Part Number System Type
MR750 3.0T MR750w GEM 3.0T MR450 1.5T MR450w 1.5T MR450w GEM 1.5T
32-channel curved table5265300X
Non-electrical curved table a5265300-3X X
Non-electrical curved (GEM) table abe5265300-23 X
32-channel flat (GEM) table5265300-20 X
32-channel curved table c5265300-2 X
32-channel curved table c5265300-5 X
Non-electrical curved table a5265300-6 X
32-channel flat (GEM) table d5265300-22 X

a Non-electrical table has no P-ports.

b Non-electrical GEM table has covers that match the GEM covers in color.

c 32-channel curved table has P3 and P4 connectors and has a curved surface.

d 32-channel flat (GEM) table has P2 and P4 connectors and has a flat surface.

e Non-electrical curved (GEM) table is used with the MNS option.
