GEM RT Open Array Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Flathead screwdriver	1	-	-	-
Side cutters	1	-	-	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
FRU, GEM RT open array	1	-	See FRU Manual	-
FRU, GEM RT open array system cable	1	-	See FRU manual	-
100G shock sensor	1	-	See FRU manual	-

This document provides instructions to remove the system cable for the GEM RT Open Array coil for both 1.5T and 3.0T magnets.

Notice

Remove the coil from the magnet room before performing this procedure.
Locate the bottom of the coil and remove all screws. Remove the cover.

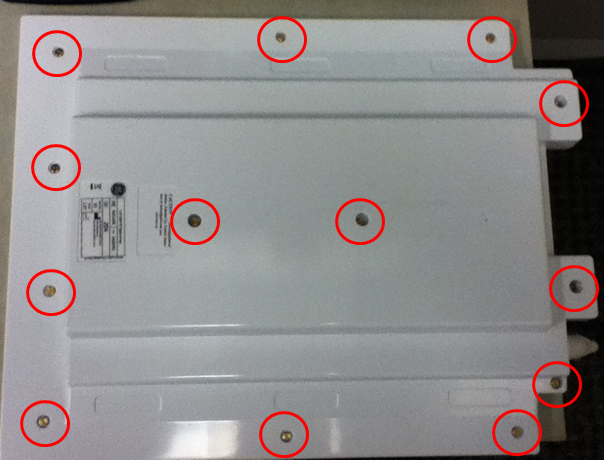

Figure 1. Screw Locations on Bottom of Coil
Remove the cable ties with side cutters.

Figure 2. Cable Tie and Connector Locations

Item Description
1 Location of cable ties
2 J37 connector
3 J38 connector
4 J39 connector
Remove the J37 connector. Push the tab on the side in to release the connector and pull straight up.
Remove the J38 connector by pulling straight up.
Remove the J39 connector.
Remove the cable clamp and screws.

Figure 3. Screws Holding Cable Clamp

CAUTION

Equipment Damage!

Cables can be damaged if the cables are secured over the screw.

Avoid routing the cable on top of the screw in the PCB assembly. Carefully route the cable in the notch of the PCB assembly.

Replace the coil FRU or cable FRU.

As you replace the cables, carefully route the cable in the notch of the PCB assembly.

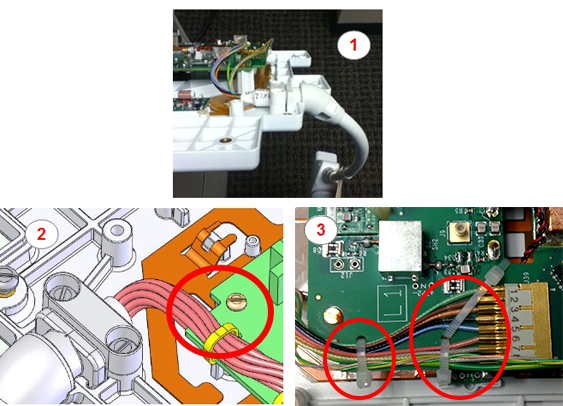

Item	Description
1	Orientation of the cable
2	Notch in PCB assembly and screw
3	Placement of the cable ties

Perform the steps in this procedure in reverse order to reinstall the system cable.

Proceed to GEM RT Open Array MCQA Setup, and run Multi-Coil Quality Assurance Tool to verify that the coil operates properly.
