HD T/R Quad Extremity Coil Introduction

Overview

This document describes the HD T/R Quad Extremity Coil by Invivo, catalog M7000FT (for flat table).

Product Identification and Shipping List

To identify the coil, refer to the coil label and illustration below.

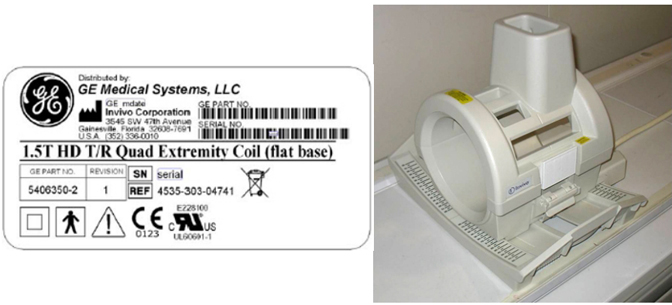

Figure 1. 1.5T GEM Coil and Product Label

Table 1. T/R Quad Extremity Coil Shipping List (for Flat Table)
Description	GE Part Number	Supplier Part Number	GE Part Number	Supplier Part Number	Quantity
Description	1.5T		3.0T		Quantity
T/R Quad Extremity Coil	5406350-2	4535-303-0474*	5406653-2	4535-303-0518*	1
Knee Pad	—	4535-303-0339*	—	4535-303-0339*	1
Leg/Foot Support Pad	—	4535-303-0340*	—	4535-303-0340*	1
Foot Support Pad	—	4535-303-0341*	—	4535-303-0341*	1
Toe Pad	—	4535-303-0342*	—	4535-303-0342*	1
Operator Manual	—	4535-303-0512*	—	4535-303-0512*	1
Unified Phantom Positioner	4535-303-0342*	14270	5147225-7	14270	1

* The part number’s revision is the last digit, in place of the * (asterisk).

Environmental Requirements

Storage requirements: Store the coil in an air-conditioned scan or equipment room. A storage space of 21.6 in x 17.7 in x 15.7 in (55 cm x 45 cm x 40 cm) is required.

Dimensions: 19 in (W) x 12 in (L) x 12 in (H) (48 cm x 30 cm x 36 cm)

Weight: 15 lb (6.8 kg)
