GEM RT Open Array MCQA Setup

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
TL unified phantom	2	-	See FRU manual	-
PA phantom positioner	1	-	See FRU manual	-

The MCQA test for the 1.5T GEM RT Open Array uses the 1.5T phantoms, which are green. The PA coil also needs to be installed.

Note:

Coils do not ship with phantoms. Phantoms come in a unified phantom set with the MR system.

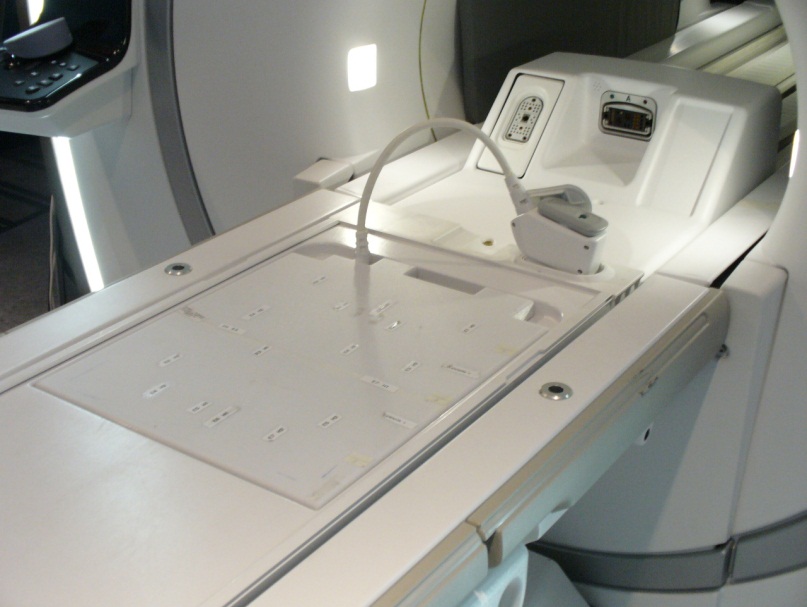

Position the GEM RT open array coil on the GEM table.

Figure 1. Position Coil on GEM Table
Place two TL unified phantoms with the GEM RT open array on the GEM table.

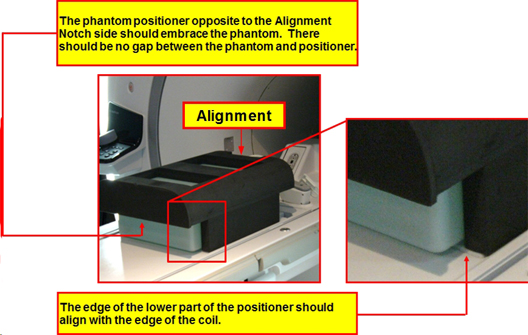

1. Confirm that the alignment notch on the PA phantom positioner faces toward the bore, and that the side opposite of the alignment notch embraces the TL unified phantoms.

  Figure 2. Position Phantom with Notch Closest to Bore
2. Confirm that the edge of the lower portion of the PA phantom positioner aligns with the edge of the GEM RT open array.

  Figure 3. Phantom Position at Edge of Coil
Landmark at the edge of the hole on top of the PA phantom positioner. Press Advance to Scan.

Figure 4. Landmark at Edge of Foam Positioner
Run Multi-Coil Quality Assurance Tool. In the Current Coil field, confirm that 1.5T_GEM_RT is selected.

No finalization steps.
