GEM MCQA Setup - AA

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2. Tools and test equipmentThe 1.5T GEM Coil MCQA will utilize the 1.5T phantoms, which are green in color. The 3.0T GEM Coil MCQA will utilize the 3.0T phantoms, which are pink in color.
Note: Coils do **not** ship with phantoms. Phantoms come in a unified phantom set with the MR System.
Item	Quantity	Effectivity	Part number	Manufacturer
TL Unified Phantom (For 1.5T)	2	-	5343347	-
TL Unified Phantom (For 3.0T)	2	-	5343347-2	-
PA Phantom Positioner (For both 1.5T and 3.0T)	1	-	5405748	-

Place the Flat Filler Panel (shown below) on the GEM table.

Figure 1. Flat Filler Panel
Place two TL Unified Phantoms with the PA Phantom Positioner on the GEM table.
1. Ensure the Alignment notch on the PA Phantom Positioner faces toward the bore, and the side opposite the alignment notch on the PA Phantom Positioner embraces the TL Unified Phantom.

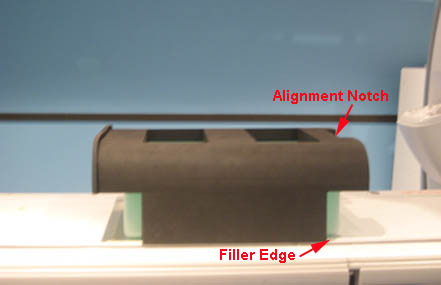

2. Ensure the edge of the lower part of PA Phantom Positioner aligns with the edge of the flat filler panel as shown.

  Figure 2. Positioning of PA Phantom Positioner
Place the AA Coil on top of the PA Phantom Positioner, and secure to each other with Velcro® straps as shown. Connect the coil to the P1 port.

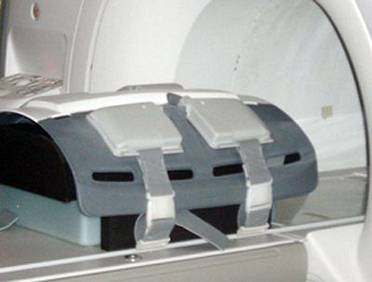

Figure 3. Securing Coil to Positioner with Straps

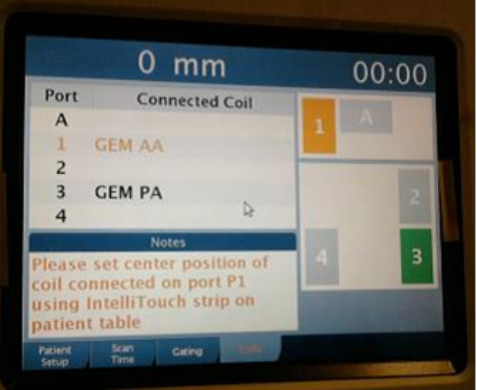

Set center position of the AA Coil connected on Port 1 using the Touch and Go strips on the side of the table.

Figure 4. Setting Center Position of AA coil Using Touch and Go

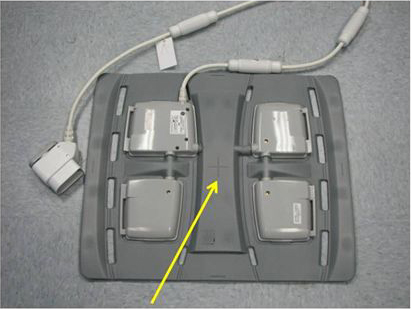

Landmark on the AA Coil crosshairs as shown, and press Advance to Scan

Figure 5. Landmarking on AA Coil

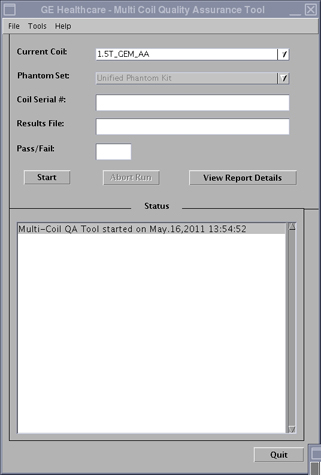

Run the Multi-Coil Quality Assurance Tool. Ensure that the correct coil is selected in the Current Coil field: 1.5T_GEM_AA (shown below) or 3.0T_GEM_AA for a 3.0T system.

Figure 6. MCQA Tool Menu

No finalization steps.
