Replacing the pedal link bar connector

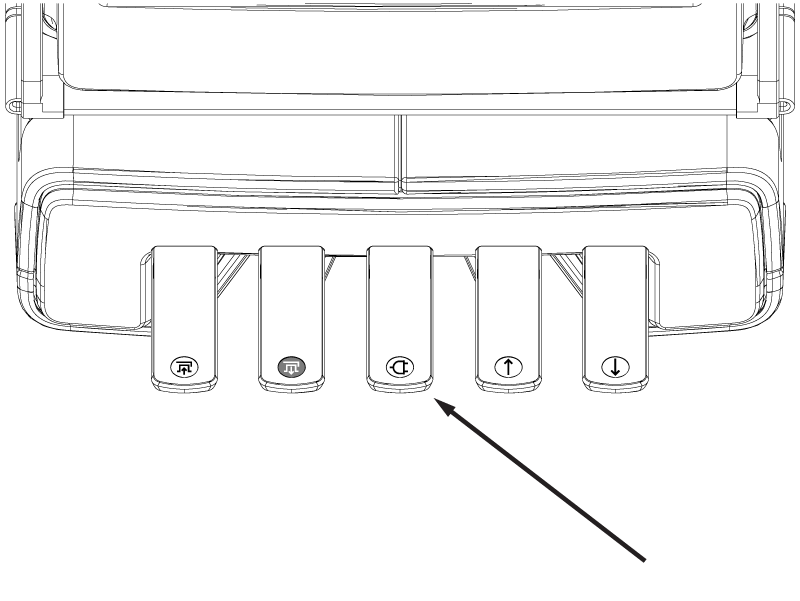

Describes how to remove and replace the pedal link bar connector that operates the foot pedal to dock the patient table electrically.
Prerequisites
| Personnel requirements | |||
|---|---|---|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
| 1 | - | 60 minutes | - |
| Tools and test equipment | |||
|---|---|---|---|
| Item | Quantity | Part number | Manufacturer |
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
| Replacement parts | |||
|---|---|---|---|
| Item | Quantity | Part number | Manufacturer |
| Link Bar Connector Pedal | 1 | 5174518 | - |
| Warning | |
|---|---|
 | Risk of personal injury Severe injury can occur if the table is accidentally lowered during maintenance. When doing maintenance with the table in the Up position, make sure the lock bar is safely engaged. |
About this task
