Installing the pedal link bar connector

Installs the pedal link bar connector that operates the foot pedal.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-10 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Push the up-limit rod plunger in to open the hole in the front of the table.

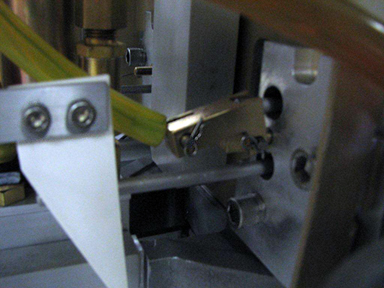

    Figure 1. Up Limit Rod Plunger
  2. Install the pedal link bar connector through the up limit rod hole in the front of the table.
  3. Connect the sensor cable or up limit link.
    Figure 2. Sensor Cable

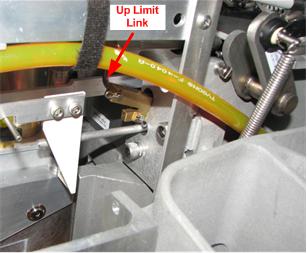

    Figure 3. Up Limit Link
  4. Install the block lift onto the pedal link bar connector.

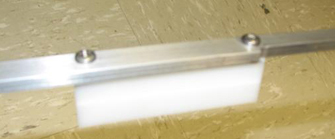

    Figure 4. Block Lift on Pedal Link Bar Connector
  5. Move the pedal link bar to access screws on the block lift. Install the two screws securing the block lift to the pedal link bar connector.
  6. Pull the link down bar up to allow access the pedal link bar connector. Install the pin into the pedal link bar connector.

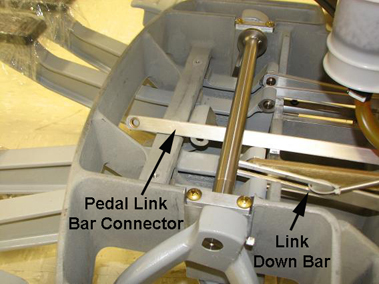

    Figure 5. Link Down Bar
  7. Install the E-clip that secures the pedal link bar connector to the pedal that electrically docks the patient table.

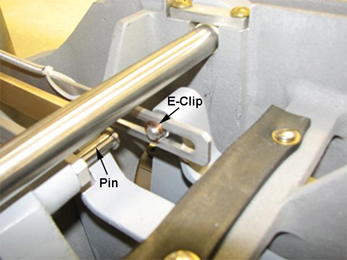

    Figure 6. Pin Removal from Pedal Link Bar Connector
  8. Install the spring attached to the pedal link bar connector at the rear of the patient table.

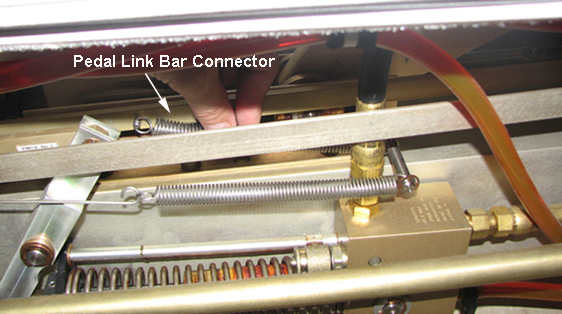

    Figure 7. Spring Removal
  9. Raise the table so the weight is off of the lock bar. Raise the table lock safety bar.
  10. Install the four screws (shown below) that secure the rear base cover to the table base and the bellows.
    Figure 8. Screws Securing Rear Base Cover
  11. Install both the left and right lower base side covers by pushing in and down to attach the Velcro® securing each to the Bellows. For more information, refer to Patient Table Upper and Lower Base Side Cover Removal.
  12. Install the two screws that fasten the left and right lower base side covers to the table.
    Figure 9. Patient Table Covers (Left Side Shown)
