Remove the temperature and humidity sensor from the Global Operator Console (GOC).
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 15 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- Remove the two screws securing the GOC right side cover to the GOC.
Figure 1. Right side cover screws
- Lift the right side cover up to remove the cover.
Note: Do not damage the ground wire while removing the cover from the GOC.
- Disconnect the ground wire spade connectors.
- Disconnect the cable from the temperature and humidity sensor.

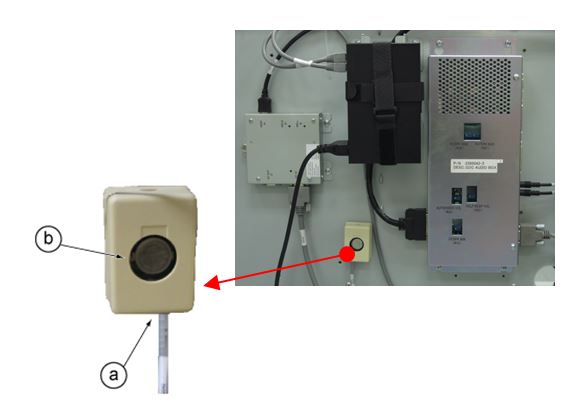

Figure 2. Disconnect cables and remove Temperature and Humidity Sensor
- Lift the temperature and humidity sensor to remove it from the GOC.
Note: The sensor is attached with Velcro.
