Removing the right-hand base side cover

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The bellows cover is raised.

Procedure

Undock the table and move it away from the magnet.

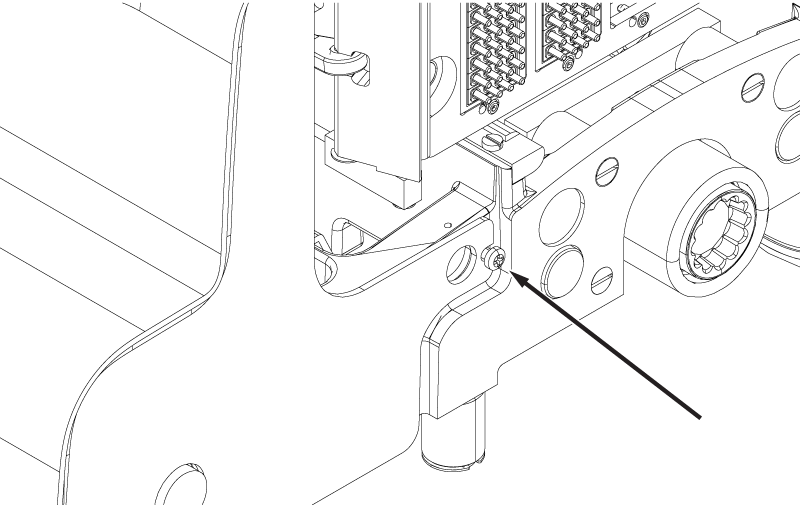

Loosen the screw securing the front of the base side cover.
Figure 1. Base side cover front screw

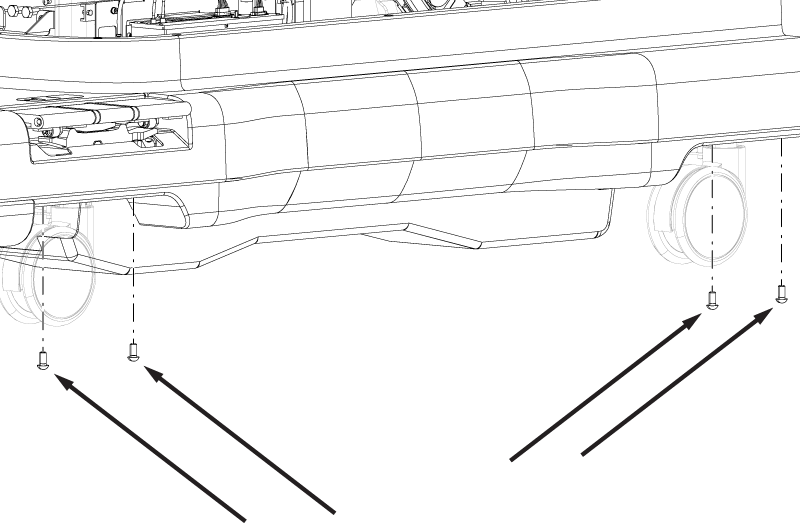

Remove the four screws securing the base cover to the table base.

Figure 2. Base side cover bottom screws

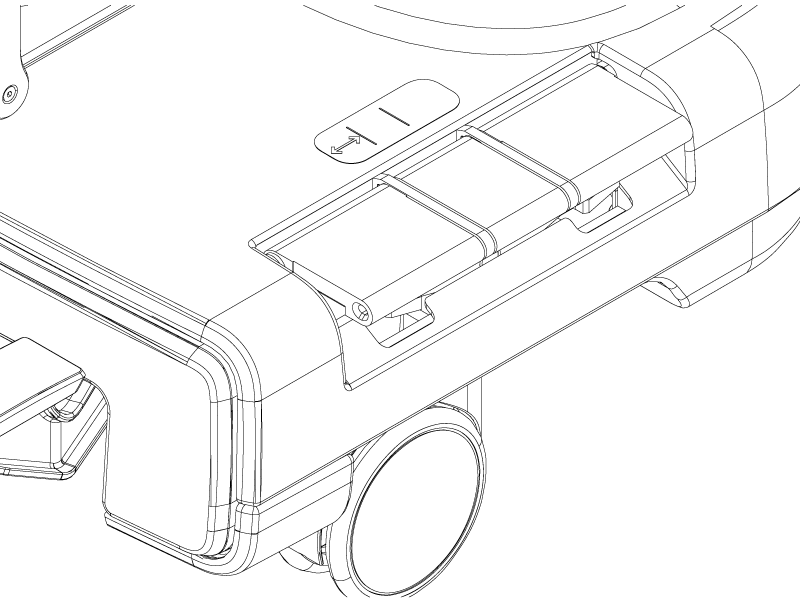

Make sure the right-hand brake pedals are in the disengaged position.

Figure 3. Brake pedals disengaged

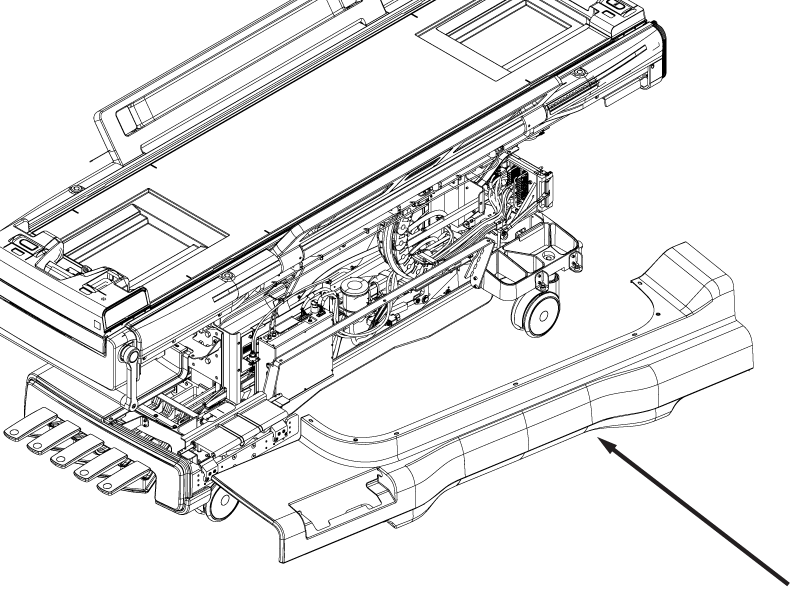

Remove the base side cover from the base of the table, front end first.

Figure 4. Right-hand base side cover
