Patient table upper bellows and lower base side cover removal

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes (each)-
Tools and test equipment
ItemQuantityPart numberManufacturer
Non-magnetic Service Tools1

5112581

-

About this task

In this procedure, there are two types of actions. For the Lower Base Side cover, you remove one or both of them. However, for the Upper Bellows, you fasten it in an up position.

The Upper Bellows, an accordion style cover, can be positioned up or down depending on the type of servicing needed. The Lower Base Side Cover is a solid single cover that runs the length of the lower chassis from the front caster assembly to the rear caster assembly on each side.

Topic ID: id_SL1911158-1058185

To fasten the upper bellows

Procedure

  1. Depending on servicing needs, the Patient Table may be docked or undocked.
  2. Remove four screws (two at front, two at rear) that connects the bottom end of the Upper Bellows to the top of the Lower Base Side Cover.

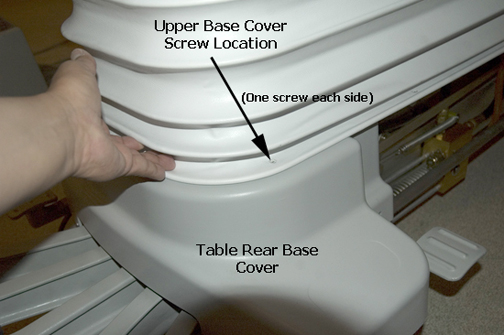

    Figure 1. Upper bellows screws
  3. To fasten the upper bellows in an up position, lift the bellows from the bottom of both sides and use the Velcro straps located on the inside of the bellows to secure the cover in place.
Topic ID: id_SL1911162-1058185

To remove the lower base side cover

Procedure

  1. Remove four screws (two at front, two at rear) that connects the bottom end of the upper bellows to the top of the lower base side cover.
    Note: Once you remove the four screws from the bottom of the Upper Bellows, you may or may not want to fasten the Upper Bellows in an up position with the Velcro straps.
  2. On the left or right side of the table, remove two screws from the lower base side cover.

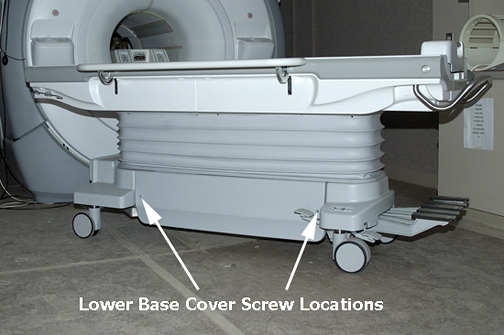

    Figure 2. Lower base side cover screws
  3. Lift the lower base side cover off of front and rear guide studs on the front and rear base covers.

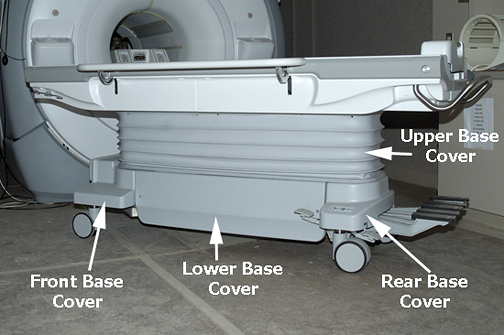

    Figure 3. Front and rear base covers
Topic ID: id_14986693

Finalization

Finalization

No finalization steps.
