Discovery MR750 3.0T System Service Methods
5690009-2EN Revision 4
Object ID: 00000018WIA30FC5C40GYZ
Topic ID: id_2019273 Version: 2.7
Date: Jul 7, 2021 3:51:56 PM

Removing the left-hand base side cover

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The right-hand base cover is removed.

Procedure

Loosen the screw securing the front of the base side cover.

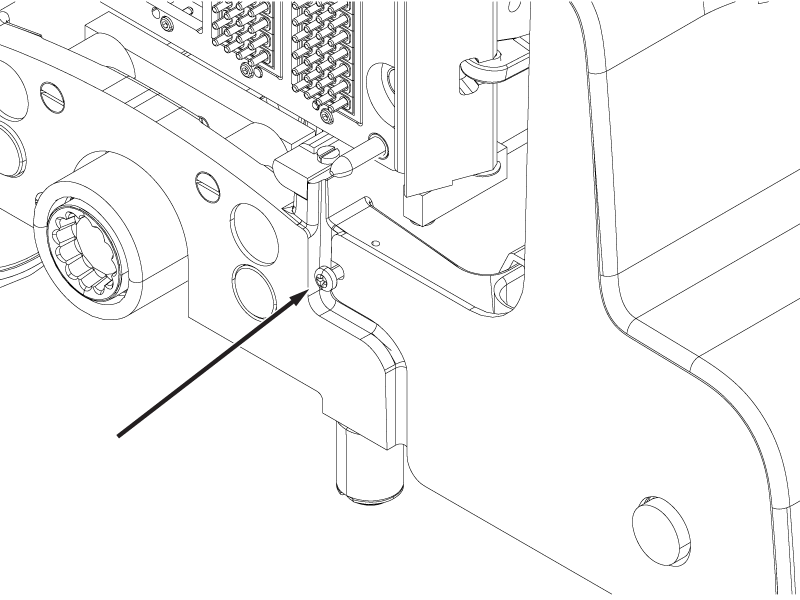

Figure 1. Base side cover front screw
Remove the four screws securing the base cover to the table base.

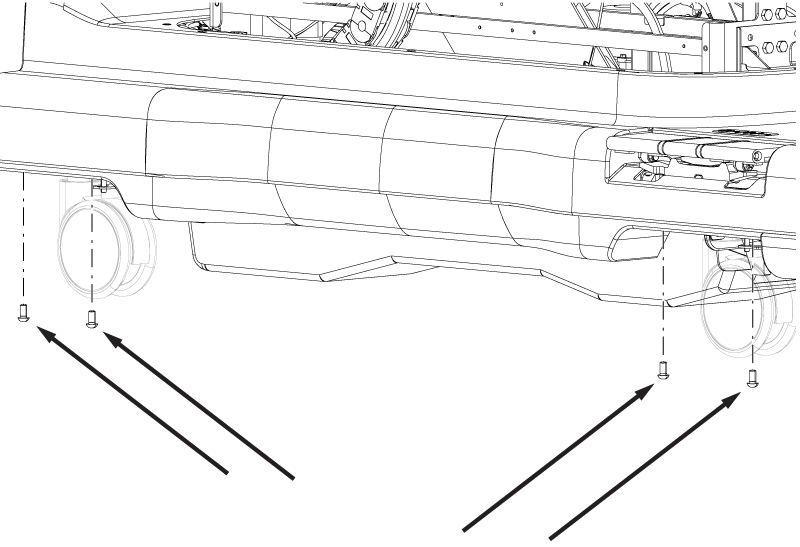

Figure 2. Base side cover bottom screws
Remove the two screws securing the base side cover to the table base.

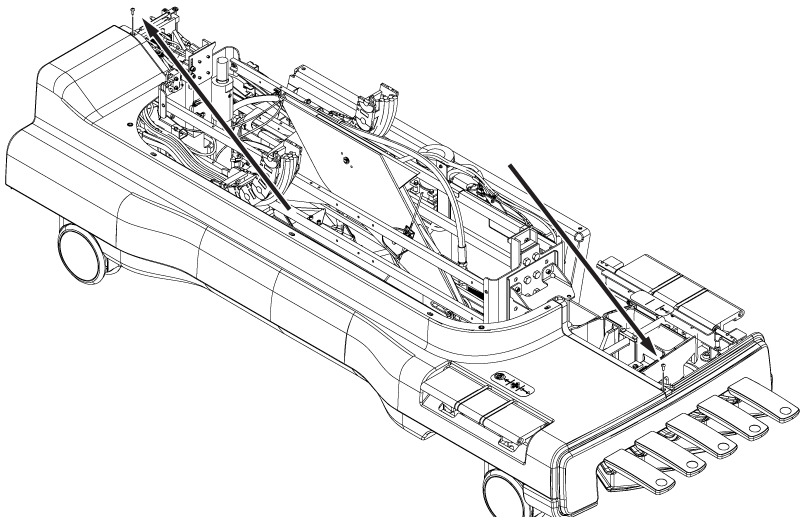

Figure 3. Base side cover top screws
Make sure the left-hand brake pedals are in the disengaged position.

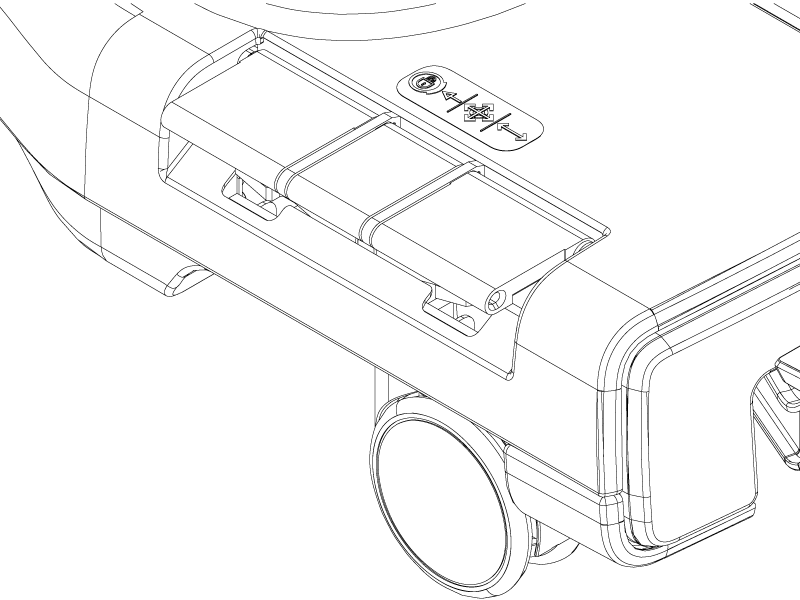

Figure 4. Brake pedals disengaged
Remove the base side cover from the base of the table, front end first.

Figure 5. Left-hand base side cover
