Running HOEC

Procedure

Make sure all three axes are selected (screen default).
In the HOEC window, click Scan.

In the status window, the tool displays the message that the analysis is complete for each axis (x, y, and z).

If the tool completed the analysis for all three axes, exit the tool.
If the tool did not complete the analysis, review the error log for possible system issues.

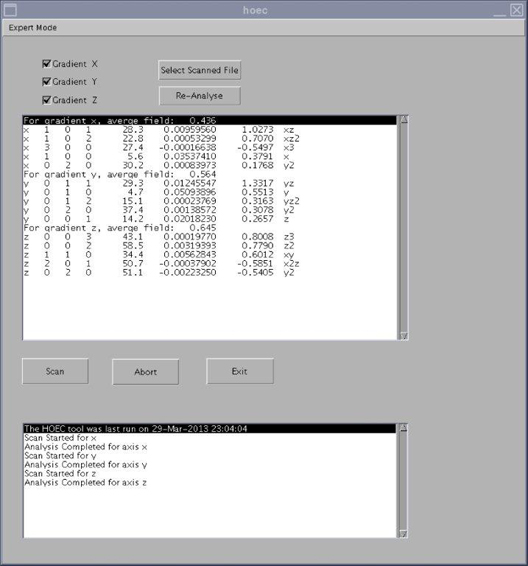

Figure 1. HOEC with results


Interface control	Resulting action
Expert Mode button	Allows you to view the images analyzed by the tool (this is primarily used to look for sources of error). Use Expert Mode only if directed to do so by OLC.
Gradient X/Y/Z boxes	By default, all three of these boxes are checked. When one of these boxes is checked, that gradient is included in the HOEC calibration.
Select Scanned File button	Click this button to select the results file from a previous HOEC calibration.
Re-Analyse button	Click this button to reanalyze the results file from a previous HOEC calibration. You must select a scanned file before clicking this button.
Scan button	Starts the HOEC calibration.
Abort button	Stops the HOEC calibration.
Exit button	Closes the HOEC calibration tool.

Finalization

Remove any phantoms from the bore.
If calibration is being run within ICW installation mode continue to the next calibration procedure. Otherwise, Perform SaveInfo. See Saving information.
Perform Check Scan before turning the system over to the customer. See Doing a check scan.
