LPCA Cable Tracks Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable90 minutes30 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Assorted cable tiesMultiple---
Non-magnetic service tool kit1-

-
MCRv tool kit 1-

5182417

-
Table 3. Consumables
ItemQuantityEffectivityPart numberManufacturer
Loctite 2421-

46-170686P1

-
Table 4. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
A-Port legacy cable track assembly1-

See FRU manual

-
Non-GEM P1 P2 cable track assembly1-

See FRU manual

-
1.5T 16-channel 0 P-ports cable track assembly1-

See FRU manual

-
1.5T 32-channel 0 P-ports cable track assembly1-

See FRU manual

-
1.5T 32-channel 4 P-ports cable track assembly1-

See FRU manual

-
Table 5. Safety

About this task

Overview

The LPCA of 32–channel systems contains two independent tracks. This procedure describes the replacement of either LPCA cable track. The tracks are FRU assemblies, meaning if one or more cables within a track fails, the entire track is replaced. Each track contains different cables, and each track has different connector types at both ends. Because of these differences, the procedure for replacing one cable track differs from the procedure for replacing the other cable track.

When looking at the LPCA from the front, the P1 and P2 coil connectors track is on the left side of the rear pedestal and is designated by two FRUs noted in Replacement Parts (see Table 6 for all cable types). The A-port and other associated cable tracks are located on the right side of the rear pedestal (see Table 7 for all cable types).

Remove Cable Track

Procedure

  1. At the operator control panel, drive the LPCA and cradle through the magnet bore to within 1 foot (30 cm) of the end of the rear bridge.

    This provides enough room to work on the LPCA.

    The LPCA will not move if the patient table is disconnected or not at the high limit before LPCA movement.

  2. At the foot of the table, twist or squeeze the cradle release handle to detach the cradle from the LPCA. Pull the cradle by hand to the home position so it is fully retracted onto the patient table.
  3. Undock the patient table and move it away from the magnet.
  4. Perform LOTO on the rear pedestal. See the MR Service Safety Manual, PN 5452735.
  5. Perform system shutdown.
  6. Remove the LPCA cover.
    Figure 1. LPCA Cover Screw Locations
  7. Remove both rear pedestal side covers.
  8. Remove the P1 and/or P2 quick release modules. Use sufficient force to pull the module forward to slide it off the track.

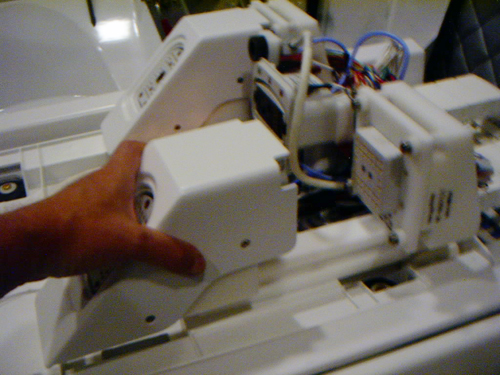

    Figure 2. Remove the Quick Release Module
  9. To create enough space to remove and replace P1/P2 cable connectors, do the following:

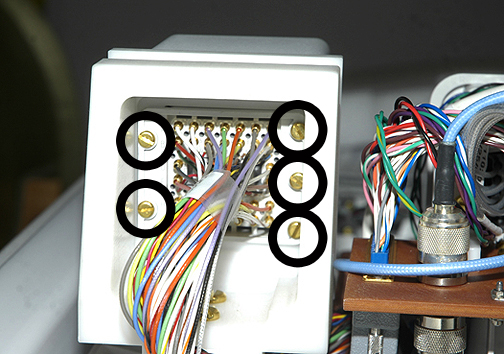

    1. At the rear of each cable mount bracket, remove two screws from the left side and three screws from the right side, and then set the cable connector aside.
      Figure 3. Cable Connector Screws
    2. Remove both bottom cable mount bracket screws, and then set the cable mount bracket aside.

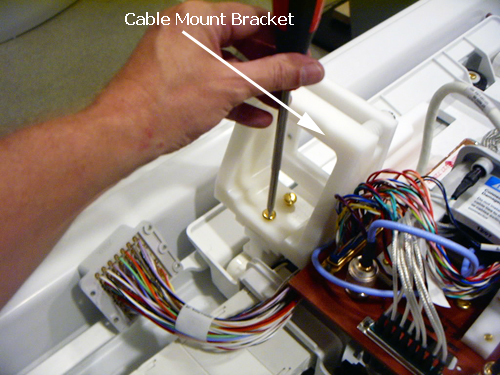

    Figure 4. Cable Mount Bracket Screws
  10. Remove four slotted brass screws from the front and back of the both baluns.

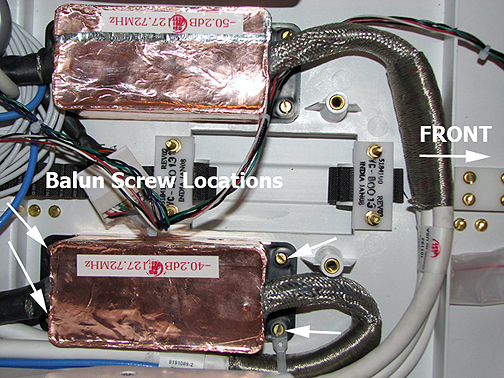

    Figure 5. Balun Screw Locations
  11. Remove the two slotted head brass screws that secure the cable track lead to the base of the LPCA.

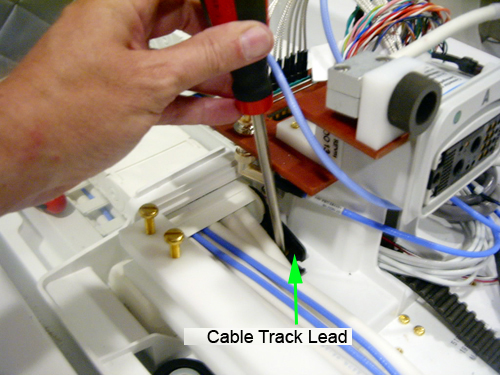

    Figure 6. Cable Track Lead Screw Locations
  12. Remove the two slotted head screws that secure the cable track lead to the front of the rear pedestal bridge.
    Figure 7. Bridge Cable Track Screw Locations
  13. Disconnect all cable connections that feed from the front end of the cable track to points throughout the rear pedestal.
    Note:

    Take note of cable routing and tie wrap locations.

    Table 6. 16-Channel or 32-Channel LPCA Cable Track Connection Points
    16-channel or 32-channel cable track assembly Other end positions
    PED-LPCA J5PED J1 blue cable (on the right side as viewed from the patient table)
    PED load B blue cable (at the back of the rear pedestal)
    P1 A (reroute box), or PED-hub slot 1 P1
    P1 B (reroute box) 32-channel only, or PED-hub-slot 2 P1
    PED-hub-slot_11 J1, on RFCB slot 11 in RF hub
    PED-LPCA J4P2 A (reroute box), or PED-hub-slot 1 P2
    P2 B (reroute box) 32-channel only, or PED-hub-slot 2 P2
    PED-hub-slot_11 J2, or RFCB slot 11 in RF hub
  14. Feed loose end of cable connections up through the opening at the front of the rear pedestal bridge and let them lay freely on the bridge.

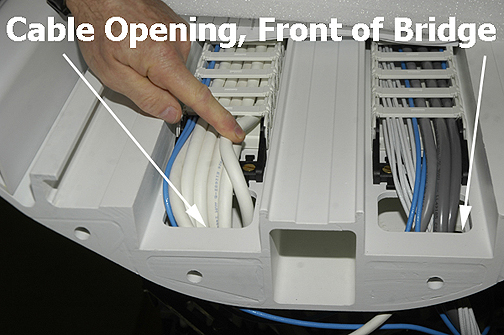

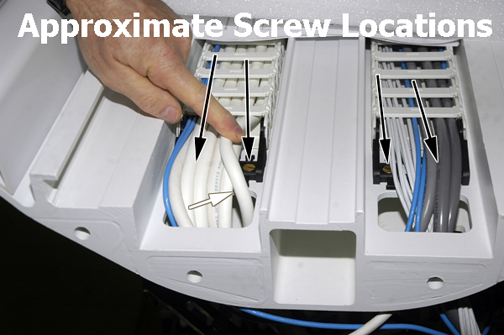

    Figure 8. Cable Track Opening in Bridge
  15. Starting at the rear of the LPCA, pull cable connectors through the cable well of the bridge, under the LPCA, and out of the back of rear pedestal. Allow the cable track to hang freely.
  16. Starting from the front of the LPCA, pull the cable track (the side that includes the baluns) through the opening on the LPCA in a forward direction.

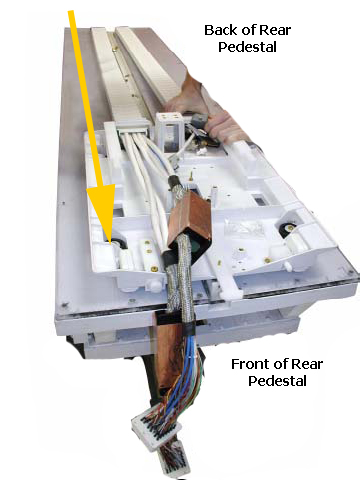

    Figure 9. Removal Path of P1/P2 Cable Track

Removal of A-Port Connector Cable Track

Procedure

  1. Drive the LPCA and cradle into the bore to within 1 foot (30 cm) of the end of the bridge.
  2. At the foot of the table, twist or squeeze the cradle release handle to detach the cradle from the LPCA, and then pull the cradle by hand to the home position so that it is fully retracted back onto the table top.
  3. Undock the table and relocate it away from the magnet.
  4. Perform LOTO on the rear pedestal, and. See the MR Service Safety Manual, PN 5452735.
  5. Perform system shutdown.
  6. Remove the LPCA cover. See Figure 1.
  7. Remove both rear pedestal side covers.
  8. Remove the P1 and/or P2 quick release modules. Use sufficient force to pull the module forward so it slides off the track. See Figure 2.
  9. To create enough space to remove and replace the A-port connector cable track, remove the two slotted brass screws from the bottom of the P2 cable mount bracket as shown in Figure 4 and set it aside.
    Note:

    Do not remove the connector from the cable mount bracket.

  10. Remove the four slotted brass screws from (right side) P2 balun and then set it aside.

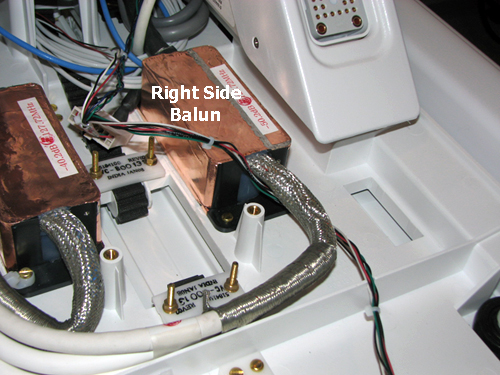

    Figure 10. Right Side Balun
  11. Disconnect the LED and switch harness connector.

    The LED and switch harness are part of the P1-only cable track of DPP receive chain systems.

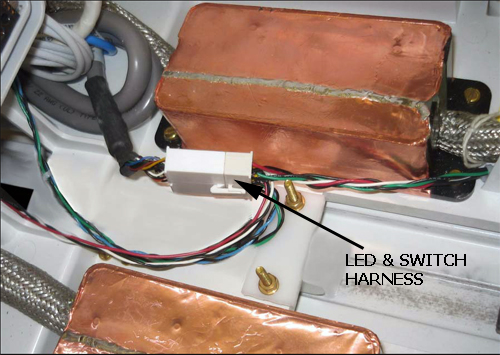

    Figure 11. LED and Switch Harness
  12. Remove the microphone cable from the rear of the microphone.

    The microphone cable is part of the P1-only cable track of DPP receive chain systems.

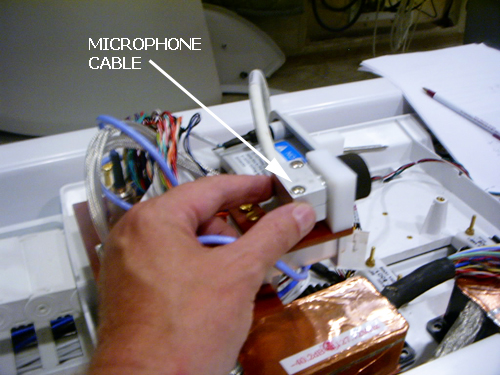

    Figure 12. Microphone Cable
  13. Remove four slotted brass screws from top of LPCA bulkhead plate. Carefully move wires out of the way when removing screws.

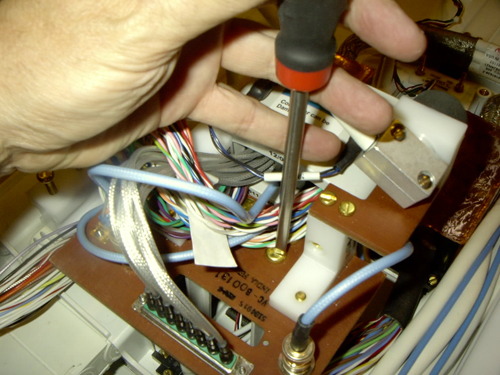

    Figure 13. Top of Bulkhead Plate
  14. On the bottom of the bulkhead plate, remove the J1 connector first. Tilt the plate up to allow easier access to the retaining screws of J1.
  15. With the plate still tilted, remove the remaining connectors (J2, J4, and J5) from the bottom of the plate.
  16. Remove the two slotted head brass screws that secure the cable track lead to the base of the LPCA.

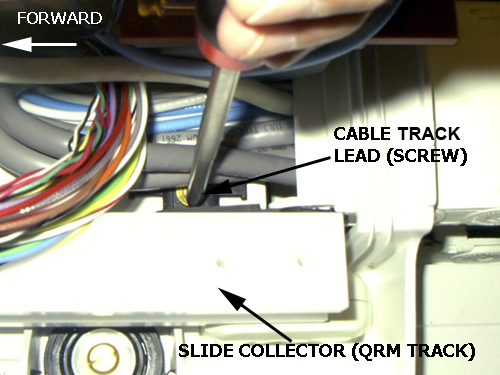

    Figure 14. Cable Track Lead Screws
  17. At the back of the LPCA, pull the cable track through the cable frame (opening) of the LPCA assembly and let it hang freely.
  18. Remove the two standard head screws that secure the cable track lead to the front of the rear pedestal bridge. See Figure 7.
  19. Disconnect all cable connections that feed from the front end of the cable track to points throughout the rear pedestal.
    Table 7. Cable Track Assembly Function and Other End Connection Points
    LPCA Connection Location Other End Position
    PED-LPCA J1Reroute box J8, OR PED-hub slot 1-A
    PED-LPCA J5PED J2 blue cable (on the right side as viewed from the patient table)
    PED-LPCA J3PED J1 gray cable (J1 on the table interface box, LPCA interface)
    PED-LPCA J2PED-hub slot 11 J6 (on RFCB in RF hub)
    MicrophoneJ31 SRI (left side of magnet)
    PED-LPCA J4Dummy load A (at back of rear pedestal, opposite side of table interface module)
  20. Feed the loose end of cable connectors up through the opening at the front of the rear pedestal bridge and let it lay freely on bridge.
    Note:

    Maneuver the J6 connector so that it is level (straight) and angled in a diagonal to pass through the opening in the bridge.

  21. At the front of the rear pedestal bridge, pull the cable track through the cable well until the cable clears the underside of the LPCA.

Installation of New Cable Track

Procedure

  1. Move the replacement cable track into position.
  2. To ensure proper installation and reconnection of cables, reverse the Removal procedures above (Step 19 or Remove Cable Track).
    Note:

    Wire tie the cables out of the way of the quick release module and slide mounting. The quick release module must slide freely without interference.

  3. Slide the quick release module to ensure it is fully inserted and there is no interference from the cable installation.
  4. Apply two drops of Loctite to each screw, then connect the four screws that secure the track assembly to the bridge and LPCA.
    Note:

    Failure to apply Loctite to each cable chain screw before installation may result in screws working loose later and causing spike noise.

  5. Remove LOTO. See the MR Service Safety Manual, PN 5452735.
  6. Start up the software .
  7. Replace the LPCA cover.
  8. Dock the patient table to drive the LPCA to the home position and reattach it to the cradle/patient table. Be sure to dock the electronics on 32-channel systems by pressing the foot pedal.
    Figure 15. Electronics Docking Pedal
