MegaSW3 Troubleshooting

Normally there are three kinds of failure mode related with Megaswitch3:

  1. TPS reset fail with energy too low, or DVMR link not ready to send. Issue1: TPS Reset Failed

  2. Low SNR issue Issue2: Coil SNR is Low

  3. Coil ID not identified or there is a new coil connected. Issue3: System can’t identify Coil ID, report a new coil is connected

Note: Click on Flowchart to see detail procedure.

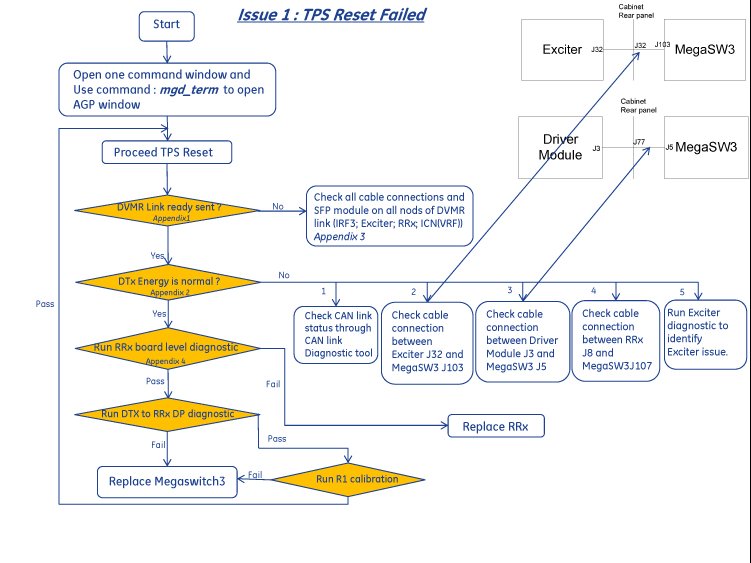

Issue1: TPS Reset Failed

Figure 1. Issue 1
TPS Reset is ok?Appendix 1: Normal display of "DVMR Link Ready Sent”Appendix 2: Normal DTx Max Energy LevelMegaSW3 TroubleshootingDTX to RRX DP16CH Mega Switch for 1.5TRF Calibration DPMegaSW3 Troubleshooting16CH RRxAppendix 3: DVMR Link chain with every nods

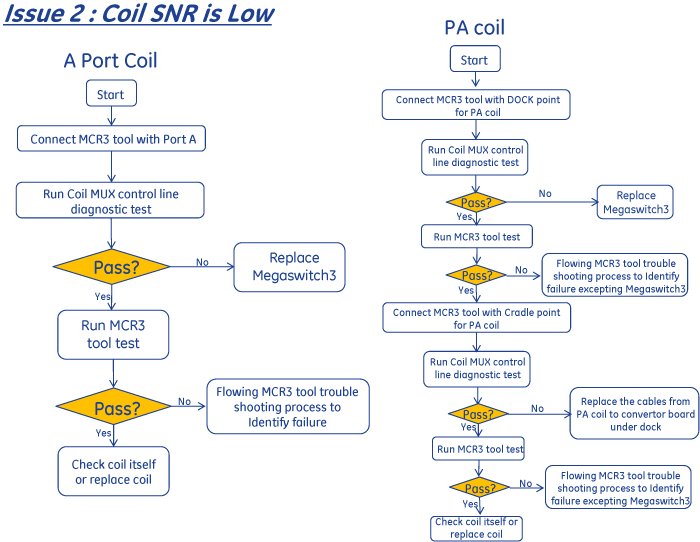

Issue2: Coil SNR is Low

Figure 2. Issue 2
Coil Mux Control Lines16CH Mega Switch for 1.5TMCR III ToolMegaSW3 TroubleshootingCoil Mux Control Lines16CH Mega Switch for 1.5TMCR III ToolMegaSW3 TroubleshootingCoil Mux Control LinesMCR III ToolMegaSW3 Troubleshooting

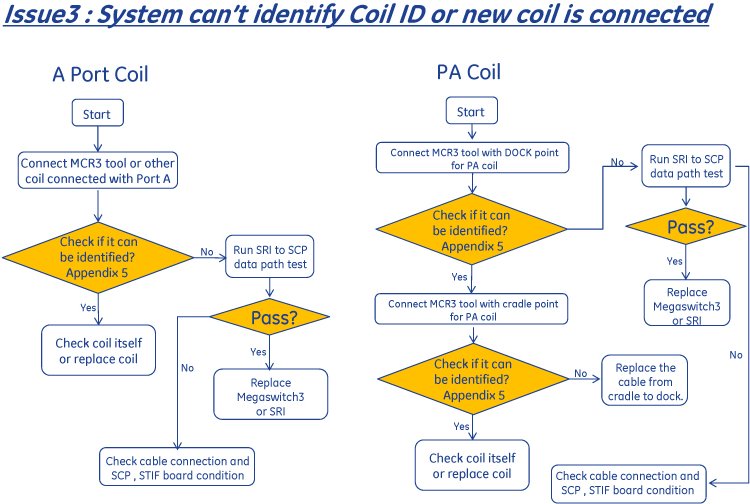

Issue3: System can’t identify Coil ID, report a new coil is connected

Figure 3. Issue 3
Appendix 5: How to confirm if coil is identified or notSRI SCP Loop TestAppendix 5: How to confirm if coil is identified or notSRI SCP Loop TestAppendix 5: How to confirm if coil is identified or not
