RRx Receiver Replacement

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
2	Not Applicable	30 minutes	30 minutes

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Non-magnetic, Philips Screwdriver	1	-	-	-

Table 3 Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
RRx Receiver	1	-	5174169	-

Table 4 Safety

Laser Radiation Hazard!
Invisible laser radiation can be emitted from disconnected fiber-optic cables or connectors.
Do not stare into the beam, point the cable or connector ends at your eyes, or view through optical instruments.

Strong Magnetic Field!
The receiver has no ferrous material and will not be attracted to the magnet, but eddy currents setup by the strong magnetic field interacting with the RRx Receiver can make it very hard for one person to handle.
When removing and or replacing the RRx Receiver on the side of the magnet, ensure the receiver is as far away from the magnet as possible while moving it.

Electrostatic discharge (ESD) can cause permanent damage to electronic components. Observe the following ESD precautions:
- Wear a static wrist strap to ensure that any accumulated electrostatic charge is discharged from your body to the ground.
- Create a common ground for the equipment being worked on by connecting the static-free mat, static wrist strap, and peripheral units to that piece of equipment.

- The SFP optical transceiver is very sensitive to ESD. SFP latent failures can occur, in dry climates or low relative humidity, surpassing their ESD protection.
- Contaminant failures can occur in SFP optics and exposed glass Rx and Tx cable ends. Do not touch the exposed ends on fiber connectors. Leave the dust caps in place until you are ready to install the SFP module. Use the Fiber Optics Cleaning Kit to clean both the SFP and cable end every time they are replaced or swapped from one port to another, or when using a loopback.
- For more information on handling and cleaning the SFP transceiver refer to Fiber Optic Cable Devices Installation and Replacement.

note:

When working with the SFP optical transceiver or SFP Loopback, also observe the following precautions:
- Always use ESD protection when handling the SFP optical transceiver to prevent early failure.
- Always keep a protective cap on unplugged fiber connections.
- The SFP must be shipped in antistatic packaging. Discard any SFP shipped or stored without proper ESD protection.

Power down the Scan Room Power Supply (SRPS) in the Penetration Cabinet.
Remove the magnet side cover to access the RRx Receiver.
Remove the fiber optic cables from the RRx Receiver.

note:
Handle the Fibre Optic cables with care, they are very fragile.
Remove the four (4) screws securing the RRx Receiver to the magnet. See Figure 1.

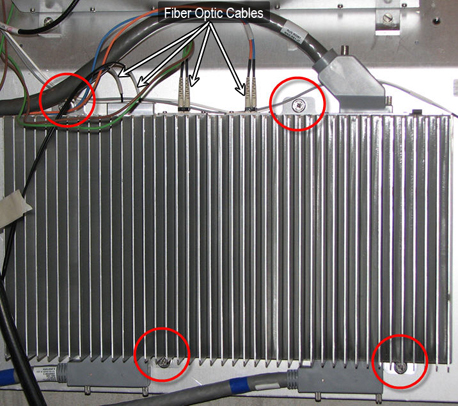

Figure 1. RRx Receiver

Strong Magnetic Field!
The receiver has no ferrous material and will not be attracted to the magnet, but eddy currents setup by the strong magnetic field interacting with the RRx Receiver can make it very hard for one person to handle.
When removing and or replacing the RRx Receiver on the side of the magnet, keeping the receiver as far away from the magnet as possible while moving it.

While carrying the receiver out of the magnet room, make sure to stay as far away from the magnet as possible.

While carrying the new receiver into the magnet room, make sure to stay as far away from the magnet as possible.
Mount the RRx Receiver to the side of the magnet.
Tighten the four (4) screws to secure it to the magnet. See Figure 1.
Re-attach the cables to the RRx Receiver.

Replace the magnet side cover.
