ICN Hard Drive/SSD Replacement (Dell R620 and R630)

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	10 minutes	30 minutes	30 minutes

Table 2. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
ICN Hard Drive	1	Dell R620	See FRU manual.	-
ICN SSD	1	Dell R630	See FRU manual.	-

Table 3. Safety

Warning

Electrocution Hazard!

Dangerous voltages are present throughout the Cabinet when Power is applied.

Follow the lockout and tagout (LOTO) requirements. See the “MR Service Safety Manual,” PN 5452735.

Notice

Potential component damage

Electrostatic discharge (ESD) can cause permanent damage to electronic components.

Observe the following ESD precautions:

Work on a static-free mat.
Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body to the ground.
Create a common ground for the equipment being worked on by connecting the static-free mat, static strap, and peripheral units to that piece of equipment.

About this task

Overview

This procedure documents the processes for the following:

Replacing the hard drive in the Dell R620 ICN
Replacing the SSD in the Dell R630 or R640 ICN

Table 4. ICN Types and Series
ICN Type	Part Number Series
R620 (Gen 5)	5921000x
R630 (Gen 6)	5931000x

Procedure

Notice

This procedure requires that the system is powered up and applications are running. Only the ICN is powered down. Damage to the hard drive/SSD can occur if it is replaced with the ICN powered up.

Notice

Do not cycle ICN power using the power button on the front of the ICN. This could corrupt the ICN hard drive/SSD.

From the Common Service Desktop, turn off the ICN. See ICN On/Off Procedure.

Do not remove the replacement drive from its static sensitive packaging until it is needed.

Press the orange circle on the left front to release the front lever. Pull on the front lever to eject the drive.

Carefully pull out the drive.

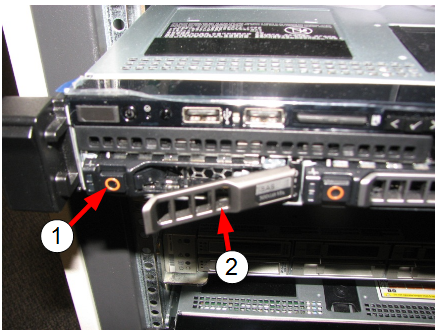

Item	Description
1	`(For R620 and R630)` Orange circle (press to remove hard drive/SSD) `(For R620)` The orange circle on the right opens the gate for access to the solid state device. Do not open during this procedure.
2	Front lever

Notice

Potential component damage

Electrostatic discharge (ESD) can cause permanent damage to electronic components.

Observe the following ESD precautions:

Work on a static-free mat.
Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body to the ground.
Create a common ground for the equipment being worked on by connecting the static-free mat, static strap, and peripheral units to that piece of equipment.

Remove the new drive from the static-sensitive packaging and insert into the ICN.

Close the front lever to properly seat the drive.
Perform a disk wipe on the old hard drive/SSD. See the latest revision of the Disk Management Tool Service Manual, PN 5500610-1EN available from the online documentation library.

Finalization

Turn on the ICN. See ICN On/Off Procedure.
Note:
For the first three or four minutes, the LEDs illuminate only at the rear of the ICN, next to the power cables. After three to four minutes, the ICN fans are audible and the LED on the front of the ICN starts flashing.
Configure the new hard drive/SSD, using VRE Reconfiguration.
Perform Check Scan.
