Setting up Fluke ESA612 Safety Analyzer

About this task

Important: The safety analyzer must be located as far away from the magnet as possible to successfully execute this test. Getting closer to the magnet affects the safety analyzer and alters the tool’s ability to take an accurate measurement.

Procedure

  1. Plug the analyzer into a power source which allows access to the rear end of patient Table.
  2. Note: At facilities with 110-120 VAC, a fault error may appear when you power the meter on. Press F4 OK to clear the error and continue.
    At the patient monitor accessory hook, connect the patient lead cable and the cardiac lead set at the ECG connector.

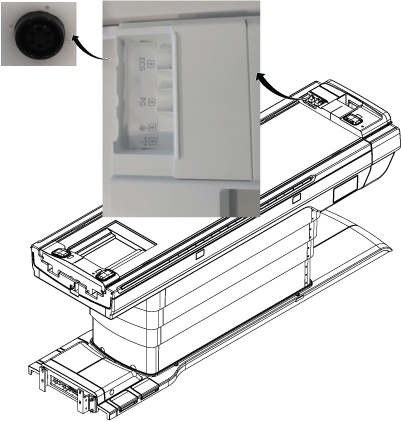

    Figure 1. ECG connector
  3. Attach the Fluke BJ2ECG Input Jack Adapter to the Fluke ESA612 Safety Analyzer.
  4. Connect the ECG leads to the Fluke BJ2ECG Input Jack Adapter, matching:
    • Right arm (RA) lead to RA input jack adapter
    • Left leg (LL) lead to LL input jack adapter
    • Left arm (LA) lead to LA input jack adapter
    • Right leg (RL) lead to RL input jack adapter

    The fifth input jack adapter is not used for these tests.

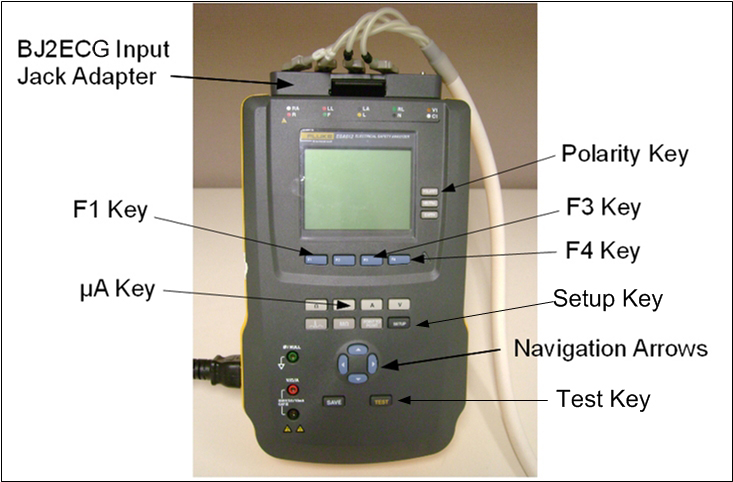

    Figure 2. Fluke ESA612 Safety Analyzer
